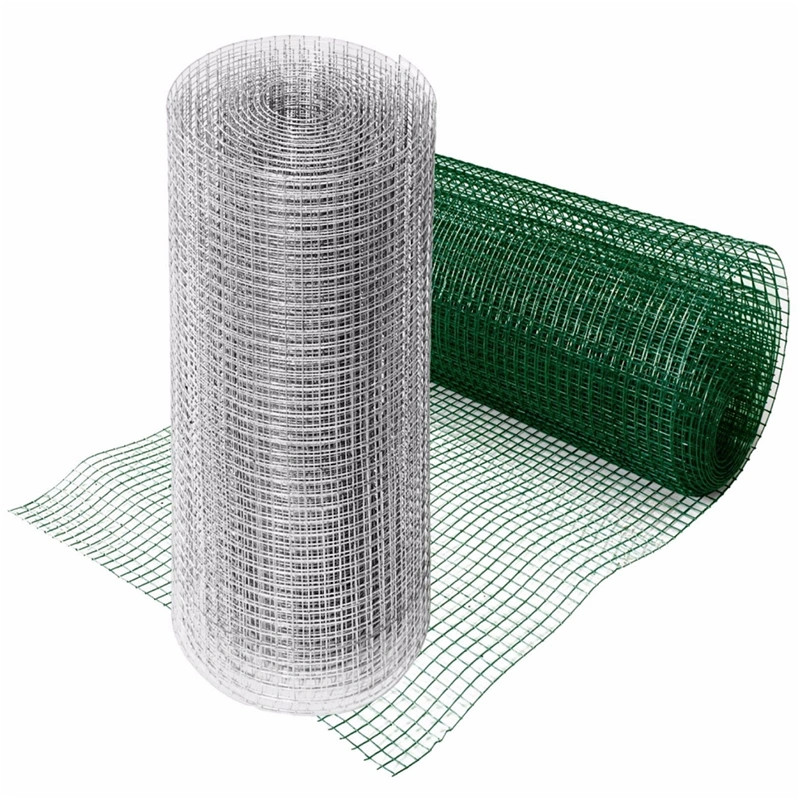

Welded wire mesh is a product commonly used in agriculture (for poultry fencing) and construction. This type of welded wire mesh is typically made from high-quality iron wire or stainless steel wire that has been welded to form a roll with square-shaped openings. To enable the welded wire mesh to be used outdoors for extended periods,people usually protect the welded wire mesh by galvanizing or applying a PVC coating to increase its lifespan.
Specification
The welded wire mesh are made of high quality low carbon steel wire or stainless steel wire with square hole.
High-strength raw materials and anti-corrosion galvanized treatment(or PVC coated manufacturing process) make the welded wire mesh highly suitable for outdoor use. People commonly use the welded wire mesh as a screening mesh or for enclosing poultry or protecting land.
 |  |
Features:
Corrosion Resistance: The PVC coating provides excellent protection against corrosion and oxidation, which can be particularly beneficial in coastal areas or other environments with high levels of salt in the air.
Longevity: The combination of high-quality steel and PVC coating ensures that the PVC coated welded wire mesh has a long lifespan, even when exposed to harsh environmental conditions.
Application:
Protective Screens: The coating makes the PVC coated welded wire mesh an excellent material for protective screens in industrial environments, as it can withstand harsh conditions over long periods.
Animal Enclosures: PVC coated welded wire mesh is frequently used in the creation of cages for pets and livestock, aviaries, and fish traps. The PVC coating is mildew-resistant, making it safe for animal use.
Size chart
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
