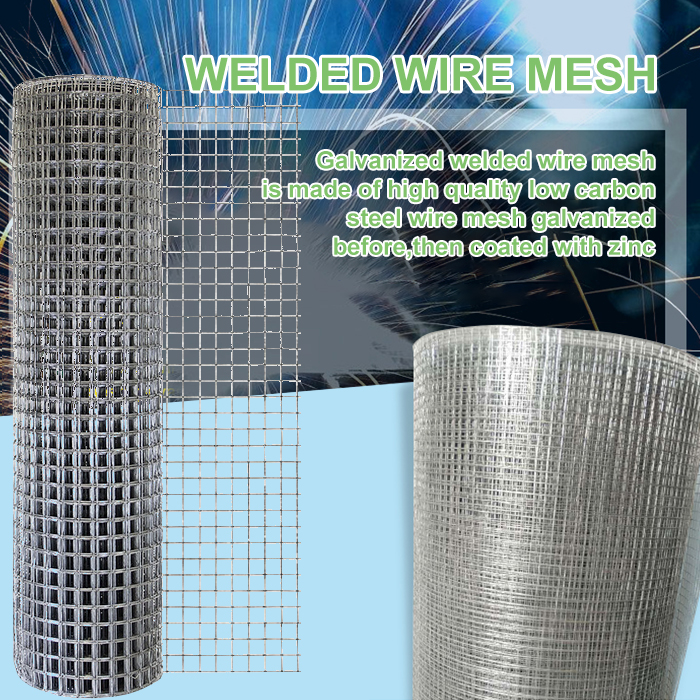

Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification
The welded wire mesh are made of high quality iron wire with galvanized manufacturing process.
Galvanized welded wire mesh have strong welded points and uniform square wire meshes.
High strength and durability: Galvanized welded wire mesh is made by welding the intersection points of the galvanized iron wires, which creates a strong bond between the iron wires and increases the strength and durability of the welded wire mesh.
Easy installation: Galvanized welded wire mesh is easy to install and can be attached to structures using screws, bolts, or other fasteners. Galvanized welded wire mesh can also be cut and shaped to fit specific dimensions and configurations.
Versatile design options: Galvanized welded wire mesh can be designed in a variety of sizes, shapes, and configurations to meet specific application requirements. Galvanized welded wire mesh is available in various wire gauges and mesh sizes to suit different applications.
Used for construction: Galvanized welded wire mesh is commonly used in construction projects such as concrete reinforcement, staircase railings, and balcony guards. Galvanized welded wire mesh provides strength and durability to the structures while also offering safety and security.

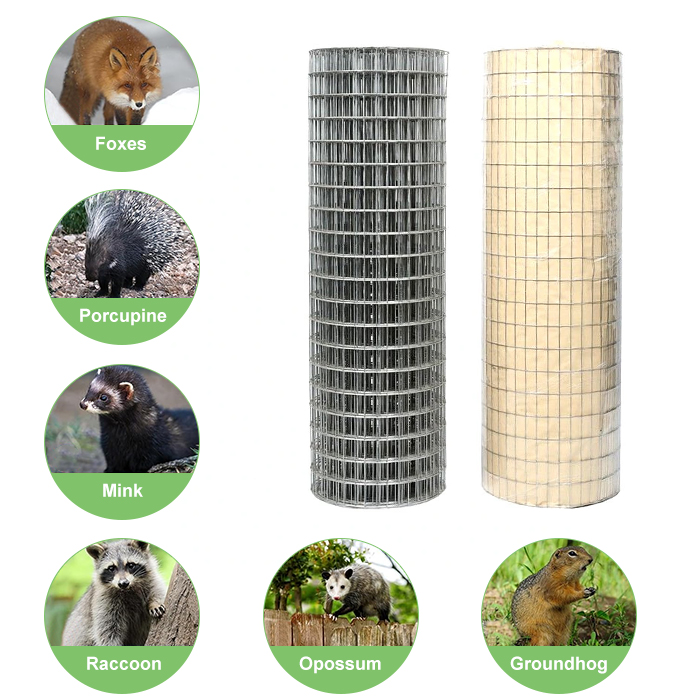

Used as fencing: Galvanized welded wire mesh is an ideal material for creating fences for residential, commercial, and industrial properties. Galvanized welded wire mesh can be used to create perimeter fencing, animal enclosures, and security barriers.
Used for agriculture: In agriculture, galvanized welded wire mesh is used to create animal pens, chicken coops, and rabbit cages. Galvanized welded wire mesh can also be used to create greenhouses and support structures for plants.
 |  |
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
