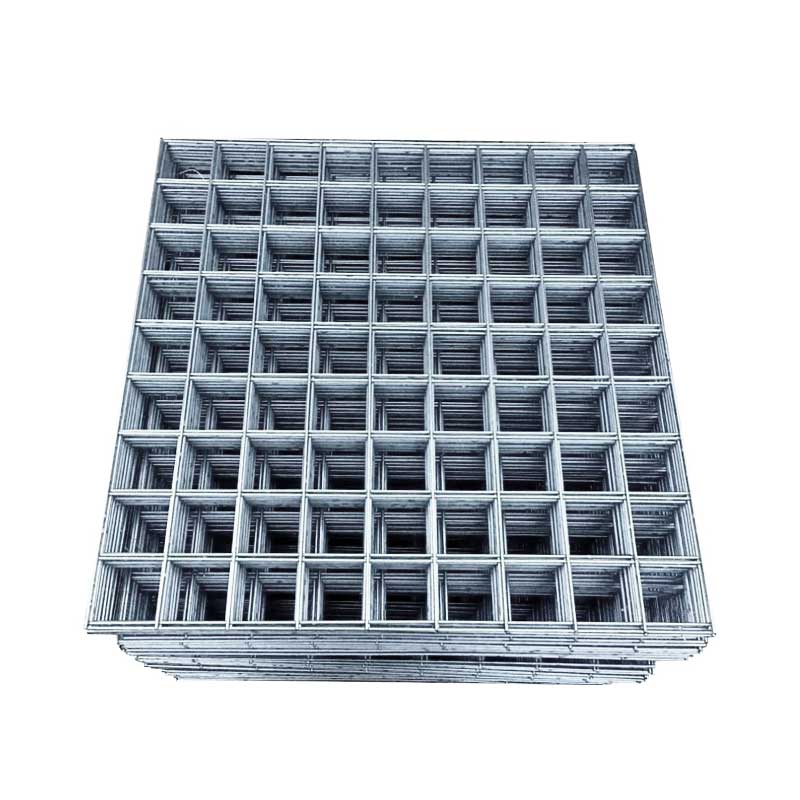

Galvanized Welded Wire Mesh Panel is a type of wire mesh that is made by welding low carbon steel wires together at each intersection, creating a strong and sturdy structure. The galvanization process gives the protective zinc coating applied to the welded wire mesh to prevent rust and corrosion, which significantly enhances its durability and longevity.
Its panel form means the welded wire mesh panels are often flat and rigid, rather than roll-like. The welded wire mesh panels are commonly used in construction, agriculture, horticulture, and industrial sectors for purposes such as fencing, cages, partitions, grills, and grates due to their strength and resistance to harsh conditions.
Specification
Galvanized welded wire mesh panels are a type of wire mesh that is made from low carbon steel wire or stainless steel wire. The galvanized welded wire mesh panel is welded by an automatic welding machinery. After the welding process, a layer of zinc coating is applied to the surface of the galvanized welded wire mesh panel to prevent it from rusting. This process is called galvanization. Sunshine Fencing is a leading provider of China welded wire mesh panel solutions, offering a wide range of products including China hot dip galvanized welded wire mesh from top China galvanized welded wire mesh factories. Our galvanized steel mesh panels are crafted for durability and are available in various sizes to meet your specific needs. We also supply China galvanised weld mesh panels, ensuring high-quality and long-lasting performance. Whether you need China welded wire mesh or galvanized welded wire mesh panels, our products are designed to meet the highest standards in the industry.
The galvanized welded wire mesh panels are typically used in various industries due to the durability and robustness. The galvanized welded wire mesh panels are often used in agricultural, industrial, transportation, horticultural and food procuring sectors. The galvanized welded wire mesh panels are also found in mines, gardening, machine protection and other constructions due to their high resistance to weathering, corrosion and even aggressive chemicals.
The galvanized welded wire mesh panels come in various sizes,and can be cut to specific sizes to meet the different needs.
SUNSHINE MESH is capable of providing wire mesh panels in a wide range of sizes. Among them, the particularly popular sizes are:
4′ x 8′ (1220mm x 2440mm)
6′ x 12′ (1830mm x 3660mm)
6′ x 3′ (1830mm x 915mm)
6′ x 4′ (1830mm x 1220mm)
7′ x 12′ (2140mm x 3660mm)
| Mesh Aperture & Wire Gauge | 4’ x 8’ 1220mm x 2440mm | 6’ x 12’ 1830mm x 3600mm | 6’ x 4’ 1830mm x 1220mm | 6’ x 3’ 1830mm x 915mm | 7’ x 12’ 2140mm x 3600mm | Approx. Metric Equivalent (mm)* |
|---|---|---|---|---|---|---|
| 1" x 1" x 12g | 8.740 | 19.550 | 4.940 | 6.570 | 22.790 | 25 x 25 x 2.50 |
| 2" x 1" x 12g | 6.590 | - | - | - | - | 50 x 25 x 2.50 |
| 2" x 2" x 12g | 4.440 | 9.880 | 2.520 | - | - | 50 x 50 x 2.50 |
| 3" x ½" x 12g | 10.180 | 22.780 | - | - | - | 75 x 13 x 2.50 |
| 3" x 1" x 12g | 5.870 | - | - | - | - | 75 x 25 x 2.50 |
| 4" x 1" x 12g | 5.510 | - | - | - | - | 100 x 25 x 2.50 |
| 1" x 1" x 10g | 12.950 | 28.980 | 7.330 | 9.730 | 33.770 | 25 x 25 x 3.00 |
| 1½"x1½"x10g | 8.700 | - | - | - | - | 38 x 38 x 3.00 |
| 2" x 1" x 10g | 9.770 | 21.810 | - | - | - | 50 x 25 x 3.00 |
| 2" x 2" x 10g | 6.580 | 14.640 | 3.740 | 4.950 | 22.620 | 50 x 50 x 3.00 |
| 3" x ½" x 10g | 15.090 | 33.770 | 8.520 | - | - | 75 x 13 x 3.00 |
| 3" x 1" x 10g | 8.700 | 19.420 | - | - | - | 75 x 25 x 3.00 |
| 3" x 3" x 10g | 4.450 | 9.860 | 4.930 | - | - | 75 x 75 x 3.00 |
| 4" x 4" x 10g | 3.390 | - | - | - | - | 100 x 100 x 3.00 |
| 1" x 1" x 8g | 22.120 | - | - | - | - | 25 x 25 x 3.90 |
| 2" x 1" x 8g | 16.680 | 37.240 | 9.450 | 12.540 | 43.380 | 40 x 25 x 3.90 |
| 2" x 2" x 8g | 11.230 | 24.990 | 6.390 | 8.450 | 29.100 | 50 x 50 x 3.90 |
| 3" x ½" x 8g | 25.760 | 57.660 | - | - | - | 75 x 13 x 3.90 |
| 3" x 3" x 8g | 7.600 | 16.830 | - | - | - | 75 x 75 x 3.90 |
| 2" x 2" x 6g | 16.140 | 35.910 | 9.180 | 12.150 | 41.800 | 50 x 50 x 4.90 |
| 3" x 3" x 6g | 10.920 | 24.180 | 6.240 | 8.230 | 28.130 | 75 x 75 x 4.75 |
Packing:
Plastic film and metal pallet packaging methods, and can also customize packaging methods according to your requirements.
Sunshine Fencing is a leading wire mesh manufacturer based in Shijiazhuang City, China, specializing in a broad range of wire mesh solutions. With over 20 years of experience, we are renowned for our innovative approach and high-quality products that cater to industries such as agriculture, construction, mining, and packaging. Our state-of-the-art factory, spanning 50,000 square meters, is equipped with modern technology and advanced equipment. We proudly export to over 100 countries, with annual sales exceeding $60 million. Sunshine Fencing provides over 200 wire mesh solutions and is dedicated to delivering dependable and competitive products in the iron and steel wire manufacturing sector. Sunshine Fencing has supplied many clients over the world. Based on the detailed apllications, Sunshine Fencing provide you on-demand hexagonal wire mesh manufacturing. You can consult our wire experts for more detailed solutions.
