Welded wire mesh, also known as welded mesh or welded mesh fence, is a type of wire mesh that is manufactured by welding the intersections of the iron wires. This process creates a strong and durable mesh that is resistant to tearing and fraying. Welded wire mesh comes in various materials such as iron welded wire mesh, galvanized low carbon steel welded wire mesh.
Specification
One of the main features of welded wire mesh is its strength and durability. The welding process ensures that the iron wires are securely connected at each intersection, which makes the welded wire mesh much stronger than traditional woven wire mesh.
Another feature of welded wire mesh is its versatility. Welded wire mesh can be made in a wide range of sizes, shapes, and dimensions to suit different applications. The iron welded wire mesh can be cut and shaped to fit any size or shape, making the iron welded wire mesh ideal for use in custom designs. Additionally, welded wire mesh can be coated with a variety of materials to enhance its corrosion resistance and appearance.
Welded wire mesh has numerous uses in both industrial and residential settings. In industrial settings, welded wire mesh is commonly used as a filter or screen to separate solids from liquids or gases.
Welded wire mesh is also used in conveyor belts, walkways, and stair treads due to its strength and durability.
In construction, welded wire mesh is used as reinforcement in concrete structures, such as floors, walls, and foundations.
In residential settings, welded wire mesh is commonly used as a fence or barrier to keep pets and children safe.
Welded wire mesh is also used in garden trellises, fruit cages, and chicken runs. The welded wire mesh is strong enough to keep animals and pests out while still allowing air and light to pass through.

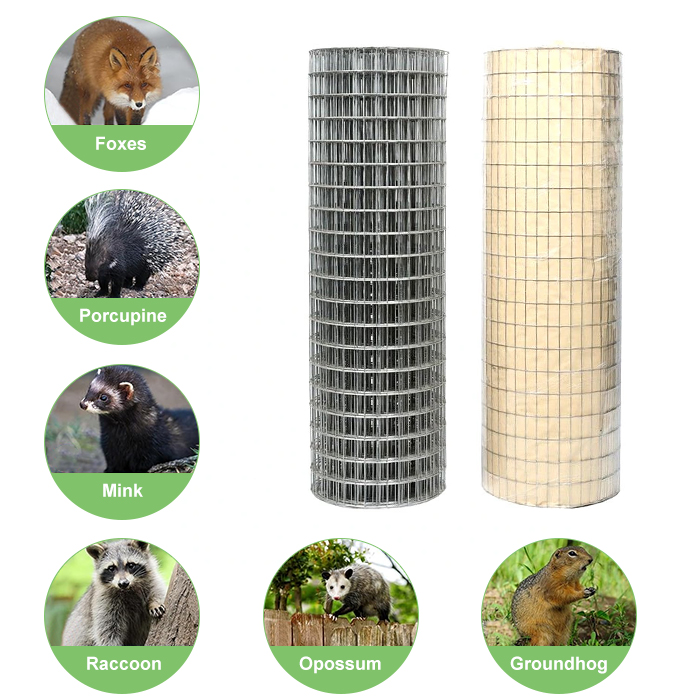

One of the most common uses of welded wire mesh is in animal enclosures. The welded wire mesh provides a safe and secure environment for animals while still allowing them to see out. Welded wire mesh is commonly used in zoos, wildlife parks, and animal shelters to create enclosures for a variety of animals, including birds, and reptiles.
The strength, durability, and ability to be cut and shaped make the welded wire mesh ideal for use in a wide range of applications. Whether you need a fence for your pet or a filter for your industrial process, welded wire mesh is an excellent choice.
 |  |
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
