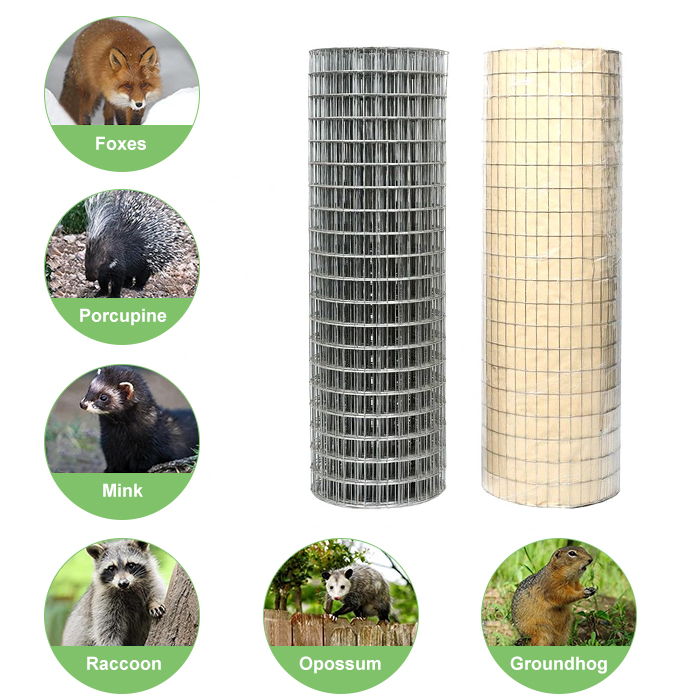

Welded wire mesh, often referred to as welded wire fabric, is a versatile construction material consisting of low carbon steel wires welded together at each crossing point to form a strong and stable mesh structure. The welded wire fence is characterised by high tensile strength, durability and corrosion resistance, making the welded mesh fencing suitable for various applications such as structural reinforcement, fencing, security barriers and shelving. The welded fence mesh is available in a variety of finishes including galvanised,and PVC coated to meet specific requirements and provide additional protection from the elements.
Specification

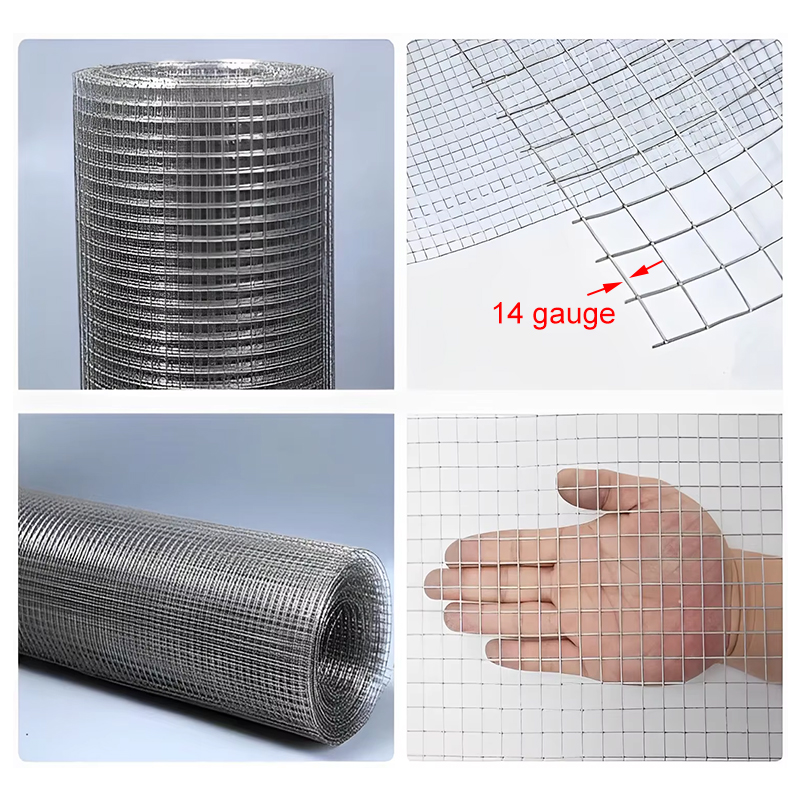

Small square hole welded wire mesh is a type of metal mesh fence that consists of small, square-shaped holes. The small hole welded wire mesh is typically made from low carbon steel wire and is welded together at the intersections of the wires to create a strong and durable mesh.
What is the meaning of "small hole"?
These holes are created by the spaces between the intersecting iron wires that form the grid pattern of the welded wire mesh. The size of these small sqaure holes can vary depending on the specifications of the welded wire mesh, which are determined by the wire diameter and the distance between the iron wires.
Aperature Size: It usually indicates that the welded wire mesh has a tighter weave with smaller gaps between the iron wires compared to welded wire meshes with larger holes.The popular small square hole welded wire mesh:
3mm×3mm welded wire mesh,4mm×4mm welded wire mesh,6mm×6mm welded wire mesh,10mm×10mm welded wire mesh.
Wire Gauge: The gauge or thickness of the wire used in the welded wire mesh affects the size of the holes. Thinner wires can be placed closer together, resulting in smaller holes.
Wire Spacing: The distance between the iron wires (both horizontally and vertically) determines the size of the holes. Smaller spacing will result in smaller holes.
Welded wire mesh sizes
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
Strength and Durability: The welding process creates a rigid structure that can withstand heavy loads and external forces, making the galvanized welded wire mesh suitable for demanding applications.
Versatility: The galvanized welded wire mesh can be adapted to a wide range of applications, from construction to agriculture and industrial use.
Corrosion Resistance: Galvanized welded wire mesh offers excellent resistance to rust and corrosion, making the galvanized welded wire mesh suitable for outdoor use.
Ease of Installation: Welded wire mesh is easy to install, reducing labor intensity and project timelines.
 |  |
