Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a grid-like structure. The welded wire mesh panels offer excellent strength, durability, and versatility, making the welded wire panels suitable for a wide range of applications. The welded wire mesh panels are commonly used in industrial, commercial, and residential settings for functions such as filtering, reinforcement, and enclosures.
Specification
Rectangular hole welded wire panels are a type of welded wire mesh that features evenly spaced rectangular openings(for example,1 inch x2 inch welded wire panels,2 inch x 4 inch welded wire fence panels) providing a consistent and robust structure. The welded wire mesh panels are created by welding horizontal and vertical low carbon steel wires at the intersections, resulting in a strong and stable grid. The welded wire mesh panels are widely used in construction, agriculture, and security due to their durability, strength, and versatility.
 |  |

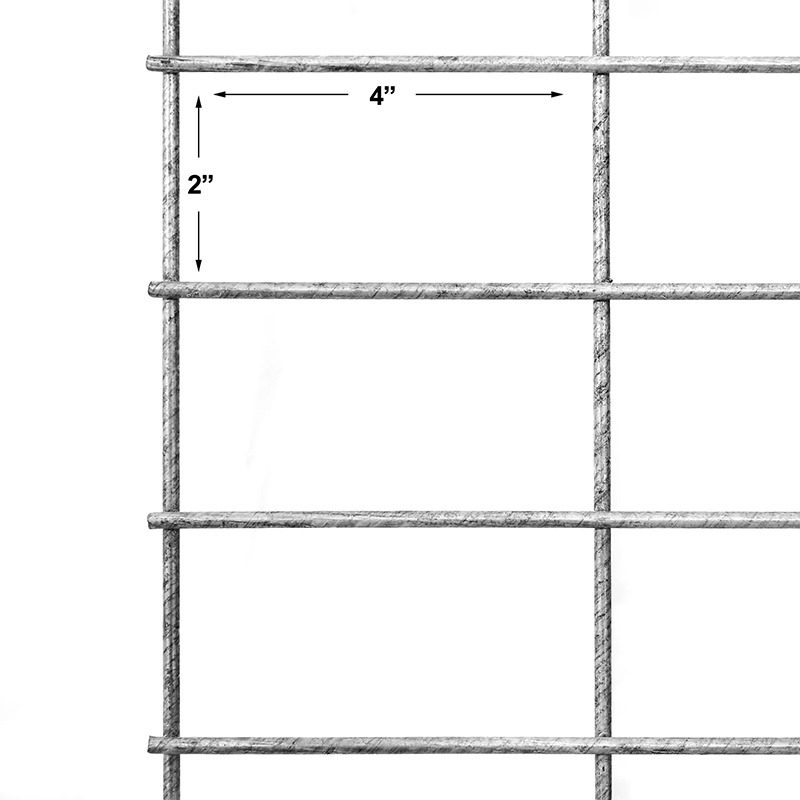

The widely used rectangular hole galvanized welded wire mesh panels are:1x2 welded wire panels,2 x 4 welded wire fence panels
The wire diameter of the galvanized welded wire mesh range BWG4-BWG14.
Galvanized welded fence panels size chart
Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. | ||
Strong and Durable: The welding process creates a strong bond between the iron wires, making the panels highly durable and resistant to damage.
Versatile: Welded wire mesh panels can be made in a variety of sizes, shapes, and configurations to suit different applications.
Corrosion Resistant: Many welded wire mesh panels are made from low carbon steel wire and undergone galvanized manufacturing process, making the welded metal fence panels suitable for use in harsh environments.
Easy to Install: Welded wire mesh panels can be easily installed using bolts, clamps, or welding, depending on the application.
Construction: Welded wire mesh panels are commonly used in construction as reinforcement for concrete structures, such as floors, walls, and ceilings. The welded fence panels provide strength and stability while allowing for the flow of air and water.
Fencing: Welded wire mesh panels are often used for fencing applications, such as perimeter fencing, animal enclosures, and security fencing. The welded wire mesh panels are strong, durable, and difficult to climb or cut through.
Industrial Applications: Welded wire mesh panels are used in various industrial settings, such as conveyor belts, machine guards, and filter screens. The rectangular welded wire fence panels provide a sturdy and reliable solution for handling and processing materials.
