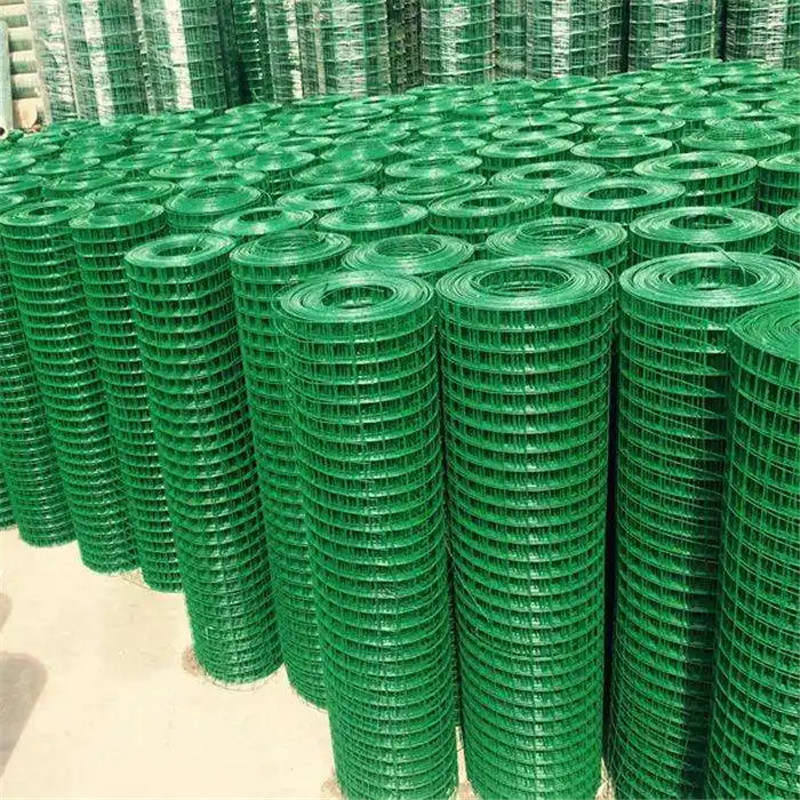

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
PVC coated wire mesh is an excellent choice for a wide range of applications, offering durability, aesthetic appeal, and low maintenance. Whether for construction, agriculture, landscaping, or residential use, this versatile material provides a reliable solution.
Material: Black wire or electro galvanized wire with PVC coating, stainless steel wire
Characteristic: galvanized after welded or galvanized before welded; Anti-corrosion, Anti-aging, Anti-drying.The structure is sturdy and the surface is flat.
Color: silvery white or according to customer's request.
Packing: PE absorbent plastics or added pallet,small roll can be packed in carton.
Tensile strength: 350-650 N/mm²
Manufacturing process: the iron wire is firstly welded, and then galvanized or PVC coated.
Surface treatment: Electro galvanized welded wire mesh, hot-dipped galvanized welded wire mesh, PVC coated welded wire mesh, stainless steel welded wire mesh.
Product use: widely used in industry, agriculture, aquaculture, construction, transportation, mining and other aspects.
Such as machine protective cover, animal fence, flower and wood enclosure, window guard, channel use;
Fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations.
Size chart of PVC coated welded wire mesh
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
