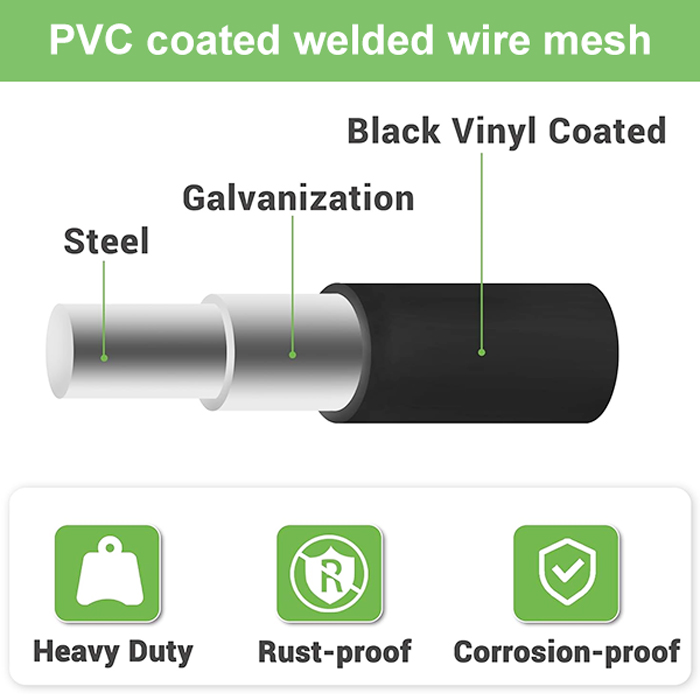

PVC coated welded wire mesh is a type of protective fencing widely used in the construction industry, agriculture, and other outdoor projects. This PVC coated welded wire mesh is made from high-quality low carbon steel wire, providing excellent strength and load-bearing capacity. The PVC coating offers a layer of protection for the welded wire mesh, making the PVC coated welded wire mesh less susceptible to rust when used outdoors. Additionally, the PVC coating comes in a variety of colors, such as black and green, allowing people to choose the appropriate color based on their environment.
Specification
| Product Name: | PVC Coated Welded Wire Mesh |
| Material: | Black Iron Wire, Galvanized Iron Wire, Stainless Wire |
| Color: | Green, Blue, Black, etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square |
| Welding Type: | PVC Coated Before/After Welding |
| Packing: | We use wooden and steel packing to ensure the quality of our products. The size of the container depends on the size of the goods. |
Features:
Weather Resistance: The PVC coating protects the PVC coated welded wire mesh from harsh weather conditions, such as rain, snow, and UV radiation. This makes PVC coated welded wire mesh ideal for outdoor use or in environments where exposure to moisture and sunlight is likely.
Corrosion Resistance: The PVC coating provides excellent protection against corrosion and oxidation, which can be particularly beneficial in coastal areas or other environments with high levels of salt in the air.
Longevity: The combination of high-quality steel and PVC coating ensures that the PVC coated welded wire mesh has a long lifespan, even when exposed to harsh environmental conditions.
 |  |
Applications:
Decorative Fences: PVC coated welded wire mesh, due to its color variety, is often used for decorative fencing around houses, gardens, parks, and other recreational areas.
Protective Screens: The coating makes the PVC coated welded wire mesh an excellent material for protective screens in industrial environments, as it can withstand harsh conditions over long periods.
Animal Enclosures: PVC coated welded wire mesh is frequently used in the creation of cages for pets and livestock, aviaries, and fish traps. The PVC coating is mildew-resistant, making it safe for animal use.
Size chart
| Mesh | Mesh | Cardinal Number | Before /After PVC Coated MM/MM---MM/MM |
| MM | Inch | ||
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45/0.75--0.65/1.00 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.45/0.75--0.65/1.00 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.45/0.75--0.65/1.00 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50/0.80--1.00/1.40 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.50/0.80--1.00/1.40 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.55/0.85--1.60/2.00 |
| 25.4X25.4 | 1"X1" | 1 | 0.65/1.00--1.60/2.00 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00/1.40--1.80/2.30 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20/1.60--2.00/2.50 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70/2.20--2.50/3.00 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70/2.20--2.50/3.00 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65/1.00--1.20/1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20/1.60--2.00/2.50 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.60/2.10--2.20/2.70 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70/2.20--2.50/3.00 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70/2.20--2.50/3.00 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70/2.20--2.50/3.00 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70/2.20--2.50/3.00 |
