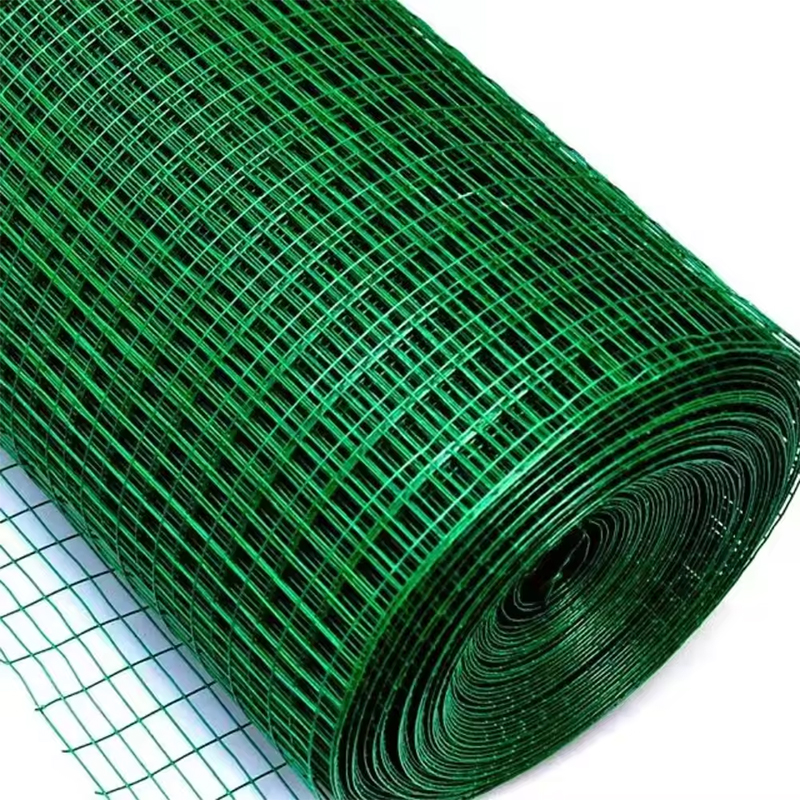

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
PVC coated welded wire mesh is constructed using low carbon steel wire as the raw material. The Q195/Q235Q iron wires are welded at their intersections to form a robust and stable grid. After welding, the welded wire mesh undergoes a surface treatment that includes galvanizing before or after welding, and then it is coated with PVC to provide additional protection against the elements.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
Size chart of PVC coated welded wire mesh
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |

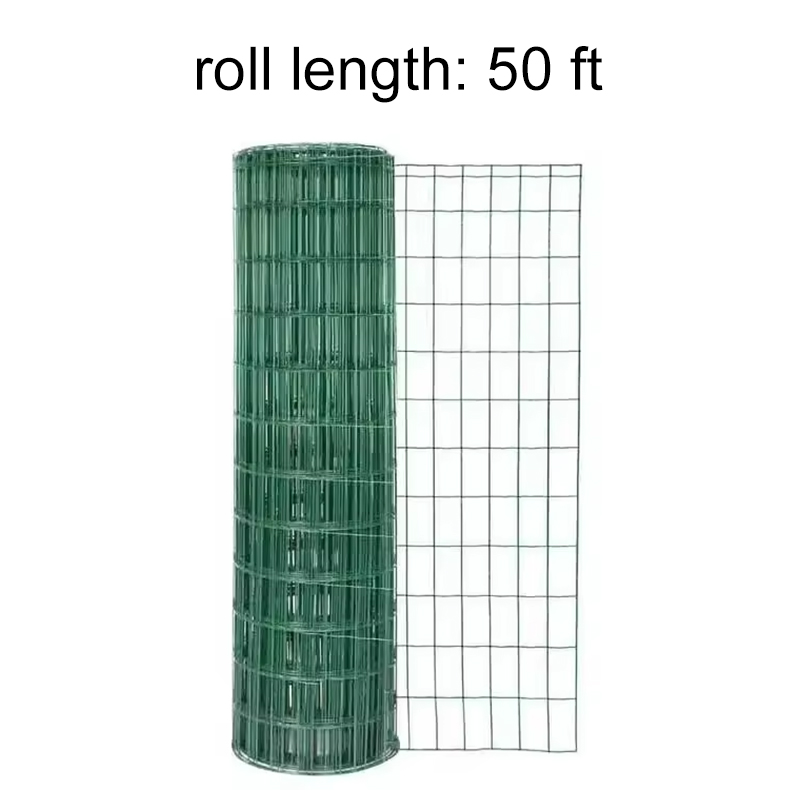

Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Corrosion Resistance: The PVC coating protects the PVC coated welded wire mesh from rust and corrosion, making the vinyl coated welded wire mesh ideal for long-term outdoor use.
Durability: The PVC coated welded wire construction offers strength and stability, while the PVC coating adds extra protection against environmental factors.
Aesthetic Appeal: The PVC coating comes in various colors, allowing the vinyl coated welded wire mesh to be both functional and visually pleasing.
Customizability: Available in different sizes, styles, and colors to meet specific project requirements.
Fencing and Security Barriers: Due to its strength and durability, the PVC coated welded wire mesh is used for fencing and security barriers.
Bird Netting and Animal Enclosures: Its impact resistance makes the PVC coated welded wire mesh suitable for bird netting and animal enclosures to prevent escapes.
Landscaping and Decorative Fencing: The aesthetically pleasing finish makes the PVC coated welded wire mesh ideal for landscaping and decorative fencing applications.
