White green and black plastic coated welded wire mesh

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.

Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.


Specification

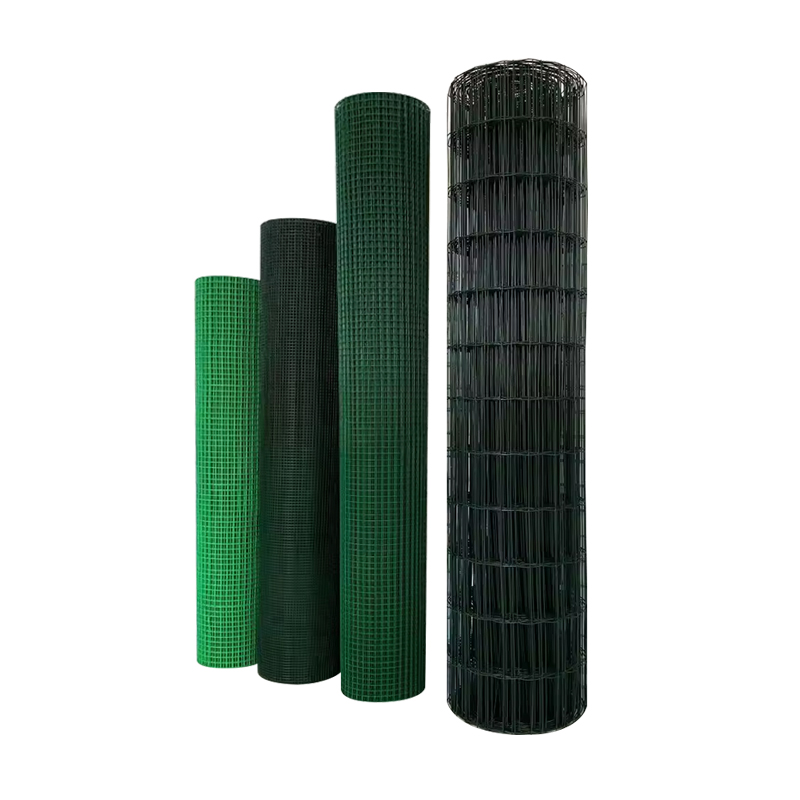

White green and black plastic coated welded wire mesh

White, green, and black plastic coated welded wire mesh is a durable and attractive fencing option. Made from low carbon steel wire and coated with PVC, the PVC coated welded wire mesh offers corrosion resistance and weather protection. The smooth finish is easy to clean and maintains its quality in extreme temperatures. Available in various mesh sizes and gauges, the PVC coated welded wire mesh's ideal for garden fencing, animal enclosures, and industrial applications. The colored coating allows the PVC coated welded wire mesh to blend seamlessly into different environments, providing both security and visual appeal.

Material:Q195/Q235 galvanized iron wire
Color:Green, Blue, Black, White,etc
Wire Gauge:0.5-3mm
Surface Treatment:PVC Coated
Hole Shape:Square or rectangular
Welding Type:PVC Coated Before/After Welding
White green and black plastic coated welded wire meshWhite green and black plastic coated welded wire mesh

Size chart of black PVC coated welded wire mesh


Mesh size
Wire Dia before & after PVC coat
MM
Inch
Before coat
After coat
6.4
1/4 inch
0.56 - 0.71
0.90 - 1.05
9.5
3/8 inch
0.64 - 1.07
1.00 - 1.52
12.7
1/2 inch
0.71 - 1.65
1.10 - 2.20
15.9
5/8 inch
0.81 - 1.65
1.22 - 2.30
19.1
3/4 inch
0.81 - 1.65
1.24 - 2.40
25.4 × 12.7
1 × 1/2 inch
0.81 - 1.65
1.24 - 2.42
25.4
1 inch
0.81 - 2.11
1.28 - 2.90
38.1
1½ inch
1.07 - 2.11
1.57 - 2.92
25.4 × 50.8
1 × 2 inch
1.47 - 2.11
2.00 - 2.95
50.8
2 inch
1.65 - 2.77
2.20 - 3.61
76.2
3 inch
1.90 - 3.50
2.50 - 4.36
101.6
4 inch
2.20 - 4.00
2.85 - 4.88
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc.

Features

Durability: The welded construction combined with the PVC coating results in a long-lasting mesh that can withstand heavy use and mechanical stress. The PVC coating provides an additional layer of protection against rust and corrosion, making the PVC coated welded wire mesh ideal for outdoor and wet environments.

Corrosion Resistance: The PVC coating protects the PVC coated welded wire mesh from moisture, chemicals, and other environmental elements, significantly enhancing its resistance to rust and corrosion.

Visual Appeal: Available in various colors, the PVC coating allows for aesthetic customization, making the PVC coated welded wire mesh suitable for decorative applications as well as functional ones.

Safety: The PVC coating reduces the risk of injury from sharp edges or protruding wires, making the PVC coated welded wire mesh safer for use in public areas.

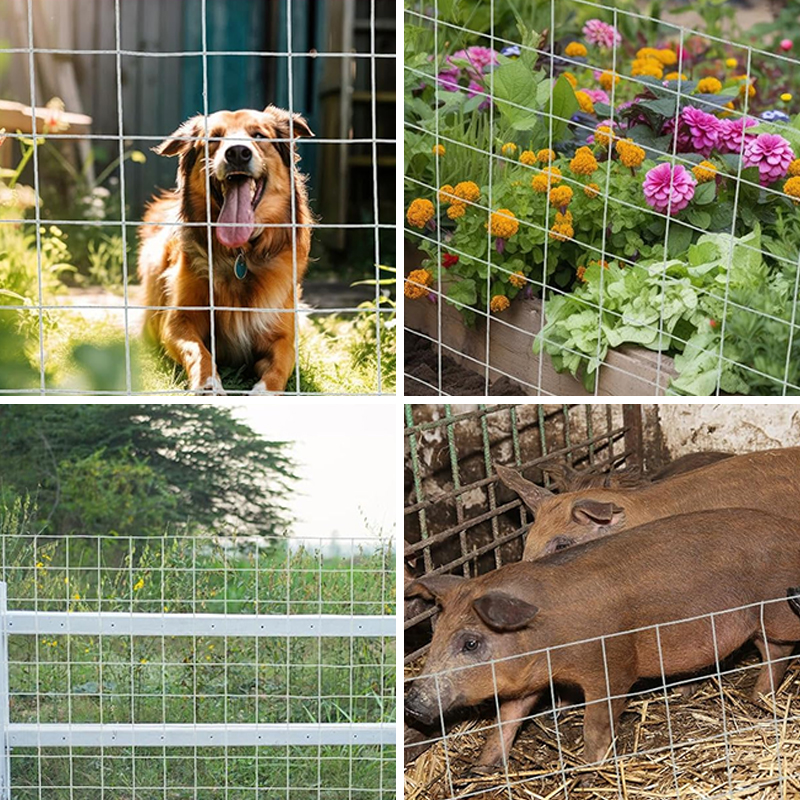

Application

Fencing: Widely used for security fencing in both commercial and residential properties, as well as parks and playgrounds. The PVC coating adds an extra layer of protection against physical damage, making the PVC coated welded wire mesh ideal for high-traffic areas.

Animal Enclosures: Commonly used in farms and pet facilities to create secure cages and enclosures, benefiting from its strength and corrosion resistance.

Agricultural Applications: Utilized in various agricultural settings, including as fencing for livestock and garden protection.

Decorative Uses: Can be employed in home and garden décor, such as trellises, garden edging, and decorative screens, adding both functionality and visual appeal.
