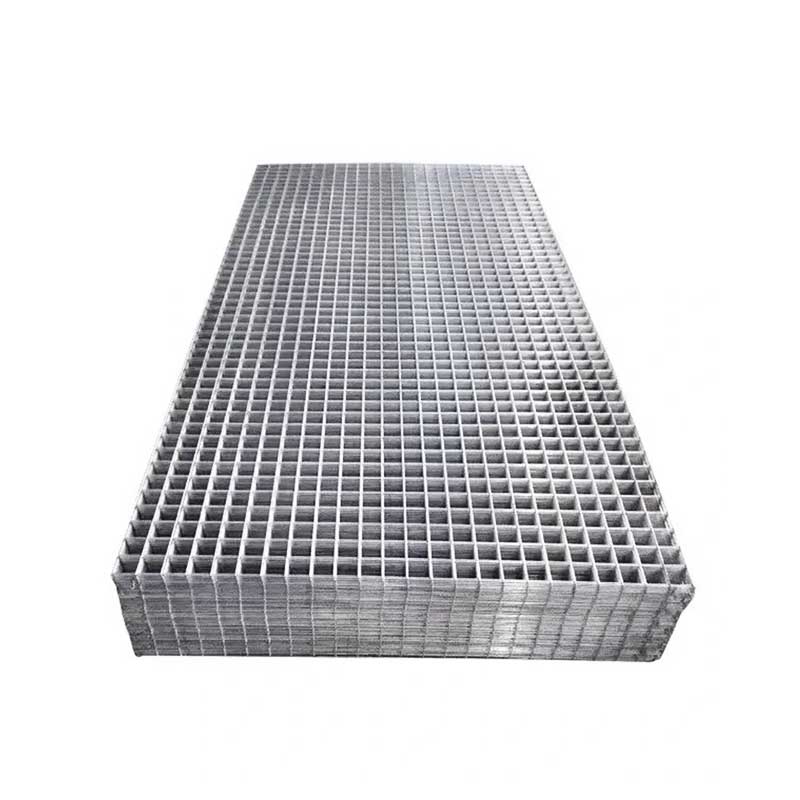

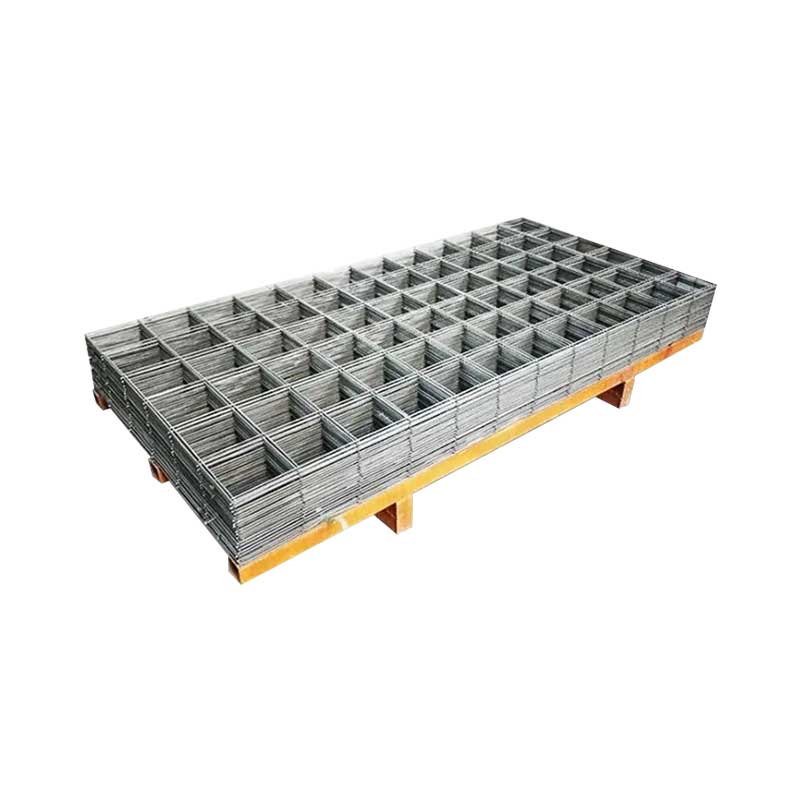

Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a grid-like structure. The welded wire mesh panels offer excellent strength, durability, and versatility, making the welded wire panels suitable for a wide range of applications. The welded wire mesh panels are commonly used in industrial, commercial, and residential settings for functions such as filtering, reinforcement, and enclosures.
Specification
Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a stable and robust grid-like structure. The welded wire fence panels are available in various sizes and specifications, making the welded wire panels versatile for numerous applications. The galvanized welded wire panels are recognized for the excellent strength, durability, and resistance to corrosion. Commonly used in construction as reinforcement for concrete, in industrial settings for filtration and conveying systems, in agriculture as fencing or animal enclosures, in sports arenas for protective netting, and in security applications like perimeter fencing. The welded design ensures that the galvanized iron wires do not shift or deform under pressure, providing a reliable and long-lasting solution for both indoor and outdoor uses.
 |  |
The welded wire mesh panels with 4 inch width and 8 inch(or 16 inch) long are widely used for construction and industry projects.
Galvanized welded fence panels size chart
Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. | ||
Durability: Made from high-quality low carbon steel, the metal welded wire mesh panels are designed to last, withstanding harsh weather conditions and heavy use.
Resistance to Corrosion: Often galvanized coated, welded wire mesh panels resist rust and corrosion, making the galvanized welded wire mesh panels suitable for long-term outdoor use.
Versatility: Available in various wire gauges, mesh sizes, and panel dimensions, the welded wire mesh panels can be customized to fit specific project requirements.
Ease of Installation: The panel format allows for quick and easy installation, with options for mounting them to walls, posts, or other structures.
Construction: Used for reinforcing concrete structures, as formwork for poured concrete, and as safety barriers on construction sites.
Agriculture: Ideal for creating animal enclosures, securing fences, and as a base for plant growth in horticultural applications.
Security: Employed in security fencing to protect properties, deter trespassers, and provide a visual barrier without obstructing views.
Decorative Fencing: Used in landscaping and around residential properties for a modern and clean look while maintaining visibility and security.
Industrial: Suitable for use as partitions or barriers in industrial settings, such as machine guards or to cover openings in walkways.
