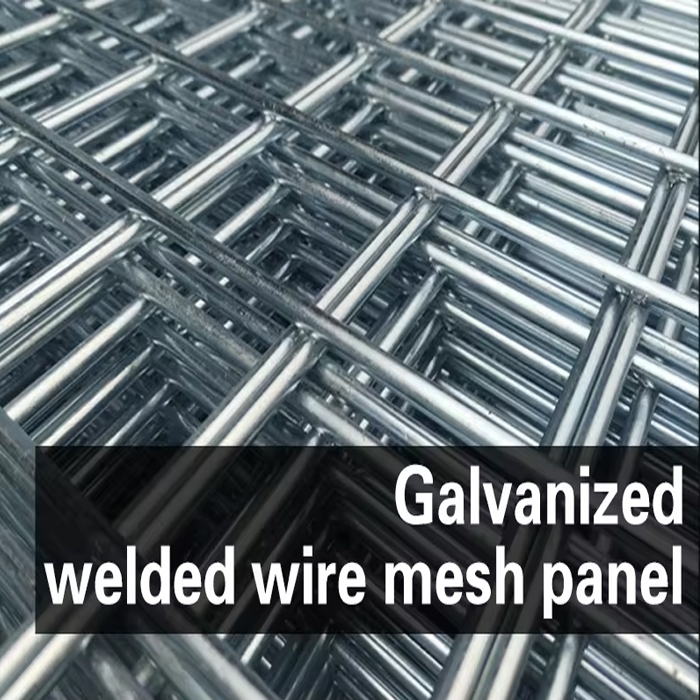

Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a grid-like structure. The welded wire mesh panels offer excellent strength, durability, and versatility, making the welded wire panels suitable for a wide range of applications. The welded wire mesh panels are commonly used in industrial, commercial, and residential settings for functions such as filtering, reinforcement, and enclosures.
Specification

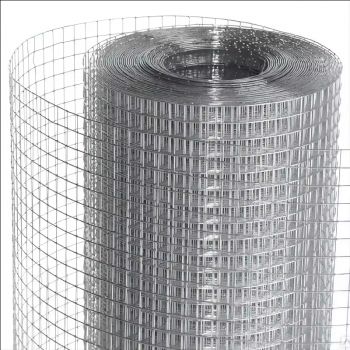

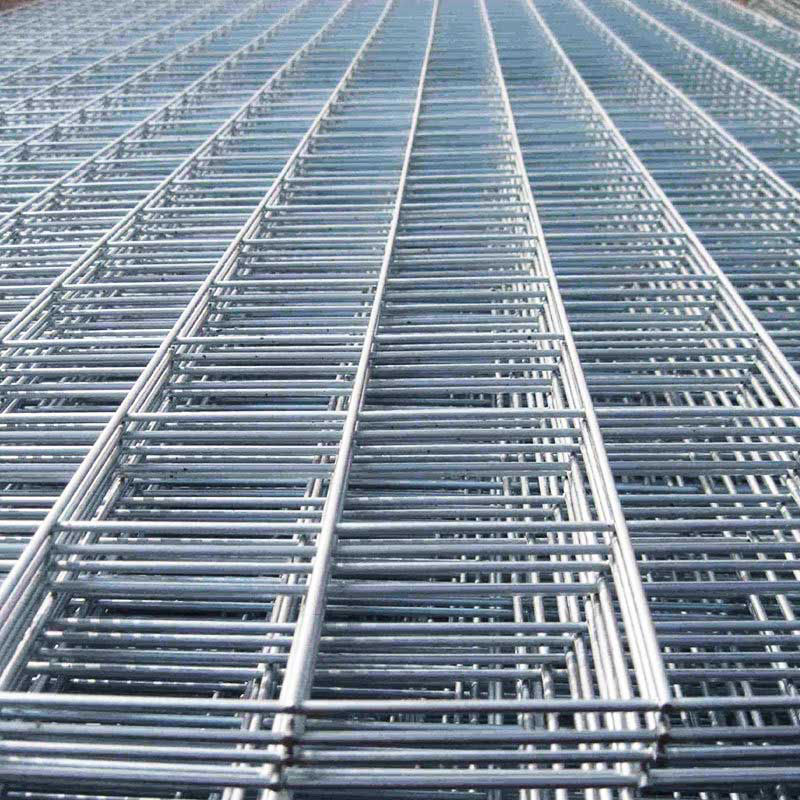

Heavy gauge welded panels are fencing materials made from thick, strong iron wires that offer increased strength and durability compared to standard welded mesh rolls. The welded wire panels are constructed by welding the intersection points of the heavy-gauge iron wires, creating a stable and secure barrier suitable for various applications, including high-security areas, industrial sites, and animal enclosures. The thicker wire gauge provides enhanced resistance to physical impacts and cutting attempts, making the welded wire mesh panels ideal for situations requiring a higher level of protection. Heavy gauge welded panels are customizable in terms of dimensions and configurations, allowing the welded wire mesh panels to be tailored to specific needs and environments. The welded wire panels are often coated with protective layers like galvanizing to prevent rust and extend their lifespan.
 |  |
Welded wire mesh fence panels in 6 gauge refer to fencing materials constructed from wires that are 6 gauge in thickness. The "gauge" of a wire is a measure of wire diameter, and a lower gauge number indicates a thicker wire. In the case of 6 gauge wire, it is relatively thick and sturdy, making the 6 guage welded wire panels well-suited for heavy-duty and high-security applications.
Galvanized welded fence panels size chart

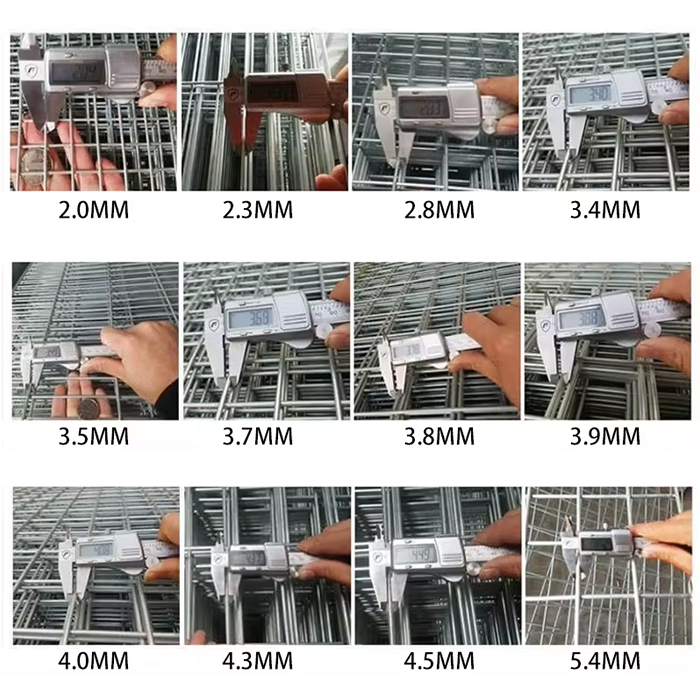

Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. | ||
Thicker Wire: Heavy gauge refers to the wire diameter of the iron wire used in the construction of the panels. This results in a stronger and more rigid structure compared to lighter gauge welded wire mesh.
Increased Durability: Due to the thicker iron wire, heavy gauge welded panels are more resistant to damage from weather, wear, and physical impacts.
Enhanced Security: The sturdy construction of heavy gauge panels makes the welded wire mesh difficult to cut through or breach, providing a higher level of security.
Welded Construction: The intersection points of the iron wires are welded together, eliminating the possibility of unraveling or breaking apart, as can occur with some woven or knotted mesh fences.
Corrosion Resistance: The welded wire mesh panels are often made from materials like low carbon steel wire and coated with zinc (galvanized) to prevent rust and extend the lifespan of the fence.Perimeter Security: For industrial, commercial, and residential properties where a high level of security is needed.
Animal Enclosures: In zoos, wildlife parks, and private collections for containing large or strong animals.
Construction Sites: To create secure barriers around construction sites, preventing unauthorized access.
Industrial Applications: As machine guards, conveyor belt protection, or as safety barriers in manufacturing environments.
