PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification

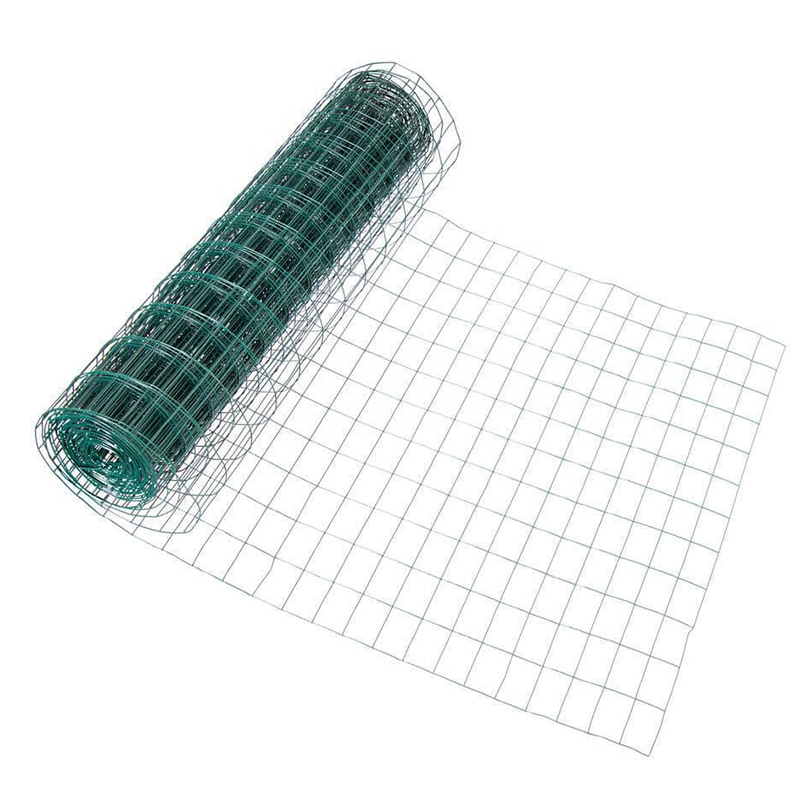

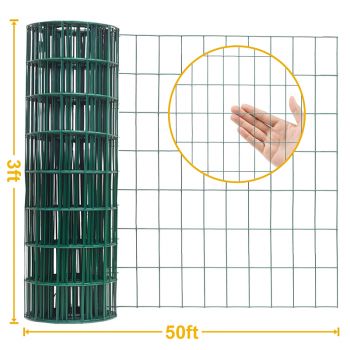

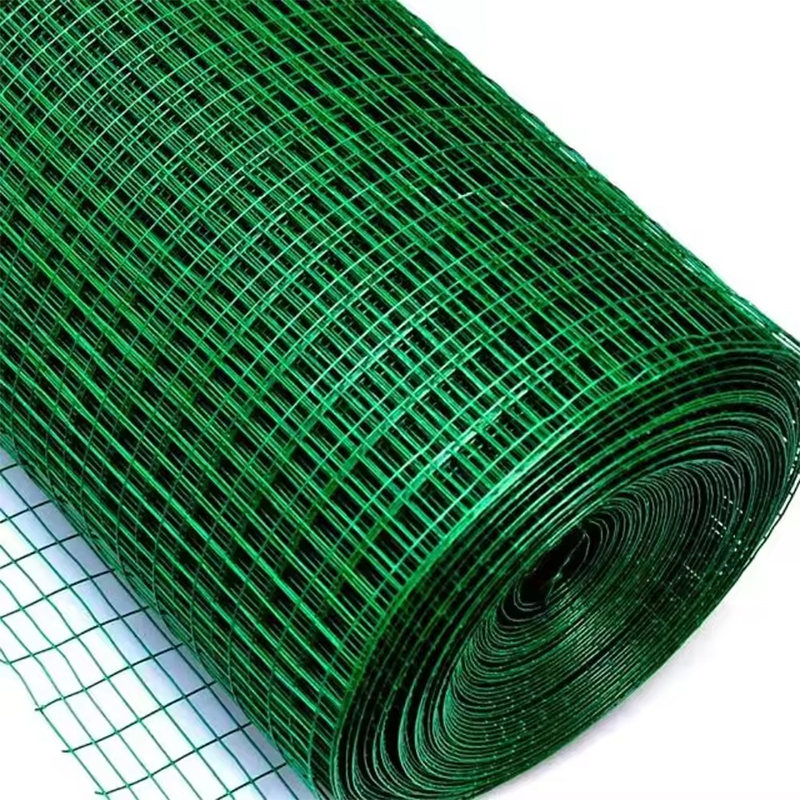

Green vinyl coated welded wire fencing is a durable and attractive metal fence made from high-quality low carbon steel wire welded into a mesh pattern and coated with a layer of protective vinyl. This green vinyl coated layer not only lends a pleasing aesthetic that blends with natural environments but also provides a corrosion-resistant shield against the elements. Ideal for residential, commercial, and agricultural applications, this low-maintenance fence offers strength, safety, and a long service life.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Durability: Made from high-quality low carbon steel wire welded into a mesh pattern, the green welded mesh fencing offers a robust barrier.
PVC Coating: The green PVC coating not only protects against rust and corrosion but also blends well with natural surroundings.
Weather Resistance: The PVC coating ensures the green vinyl coated welded wire fencing withstands various weather conditions, including rain, snow, and UV rays.
Easy Installation: The lightweight material and pre-rolled design make the green welded wire fence easy to install.

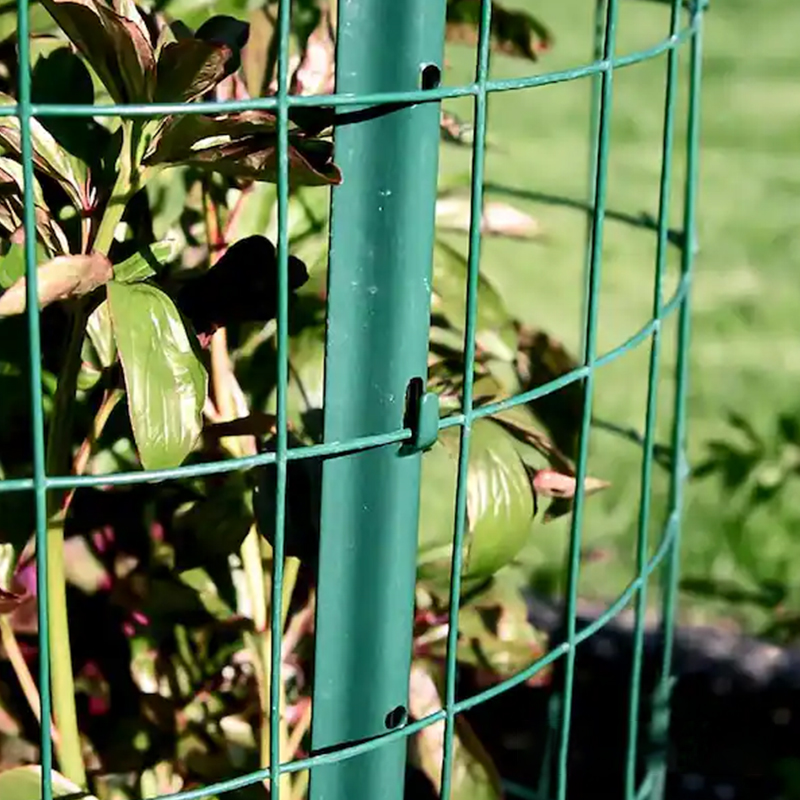

Garden Protection: 5ft PVC coated welded wire fence can be used to protect gardens from unwanted animals such as deer, rabbits, and other small critters.
Agricultural Fencing: 5ft PVC coated welded wire fence is ideal for containing livestock such as goats, sheep, and cows, and can also be used to mark property lines on farms.
Security Fencing: Due to its strength and durability, 5ft PVC coated welded wire fence can be used for security fencing around industrial areas or other places where a secure barrier is needed.
Temporary Fencing: Easy to install and remove, making the 5ft PVC coated welded wire fence suitable for temporary enclosures or event fencing.
Sunshine Fencing is a leading wire mesh manufacturer based in Shijiazhuang City, China, specializing in a broad range of wire mesh solutions. With over 20 years of experience, we are renowned for our innovative approach and high-quality fence products that cater to industries such as agriculture, construction, mining, and packaging. Our state-of-the-art factory, spanning 50,000 square meters, is equipped with modern technology and advanced equipment. We proudly export to over 100 countries, with annual sales exceeding $60 million. Sunshine Fencing provides over 200 wire mesh solutions and is dedicated to delivering dependable and competitive products in the metal fence and steel wire manufacturing sector. Sunshine Fencing has supplied many clients over the world. You can consult our wire experts for more detailed solutions.
