PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
Green PVC coated welded wire mesh is a popular choice for its aesthetic appeal and practicality. Made from high-quality low carbon steel wires welded together and then coated with a layer of green polyvinyl chloride (PVC), the green vinyl coated welded wire mesh is known for its durability and resistance to rust and corrosion. The green color not only adds visual appeal but also helps the mesh blend into natural environments, making green PVC coated welded wire ideal for landscaping and gardening projects.
Here is the PVC coated welded wire mesh specs
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |

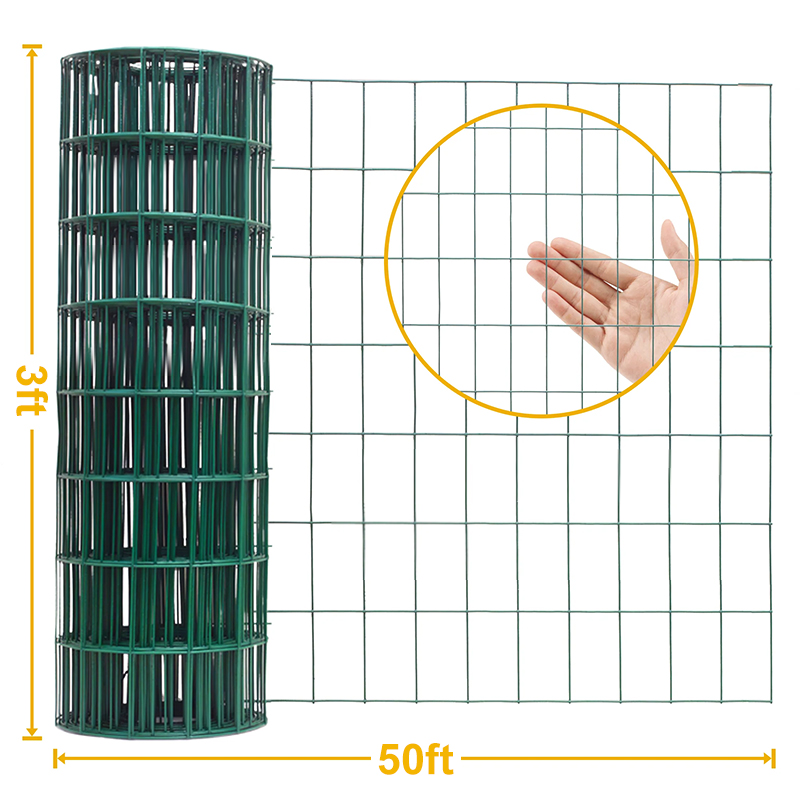

The green PVC coated welded wire mesh is commonly supplied on rolls with varying widths and lengths, such as 50 feet(15.24m) in length,3ft(0.9m) or 4ft(1.21m) and can be customized according to specific project needs.
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Durability: The PVC coating provides a layer of protection against corrosion and rust, ensuring the green coated welded wire mesh lasts longer than uncoated wire, even in harsh weather conditions.
Versatility: Available in various gauges and mesh sizes,green vinyl coated welded wire fencing can be customized to fit different projects, from light-duty gardening to heavy-duty industrial applications.
Aesthetic Appeal: The green color not only adds a natural look but also enhances the visual appeal of the green PVC coated welded wire mesh, making it ideal for landscaping and garden fencing.
Easy Maintenance: The smooth PVC surface makes the green welded wire fence easy to clean, requiring minimal upkeep compared to other fencing materials.

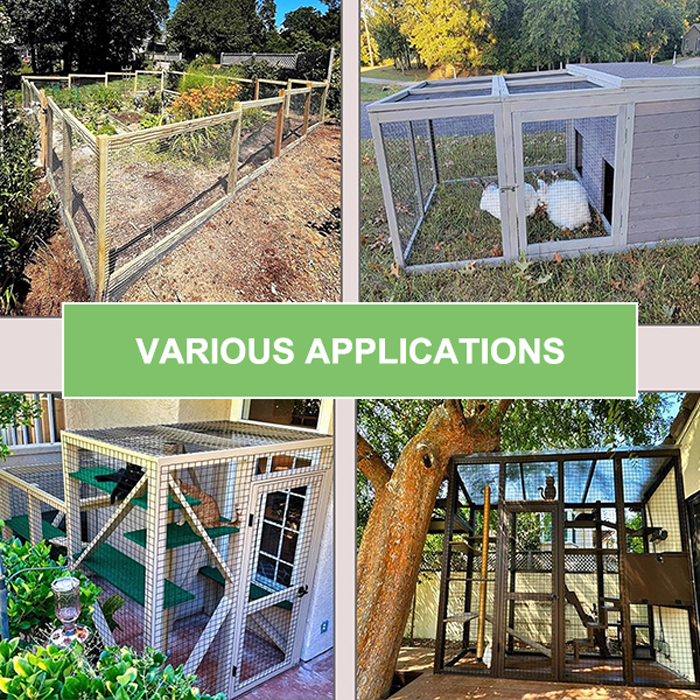

Garden Fencing: Green PVC coated welded wire mesh serves as an attractive and functional barrier in gardens, providing support for climbing plants and a decorative element.
Agriculture: Used for creating cages for poultry or other small animals, as well as for protecting crops from pests.
Security Fencing: While not primarily designed for high-security applications, green welded wire fence can serve as a deterrent in certain contexts.
Plant Support: Used to create trellises and supports for climbing plants, allowing the green vinyl coated welded wire fencing to grow vertically and conserving space.
