6 ft x 100 ft 12.5 gauge GI welded wire mesh fence

Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.

The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.


Specification

Galvanized Welded Wire Mesh is a versatile construction metal fence made by welding together low carbon steel wires at each intersection point. Galvanized welded wire mesh is then coated with a layer of zinc through a process called galvanization, which provides corrosion resistance and extends its lifespan, especially in outdoor environments.


Galvanized welded wire mesh features

  • Corrosion Resistance: The zinc coating protects the low carbon steel from rust and corrosion,making the galvanized welded wire mesh suitable for outdoor use.

  • High Tensile Strength: The welding process ensures that the galvanized welded wire mesh has high tensile strength and can withstand considerable loads.

  • Uniform Structure: The consistent weave pattern ensures uniformity in the galvanized welded wire mesh,which is important for certain applications where precise opening sizes are required.


Galvanized welded wire mesh applications

  • Construction: Galvanized welded wire mesh is used as reinforcement in concrete structures,walls,and floors to improve tensile strength.

  • Fencing: Galvanized welded wire mesh is used to create durable and secure fences for agricultural,residential,and industrial applications.

  • Animal Enclosures: Galvanized welded wire mesh is used in the creation of cages and enclosures for animals in zoos,farms,and research facilities.

  • Industrial Uses: The galvanized welded wire mesh can be used in various industrial settings for tasks such as screening and separating materials.

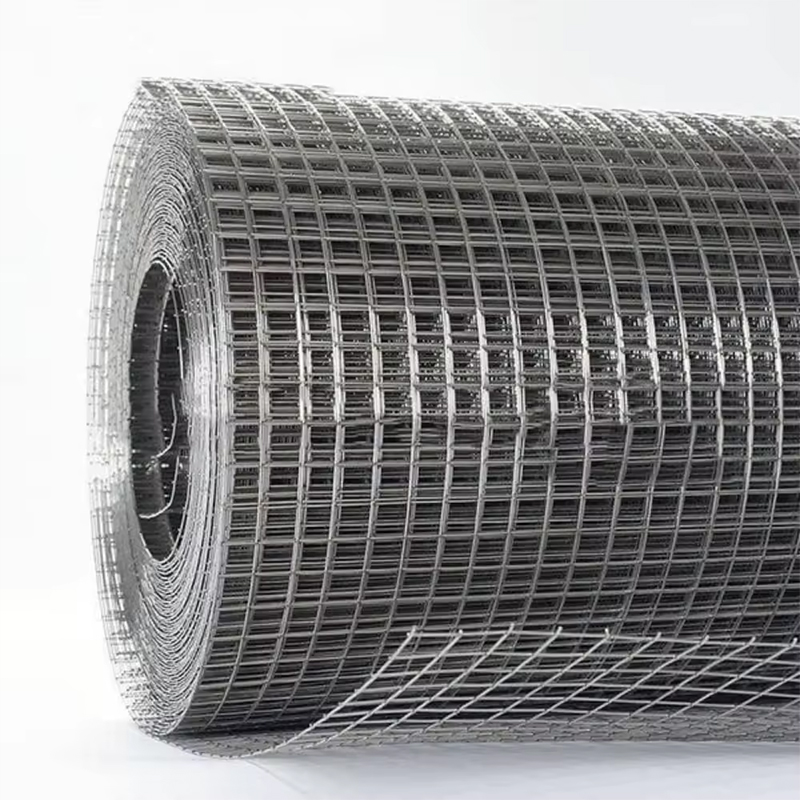

Hot dipped galvanized welded wire mesh in rollHot dipped galvanized welded wire mesh in roll

Galvanized welded wire mesh sizes

MeshMesh Cardinal NumberWire Range
MMInchMM-MM
6.35X6.351/4"X1/4"40.45--0.70
8.47X8.471/3"X1/3"30.50--0.80
9.53X9.533/8"X3/8"2.60.50--0.90
12.7X12.71/2"X1/2"20.50--1.20
15.9X15.95/8"X5/8"1.60.60--1.20
19.1X19.13/4"X3/4"1.330.60--1.60
25.4X25.41"X1"10.65--1.90
38.1X38.11-1/2"X1-1/2"0.671.00--2.00
50.8X50.82"X2"0.51.20--2.10
76.2X76.23"X3"0.3331.70--2.50
101.6X101.64"X4"0.251.70--2.50
25.4x12.71"x1/2"1.50.65--1.60
50.8x25.42"x1"0.751.20--1.90
63.5x50.82-1/2"x2"0.451.70--2.50
76.2x50.83"x2"0.421.70--2.50
101.6x50.84"x2"0.3751.70--2.50
101.6x63.54"x2-1/2"0.3251.70--2.50
101.6x76.24"x3"0.291.70--2.50
