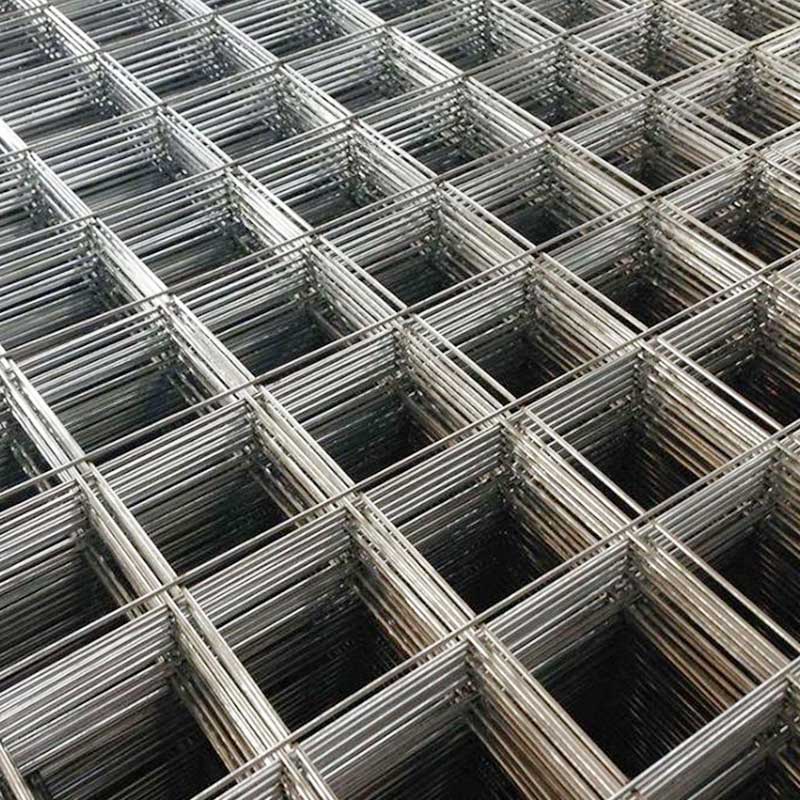

Galvanized welded wire mesh is a type of wire mesh that is characterized by its superior strength and durability. The galvanized welded wire mesh is made by high quality carbon steel wire strands together in a grid pattern, creating a strong and sturdy structure.
The term "galvanized" refers to the protective zinc coating that's applied to the wire to prevent rusting and corrosion. The welding process ensures that the intersections are secure, making the welding structure highly stable.
Specification
Material: Black wire or electro galvanized wire with PVC coating, stainless steel wire
Color: Dark green, light, green, black or according to customer's request.
Surface treatment: Electro galvanized welded wire mesh, hot-dipped galvanized welded wire mesh, PVC coated welded wire mesh, stainless steel welded wire mesh.
Packing: PE absorbent plastics or added pallet.small roll can be packed in carton.
Welded characteristics: Galvanized before welded, Galvanized after welded.
Features:
Corrosion Resistance: Galvanized welded wire mesh is coated with zinc, which provides excellent protection against corrosion and oxidation. This makes it ideal for outdoor use or in environments where exposure to moisture and other corrosive elements is likely.
Longevity: The galvanization process enhances the lifespan of the wire mesh by preventing rust and other forms of deterioration. This means that galvanized welded wire mesh can last for many years without requiring frequent replacements or costly maintenance.
Strength and Durability: Galvanized welded wire mesh is made from high-quality steel, which ensures strength and durability. The iron or stainless wires are securely welded together to form a stable and robust mesh that can withstand heavy loads and pressure.
Application: It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
