Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification
Galvanized welded wire mesh rolls are versatile metal fences known for the durability and resistance to corrosion. The welded wire mesh rolls are made by welding low carbon steel wires together to form a mesh, which is then coated with zinc to prevent rusting. This process not only ensures strength but also provides a protective layer against harsh weather conditions, making the welded wire mesh suitable for both indoor and outdoor applications.
Galvanized welded wire mesh rolls are available in different types of galvanizing treatments, including galvanized before welding and galvanized after welding. Galvanized before welding wire mesh is more durable as the other welded wire mesh, including the welded joints, is covered with zinc, providing a longer service life and less maintenance.
 |  |
The galvanized welded wire mesh rolls come in various sizes, with different mesh openings and wire thicknesses, allowing for a wide range of uses.

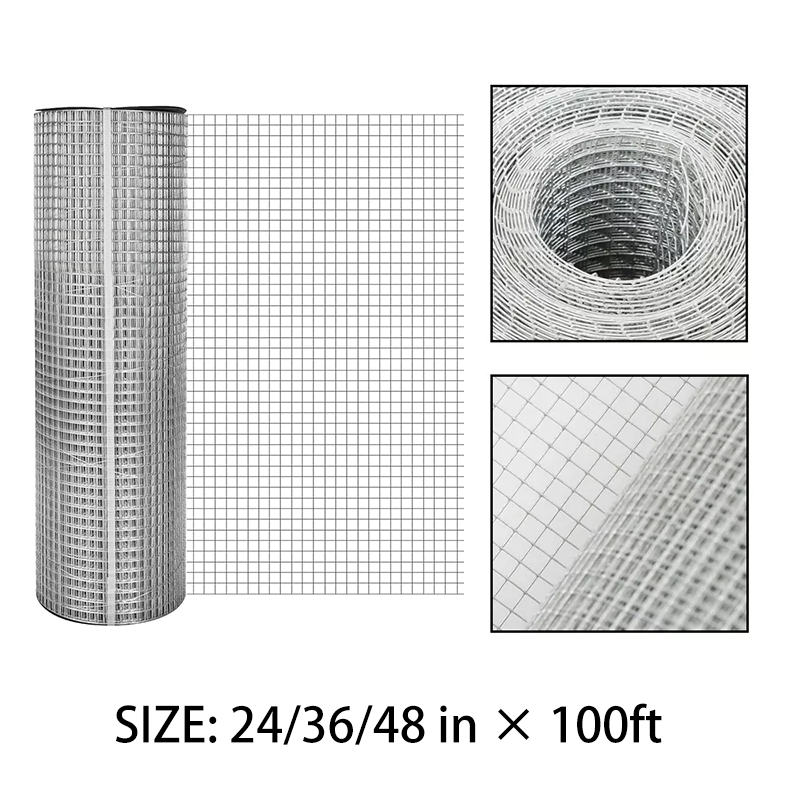

The popular sizes are: galvanized welded wire fence 24 in x 100 ft,36 in x 100 ft galvanized welded wire fence,galvanized welded wire fence 48 in x 100 ft,72 in x 50 ft galvanized welded wire fence.
Here is the size chart:
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
The uniform surface of the welded wire mesh makes it popular for uses such as fencing and filtration systems, while its corrosion-resistant properties make it ideal for long-term projects.Do you know the other features of galvanized welded wire mesh?
Corrosion Resistance: The zinc coating prevents rust and corrosion, making the galvanized welded wire mesh suitable for outdoor use.
Durability: High tensile strength and rigidity ensure long-term performance.
Versatility: Available in various mesh sizes and wire diameters to meet different needs.
Ease of Installation: Can be easily cut to size and shaped as required.
Aesthetic Appeal: Provides a clean, professional look suitable for both functional and decorative purposes.
Construction: Used as reinforcement in concrete structures, such as walls, floors, and bridges.
Fencing: Ideal for creating secure perimeters around properties, gardens, and industrial sites.
Animal Enclosures: Suitable for building cages, aviaries, and kennels due to its strength and durability.
Road Safety: Employed in highway barriers and guardrails for added safety.
Industrial Uses: Utilized in conveyor belts, machinery guards, and other industrial applications requiring robust materials.
Sunshine Fencing is a leading wire mesh manufacturer based in Shijiazhuang City, China, specializing in a broad range of wire mesh solutions. With over 20 years of experience, we are renowned for our innovative approach and high-quality fence products that cater to industries such as agriculture, construction, mining, and packaging. Our state-of-the-art factory, spanning 50,000 square meters, is equipped with modern technology and advanced equipment. We proudly export to over 100 countries, with annual sales exceeding $60 million. Sunshine Fencing provides over 200 wire mesh solutions and is dedicated to delivering dependable and competitive products in the metal fence and steel wire manufacturing sector. Sunshine Fencing has supplied many clients over the world. You can consult our wire experts for more detailed solutions.
