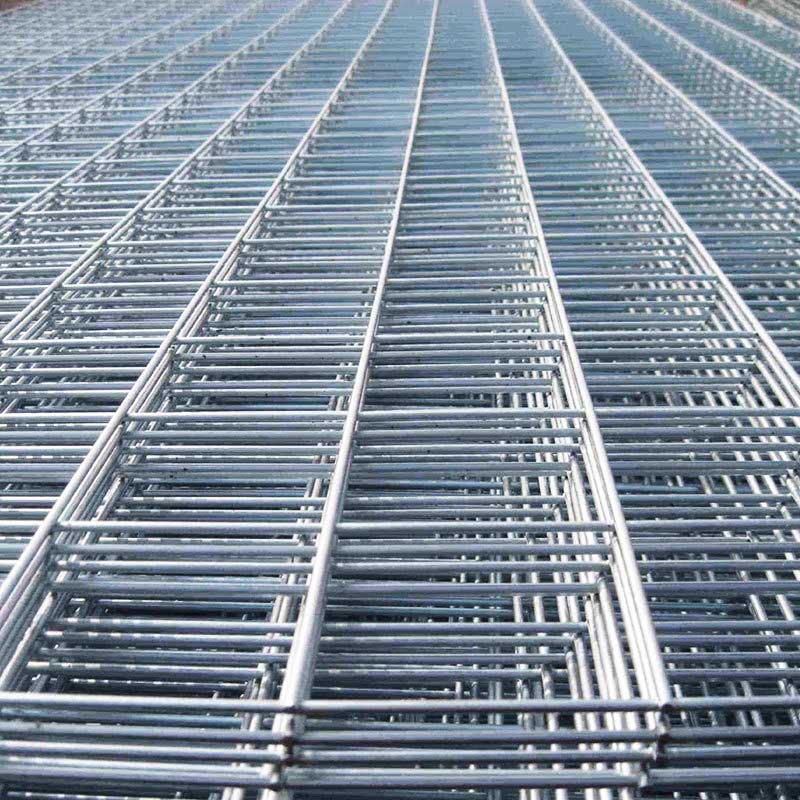

Galvanized welded wire mesh is a type of wire mesh that is manufactured by welding wires together, creating an intersection at each wire. The neat square or rectangular pattern makes the galvanized welded wire mesh very versatile and durable.
The term "galvanized" refers to the process of treating the welded wire mesh to prevent rust and corrosion. There are two common galvanizing methods: hot-dip galvanizing, which involves immersing the wire mesh in a bath of molten zinc, and electro-galvanizing, where an electric current is used to bond the zinc coating to the wire.
Specification
| Product Name: | Galvanized Welded Wire Mesh |
| Material: | Galvanized Iron Wire, Stainless Steel Wire |
| Color: | Silver White |
| Wire Gaugeļ¼ | 1.2-2mm |
| Surface Treatment: | Hot-Dipped Or Electro Galvanized |
| Hole Shape: | Square |
| Welding Type: | Galvanized Before/After Welding |
| Feature | Durable |
| Packing: | We use wooden and steel packing to ensure the quality of our products. The size of the container depends on the size of the goods. |
| Application: | Mining, Fencing, Decoration, Machinery protection |
 |  |
SIZE CHART OF GALVANIZED WELDED WIRE MESH
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
Features:
Corrosion Resistance: Galvanized welded wire mesh is coated with zinc, which provides excellent protection against corrosion and oxidation. This makes it ideal for outdoor use or in environments where exposure to moisture and other corrosive elements is likely.
Longevity: The galvanization process enhances the lifespan of the wire mesh by preventing rust and other forms of deterioration. This means that galvanized welded wire mesh can last for many years without requiring frequent replacements or costly maintenance.
Strength and Durability: Galvanized welded wire mesh is made from high-quality steel, which ensures strength and durability. The iron or stainless wires are securely welded together to form a stable and robust mesh that can withstand heavy loads and pressure.

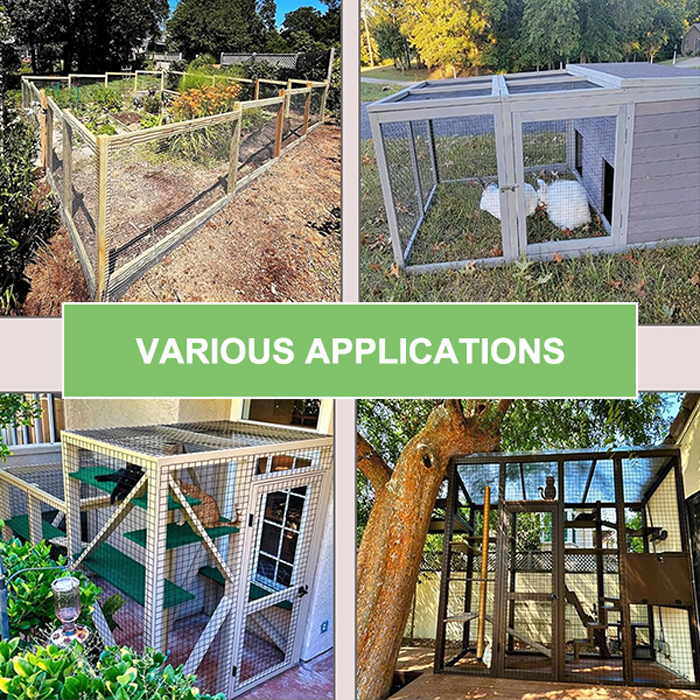

Application:
Agriculture: In agricultural applications,galvanized welded wire mesh can be used for making animal cages, livestock fencing, or even crop protection structures.
Construction: In the construction industry, galvanized welded wire mesh is extensively used for concrete reinforcement purposes. The grid structure ensures an evenly distributed load, thus enhancing the strength and stability of the concrete structures.
Industrial Use: In industries, galvanized welded wire mesh is often used for machine guards, grilles, or screens to provide protection without obstructing visibility or airflow.
