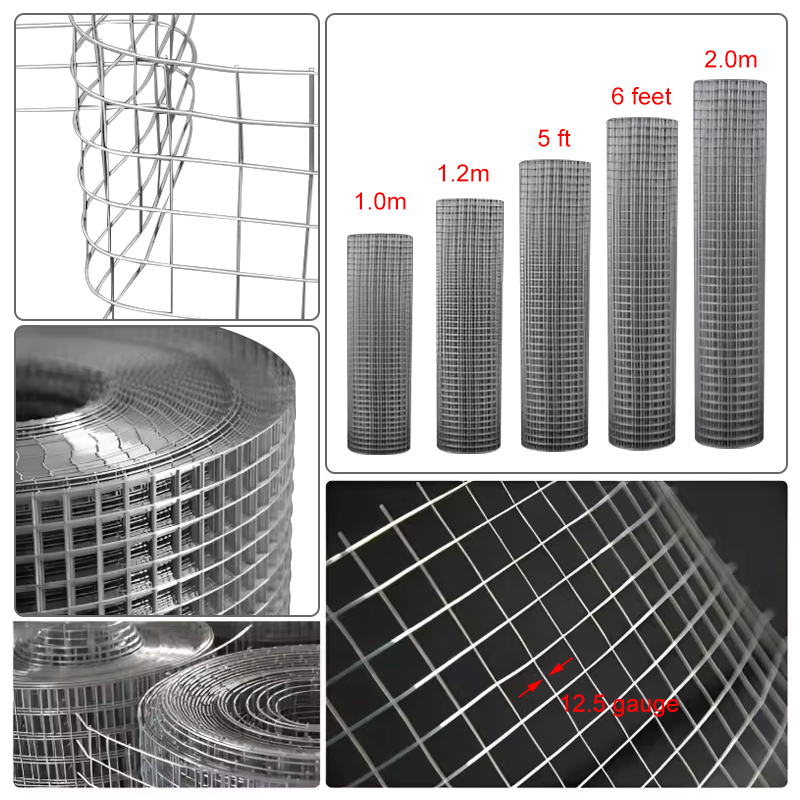

Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification
Rectangular hole welded wire mesh has rectangular openings. The rectangular hole welded wire mesh is made by welding the intersection points of the galvanized iron wires in a criss-cross pattern, forming a strong and durable mesh. The welded wire mesh is made of high-quality low carbon steel wire and coated with zinc. This coating protects against rust and corrosion, making the welded wire mesh suitable for use in various environments.
The rectangular openings in the welded wire mesh distribute force evenly, making the galvanized welded wire mesh ideal for strong, stable applications. The galvanized welded wire mesh is used in construction, animal enclosures and industry. The galvanized welded wire mesh is available in different sizes.
Galvanized welded wire mesh size chart
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
Durability: Made from high-quality low carbon steel wire, the galvanized welded wire mesh is strong and durable.
Corrosion Resistance: The galvanization process provides a protective layer against rust and corrosion, extending the lifespan of the galvanized welded wire mesh.
Uniformity: The galvanized welded wire mesh has a consistent and even structure, with precise rectangular holes.
Versatility: Available in various sizes and specifications to meet different requirements.
Aesthetics: The smooth and neat appearance of the galvanized welded wire mesh can enhance the visual appeal of applications.
 |  |
Construction: Used as a reinforcement in concrete structures, providing strength and stability.
Fencing: Ideal for security fencing due to its robustness and resistance to tampering.
Agriculture: Employed in animal enclosures and plant support structures.
Safety Guards: As protective barriers in machinery and around hazardous areas.
