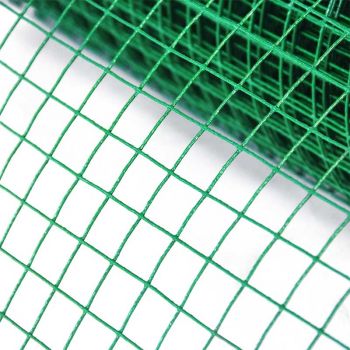

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification

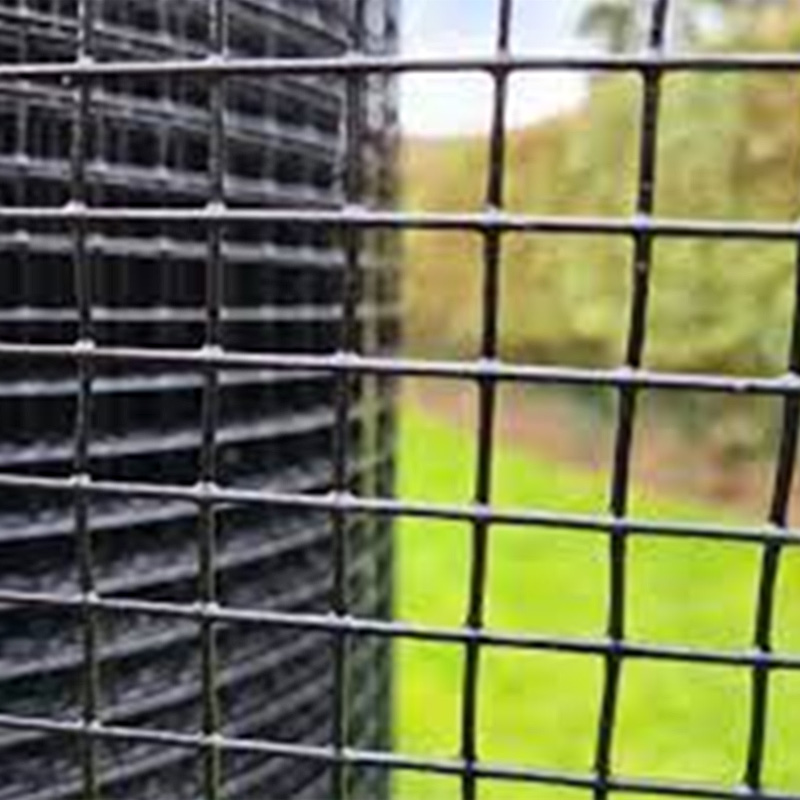

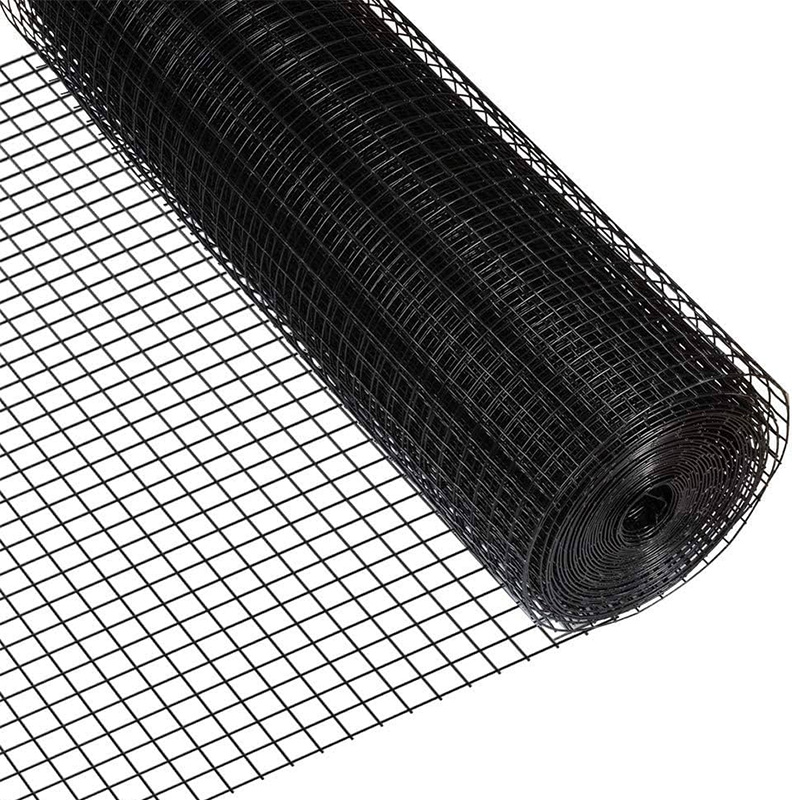

Black PVC coated welded wire fence is a versatile and durable fencing option that offers both security and an attractive appearance. Black vinyl coated welded wire fencing is made from galvanized low carbon steel wire that is then coated with black PVC, providing excellent corrosion resistance and weather protection. The black coated welded wire mesh fencing is commonly used for residential, commercial, and agricultural applications, including securing gardens, creating boundaries for livestock, and providing safety barriers.
Here is the PVC coated welded wire mesh specs
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
The black PVC coated welded wire mesh fence comes in various sizes, with common specifications including a 50x50mm or 2-inch x 4-inch mesh opening, and is often made from 14-gauge or 16 gauge iron wire for added durability.Therefore,the 14 guage black vinyl coated welded wire fencing and 16 gauge black vinyl coated welded wire mesh are widely used for construction projects.
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
1.High tensile strength due to the low carbon steel iron wire core, often in gauges ranging from 12 to 14 gauge.
2.The black PVC coating that enhances the visual appeal and provides additional protection against rust and corrosion, suitable for outdoor use.
3.Available in various mesh sizes, typically with openings ranging from 1.5 to 5 inches, to accommodate different fencing needs.
4.Easy to install, often using posts and tensioners, and can be cut to size for customized applications.
5.UV-resistant, ensuring the black vinyl coated welded wire fence maintains its integrity and appearance over time.
The black PVC coating not only provides a sleek, modern look but also makes the black vinyl coated welded wire fence nearly invisible from a distance, blending well with natural surroundings. Black coated welded wire mesh is often used where a combination of strength, durability, and aesthetics is required.
Fencing and Security: Black PVC coated welded wire mesh is commonly used for residential, commercial, and industrial fencing due to its strength and durability. The black PVC coating provides an added layer of protection against the elements, making the black PVC coated welded wire mesh suitable for outdoor use and ensuring a long service life.
Agriculture: Black PVC coated welded wire mesh serves as a protective barrier in agricultural settings, such as for animal enclosures, pens, and chicken coops. The black PVC coated welded wire mesh helps to keep animals secure while also providing ventilation.
Industrial Applications: Black PVC coated welded wire mesh is used in industrial settings for machine protection covers, ranch fenders, and as a barrier reinforcement. Its corrosion-resistant properties make it ideal for environments where durability is essential
Decorative and Architectural Features: The black PVC coating gives the black PVC coated welded wire mesh an aesthetically pleasing appearance, making it suitable for decorative fencing and architectural features.
