PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
The welded wire mesh used is typically made from galvanized low carbon steel wires that have been woven together into a grid-like pattern. The iron wires are then welded at the intersections to create a strong and stable mesh.

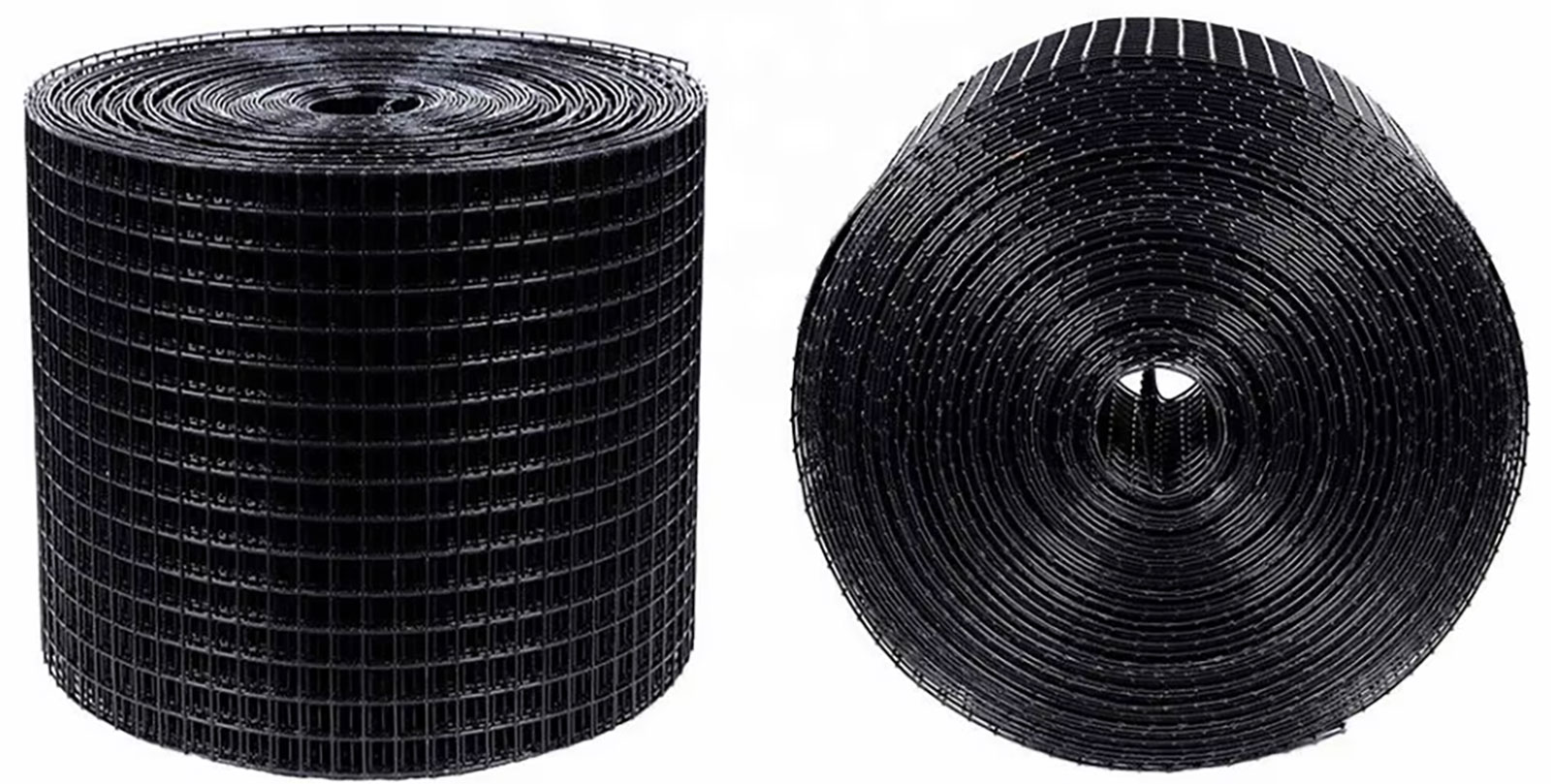

The black PVC coating is applied to the welded wire mesh using a dipping or spraying process. This creates a smooth, uniform layer of plastic that covers the entire surface of the wire mesh. The coating is typically around 0.5-1.0mm thick, depending on the specific application requirements.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
Size chart of PVC coated welded wire mesh
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |

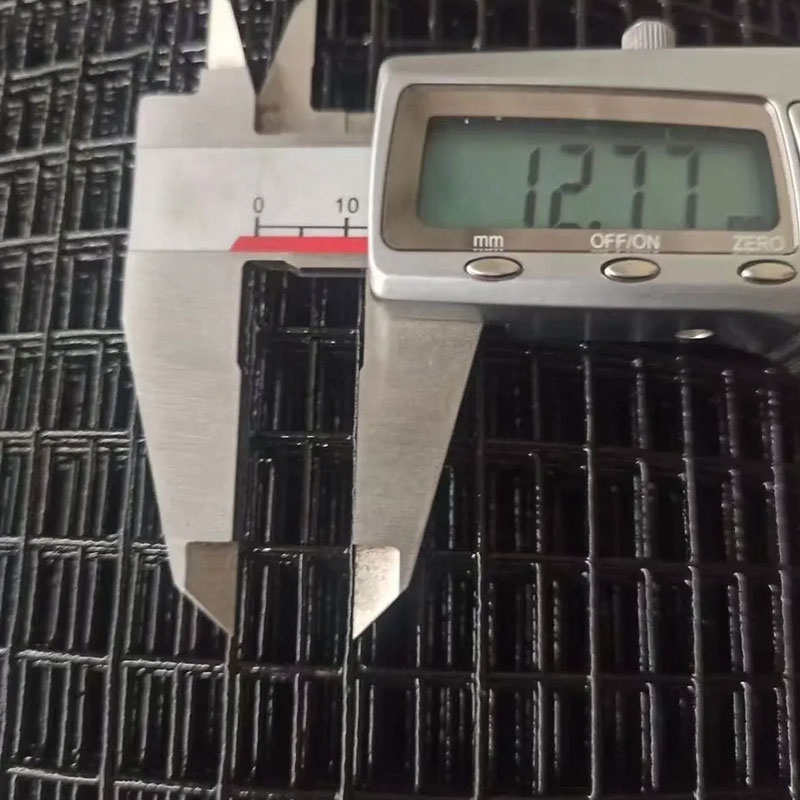

12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |

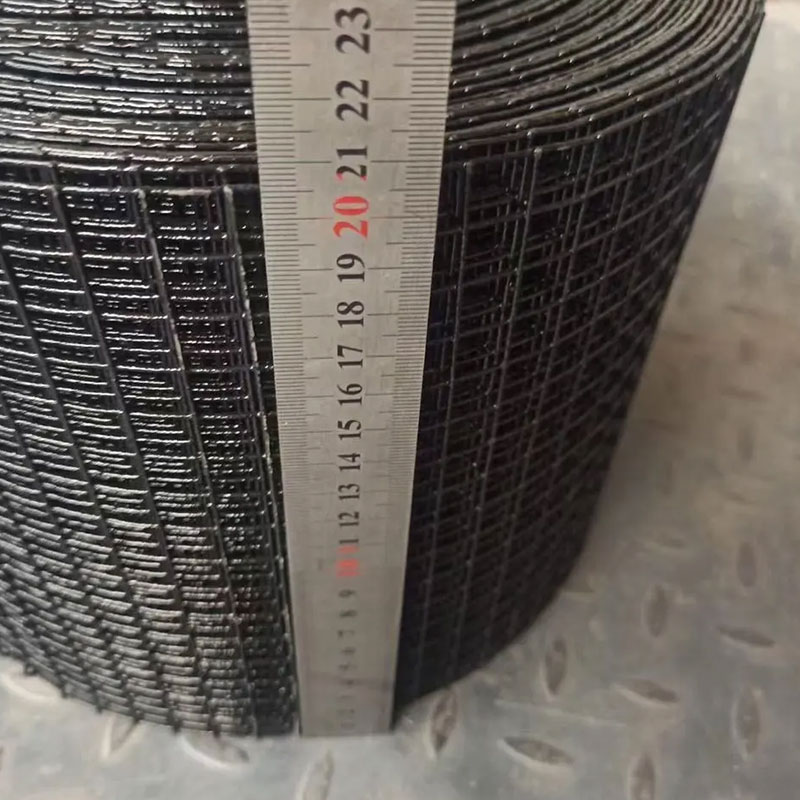

Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Corrosion Resistance: The PVC layer shields the low carbon steel from moisture and chemicals, making the PVC coated black welded wire mesh suitable for outdoor use and in environments where rust could be an issue.
Durability: The black PVC coating results in a strong bond between the PVC and the wire, creating a long-lasting PVC coated welded wire mesh.
UV Resistance: The black PVC coating protects the welded wire mesh from the degrading effects of ultraviolet light, ensuring it retains its integrity and appearance over time.
Aesthetic Appeal: The black color provides a clean, modern look that can be used for both functional and decorative purposes.
Fencing: Used in residential, commercial, and industrial settings for security and boundary marking.
Agriculture: Ideal for animal enclosures, poultry housing, and plant support structures.
Construction: Can be used for reinforcing concrete and as a base for flooring.
Decorative Purposes: Adds a modern touch to landscaping and architectural designs.
Welded wire mesh is usually sold in rolls, and the 4 ft x 100 ft welded wire mesh,5 ft x 100 ft welded wire mesh,6 ft x 50 ft welded wire fence are suitable for long-term outdoor use.

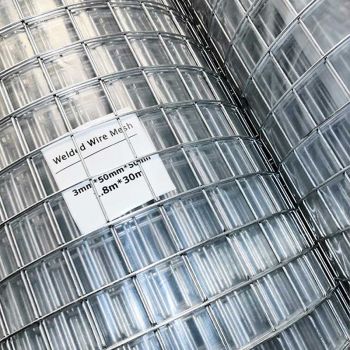

Related Products
