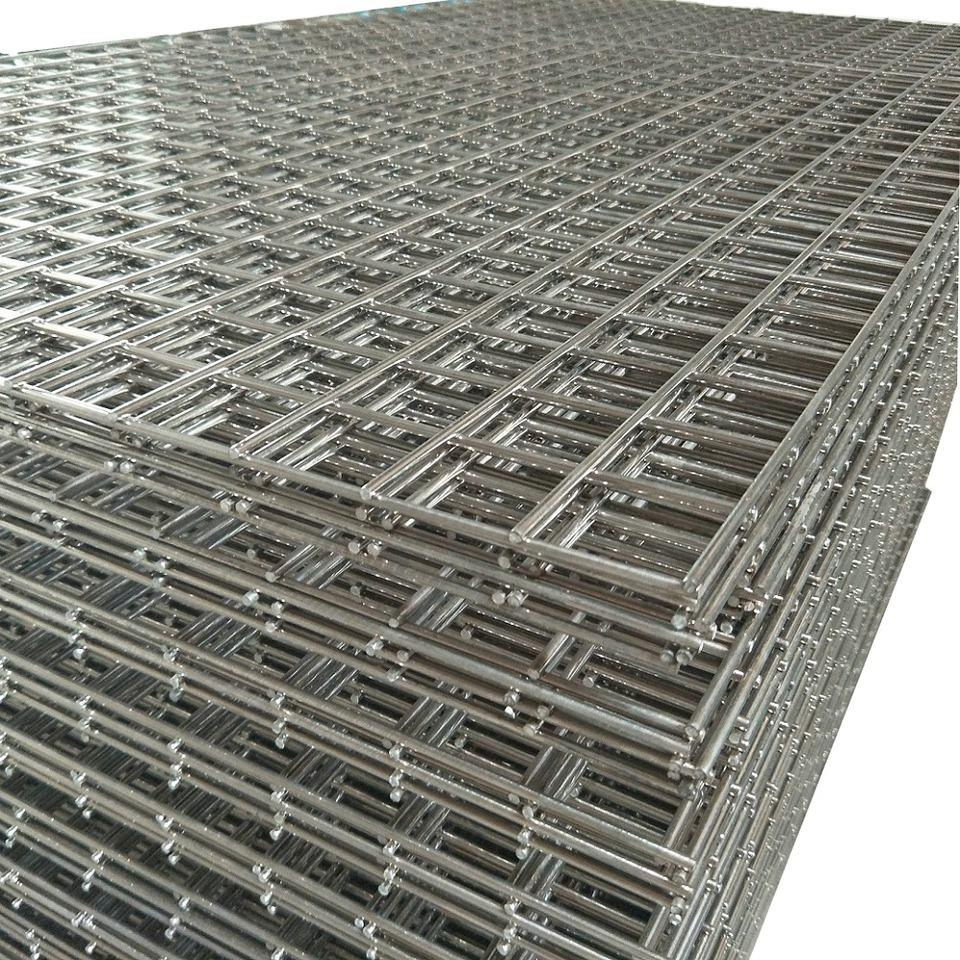

Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a grid-like structure. The welded wire mesh panels offer excellent strength, durability, and versatility, making the welded wire panels suitable for a wide range of applications. The welded wire mesh panels are commonly used in industrial, commercial, and residential settings for functions such as filtering, reinforcement, and enclosures.
Specification

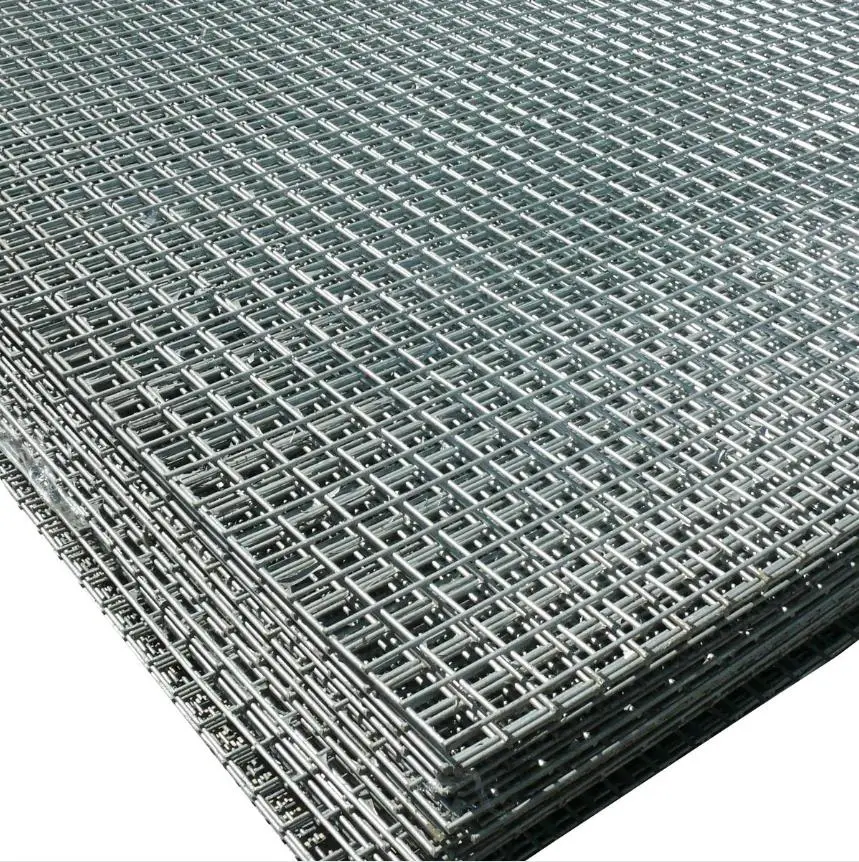

Galvanized welded wire mesh panels are known for the corrosion resistance and strength. Made by welding low carbon steel wires at each intersection point to form a uniform grid pattern, the welded wire panels are then coated with a layer of zinc through a galvanization process. This coating provides protection against rust and increases longevity, making the galvanized welded wire mesh panels suitable for outdoor and harsh environments. The welded wire panels are versatile, used in applications such as reinforcing concrete, fencing, animal enclosures, and agricultural supports. Available in various mesh sizes and wire gauges, galvanized welded wire mesh panels offer a customizable solution for different construction and industrial needs. The uniformity, combined with the ease of installation and low maintenance, makes the galvanized welded wire mesh panels a preferred choice in various projects where stability and durability are required.
The widely used galvanized welded wire mesh panels are:5 foot welded wire fence panels,6 ft welded wire fencing panels,16 ft welded wire panels,20 ft welded wire fence panels.
The wire diameter of the galvanized welded wire mesh range BWG4-BWG14.
Galvanized welded fence panels size chart
Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. |
Corrosion Resistance: The galvanization provides a protective layer against rust and corrosion, making the galvanized welded wire mesh panels suitable for outdoor use.
Durability: Made from thick wire diameter low carbon steel wires, the galvanized welded wire fencing panels are highly durable and can withstand harsh conditions.
Versatility: Available in various sizes, apertures, and thicknesses, the galvanized welded wire fence panels can be used in a wide range of applications.
Uniformity: The welding process ensures a uniform surface, which is aesthetically pleasing and functional.
Security Fencing: Used for creating secure barriers around properties.
Animal Enclosures: Ideal for cages and pens due to the strength and resistance to damage.
Garden Fencing and Screening: Provides a sturdy and long-lasting boundary for gardens.
Pond Covers: Used to cover ponds to prevent leaves from blocking pumps and filters.
Construction: Often used as a reinforcement in concrete structures.
Safety Guards: Used around machinery in factories for safety purposes.
