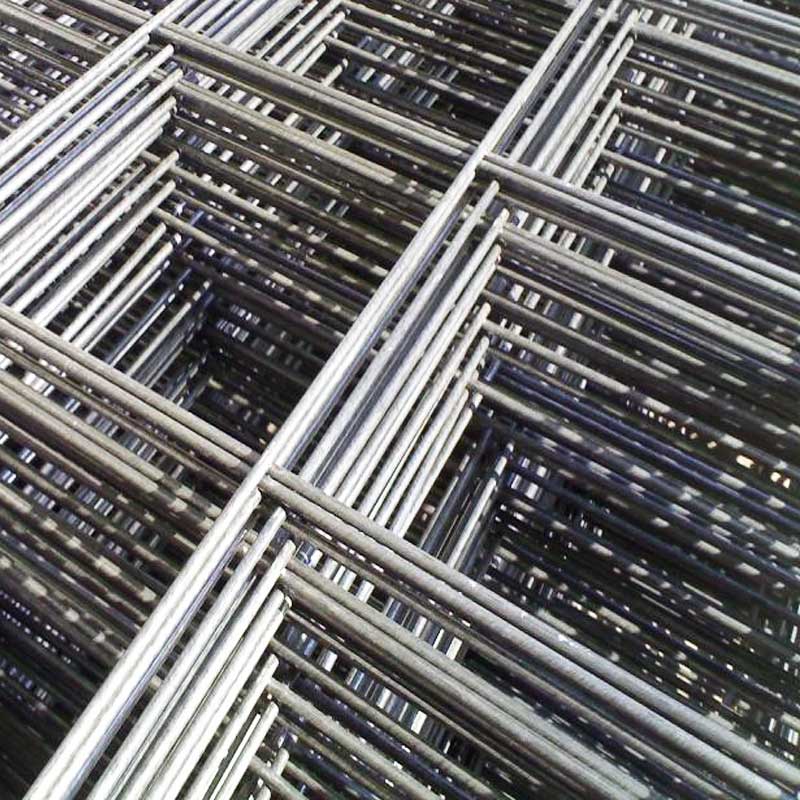

Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a grid-like structure. The welded wire mesh panels offer excellent strength, durability, and versatility, making the welded wire panels suitable for a wide range of applications. The welded wire mesh panels are commonly used in industrial, commercial, and residential settings for functions such as filtering, reinforcement, and enclosures.
Specification
Heavy duty welded wire mesh panels are strong metal fencing materials used extensively in construction, agriculture, and security. Made from materials like low carbon steel and undergone galvanized manufacturing process for rust resistance, the welded wire mesh panels feature a strong interlocking structure created by resistance welding processes. Known for the durability and ease of installation, these welded wire mesh panels are ideal for creating fences, animal enclosures, security cages, and garden structures. Available in various mesh sizes and wire gauges, the welded wire mesh panels can be customized to fit specific requirements and withstand harsh environmental conditions.
 |  |
50 x 50mm: This indicates that the welded wire mesh has square openings that measure 50 millimeters on each side. This size is often used for applications that require a balance between visibility and security, such as in garden fencing or to protect smaller animals.

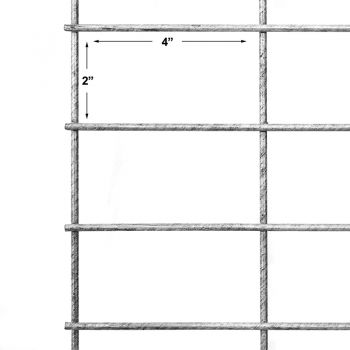

100 x 50mm: This measurement signifies a rectangular opening with a length of 100 millimeters and a width of 50 millimeters. This type of welded wire mesh is typically used when a longer, more rectangular opening is needed, such as for larger animal containment or for specific construction projects.
Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. | ||
Durability: Made from strong low carbon steel wires, the welded wire mesh panels are designed to withstand harsh conditions and heavy use.
Resistance to Corrosion: Many welded wire mesh panels are galvanized to resist rust and corrosion, making the galvanized welded wire mesh suitable for outdoor use.
Strength and Stability: The welding process ensures that the iron wires are securely fastened at each intersection, providing a stable and strong structure.
Easy Installation: The welded wire mesh panels are often designed for easy installation, with features like pre-formed edges for attaching to posts or frames.
Construction and Reinforcement: The welded wire mesh panels are used in concrete reinforcement for structures like foundations, slabs, and walls, providing tensile strength and preventing cracking .
Fencing and Enclosures: Ideal for creating secure barriers for properties, livestock, and poultry, as well as for use in security fencing in military bases and prisons .
Security Solutions: Welded wire mesh panel is used in security screens and partitions, offering a strong deterrent against unauthorized access.
