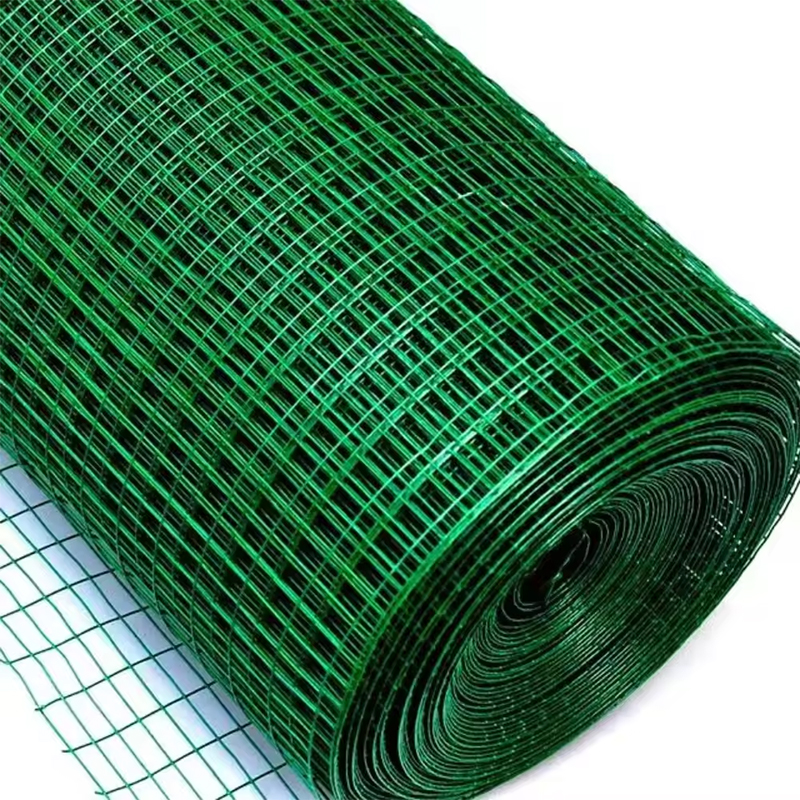

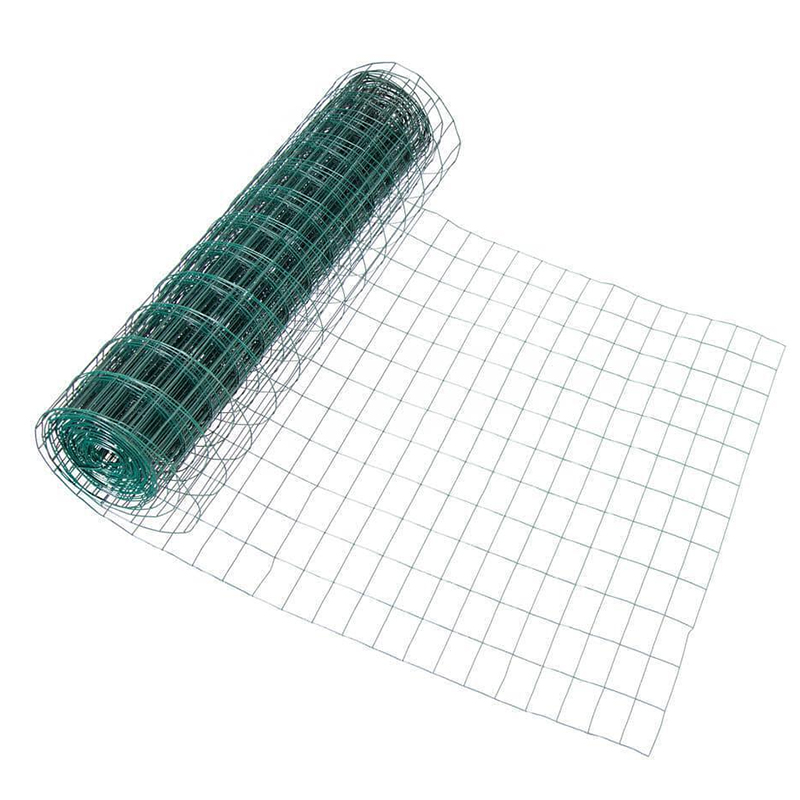

5 ft tall PVC coated welded wire fencing

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.

Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.


Specification

Welded wire PVC-coated fencing combines the strength of welded low carbon steel wire mesh with the added protection and aesthetic appeal of a PVC coating. The low carbon steel wires are tightly welded together to form a durable grid, which is then coated with a layer of polyvinyl chloride (PVC). This coating not only enhances the PVC coated welded wire fence's resistance to corrosion, rust, and weathering but also provides a smoother surface that is safer and more visually appealing. Available in a range of colors, PVC-coated fencing can blend seamlessly into different environments, from residential yards to industrial sites. Its durability, low maintenance requirements, and aesthetic versatility make the PVC welded wire fence a popular choice for both functional and decorative fencing needs.

Material:Q195/Q235 galvanized iron wire
Color:Green, Blue, Black, White,etc
Wire Gauge:0.5-3mm
Surface Treatment:PVC Coated
Hole Shape:Square or rectangular
Welding Type:PVC Coated Before/After Welding
5 ft tall PVC coated welded wire fencing5 ft tall PVC coated welded wire fencing

Size chart of PVC coated welded wire mesh

Mesh size
Wire Dia before & after PVC coat
MM
Inch
Before coat
After coat
6.4
1/4 inch
0.56 - 0.71
0.90 - 1.05
9.5
3/8 inch
0.64 - 1.07
1.00 - 1.52
12.7
1/2 inch
0.71 - 1.65
1.10 - 2.20
15.9
5/8 inch
0.81 - 1.65
1.22 - 2.30
19.1
3/4 inch
0.81 - 1.65
1.24 - 2.40
25.4 × 12.7
1 × 1/2 inch
0.81 - 1.65
1.24 - 2.42
25.4
1 inch
0.81 - 2.11
1.28 - 2.90
38.1
1½ inch
1.07 - 2.11
1.57 - 2.92
25.4 × 50.8
1 × 2 inch
1.47 - 2.11
2.00 - 2.95
50.8
2 inch
1.65 - 2.77
2.20 - 3.61
76.2
3 inch
1.90 - 3.50
2.50 - 4.36
101.6
4 inch
2.20 - 4.00
2.85 - 4.88
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc.

Features

Made from high-quality galvanized low carbon steel wire, welded wire mesh is coated with a layer of PVC (polyvinyl chloride) that enhances its resistance to corrosion and weathering.

Durability: The PVC coating protects the low carbon steel wire from rust and corrosion, ensuring a long service life.

Strength: The welded construction provides a strong and stable welded wire mesh that is difficult to break or bend.

Aesthetic Appeal: Available in a variety of colors, including green, black, yellow, blue, white, and custom colors, allowing the PVC welded wire fence to blend in with different environments.

Low Maintenance: The PVC coating requires minimal upkeep and is easy to clean.

Versatility: Suitable for a wide range of applications, including residential, commercial, agricultural, and industrial settings.


Application

The PVC coating process involves heating and fusing the PVC onto the welded wire mesh, which not only protects against the elements but also adds a layer of safety by reducing sharp edges. The PVC coated welded wire mesh fencing is highly adaptable and serves a wide range of projects.

Residential Fencing: For garden and property boundaries.

Commercial Fencing: Used in schools, parks, and sports fields.

Agricultural Fencing: Ideal for creating livestock enclosures.

Garden Fencing: Protects plants and provides support for climbing plants.

Safety Partitions: Used in industrial settings for safety.

Security Fencing: Deters trespassing and theft.

Roadside Fencing: Helps control traffic and keeps animals off roads.
