Welded wire mesh, often referred to as welded wire fabric, is a versatile construction material consisting of low carbon steel wires welded together at each crossing point to form a strong and stable mesh structure. The welded wire fence is characterised by high tensile strength, durability and corrosion resistance, making the welded mesh fencing suitable for various applications such as structural reinforcement, fencing, security barriers and shelving. The welded fence mesh is available in a variety of finishes including galvanised,and PVC coated to meet specific requirements and provide additional protection from the elements.
Specification
SUNSHINE Group is the leading manufacturer of welded wire mesh! SUNSHINE Group offers a wide range of roll sizes, mesh openings, and wire diameters. The welded wire mesh of SUNSHINE Group is renowned for its precise spot welding, robust structure, flat surface, and attractive appearance.
Raw material: high quality low carbon steel wire Q195/Q235
Surface treatment: hot-dipped galvanized and electro galvanized
Size chart：
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
Durability: The galvanized coating provides a protective layer against rust and corrosion, ensuring the welded wire mesh lasts longer.
Strength: The welded wire mesh pattern contributes to its strength and resistance to impact and damage.
Low Maintenance: Galvanized welded wire mesh requires minimal maintenance due to its corrosion-resistant properties.
Uniform Surface: The welded wire mesh has a consistent appearance, making it popular for different uses such as fencing and filtration systems.

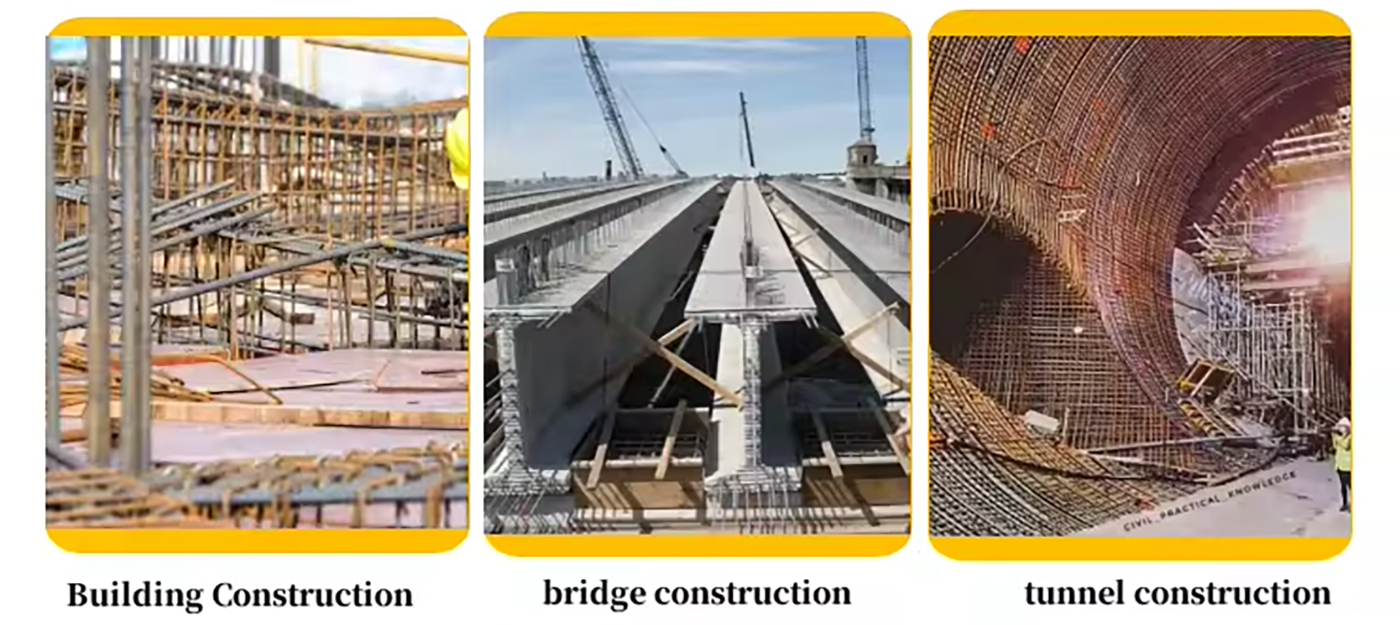

Versatility: Welded wire mesh can be used for various applications, including agricultural fences, safety guards, and construction works.
Rolling the Mesh: Tightly roll the welded wire mesh to create compact rolls.
Securing the Roll: Bind the welded wire mesh rolls with plastic straps or metal wires and protect the ends.
Wrapping: Use plastic wrap or waterproof paper to protect the welded wire mesh roll.
Labeling: Attach identification tags and barcodes.
The popular roll size are：6 feet (height) x 50 feet (length)，5 ft (height) x 100feet (length)，4 ft (height) x 150 feet (length)
