PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification

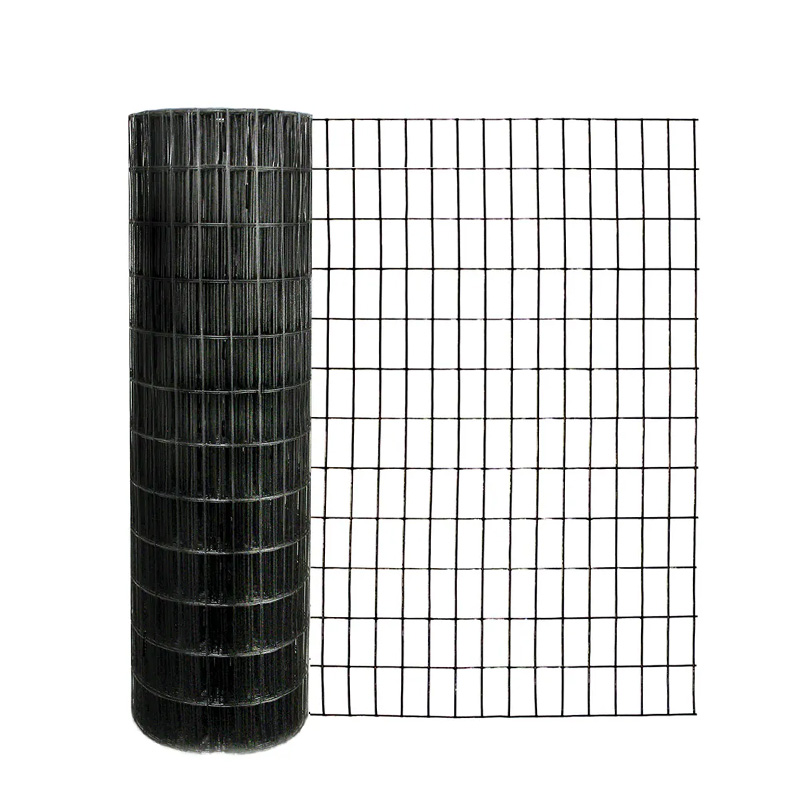

Black welded wire fencing is a versatile and durable fencing solution available in various heights, including 2ft, 3ft, 4ft, 5ft, and 6ft. This type of fencing is constructed by welding low carbon steel wires at each intersection, creating a strong and stable grid. The black vinyl coating adds an extra layer of protection against rust and corrosion while giving the black coated welded fence a sleek and aesthetically pleasing appearance.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
Common mesh sizes include 1"x1", 2"x2", and 2"x4",and the heights available in 2ft, 3ft, 4ft, 5ft, and 6ft to meet different fencing needs.
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Durability and Strength: The welded construction of the black coated welded wire mesh creates a strong and stable barrier that is highly durable.
Weather Resistance: The black coating typically consists of PVC or another type of plastic coating that protects the low carbon steel wire from the elements, including rain, snow, and UV rays, ensuring reliable performance outdoors.
Aesthetic Appeal: The black color provides a sleek, modern look that can blend well with various settings and can be used for both functional and decorative purposes.
Low Maintenance: The corrosion-resistant coating means that the black coated welded wire fence requires minimal upkeep. The black coated welded wire fence does not need to be painted or treated regularly like some other types of fencing.
Garden and Landscape Fencing:
Purpose: Protects gardens and landscaped areas from animals and pests.
Height Options: 2ft or 3ft fences are typically used for smaller gardens or flower beds, while 4ft or 5ft fences are suitable for larger gardens.
Animal Enclosures:
Purpose: Used for creating secure enclosures for pets and small livestock.
Height Options: 4ft, 5ft, and 6ft fences provide adequate height to prevent animals from jumping over.
Temporary Barriers:
Purpose: Suitable for use in construction sites, events, and other temporary applications.
Height Options: 2ft, 3ft, and 4ft fences are easy to install and remove, providing flexibility for temporary needs.
For packing black coated welded wire mesh of lengths 2ft, 3ft, 4ft, 5ft, and 6ft, use sturdy cardboard boxes or plastic wraps. Stack each size separately and ensure the black coated welded wire fences are tightly packed to prevent movement. Label each box clearly with its corresponding height and length.
