PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
Black vinyl-coated welded wire fencing is an exceptional solution for both residential and commercial applications. The black PVC coated welded wire mesh fencing combines the strength and durability of welded wire with the added benefit of a protective black vinyl coating. The coating not only enhances the aesthetic appeal by providing a uniform, sleek finish but also significantly increases resistance to rust, corrosion, and fading caused by weather conditions. The robust construction ensures long-lasting performance, making it ideal for high-security areas, agricultural enclosures, and pet containment. Its versatility allows for easy installation in various configurations, whether as standalone panels or combined with other materials for enhanced security.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |

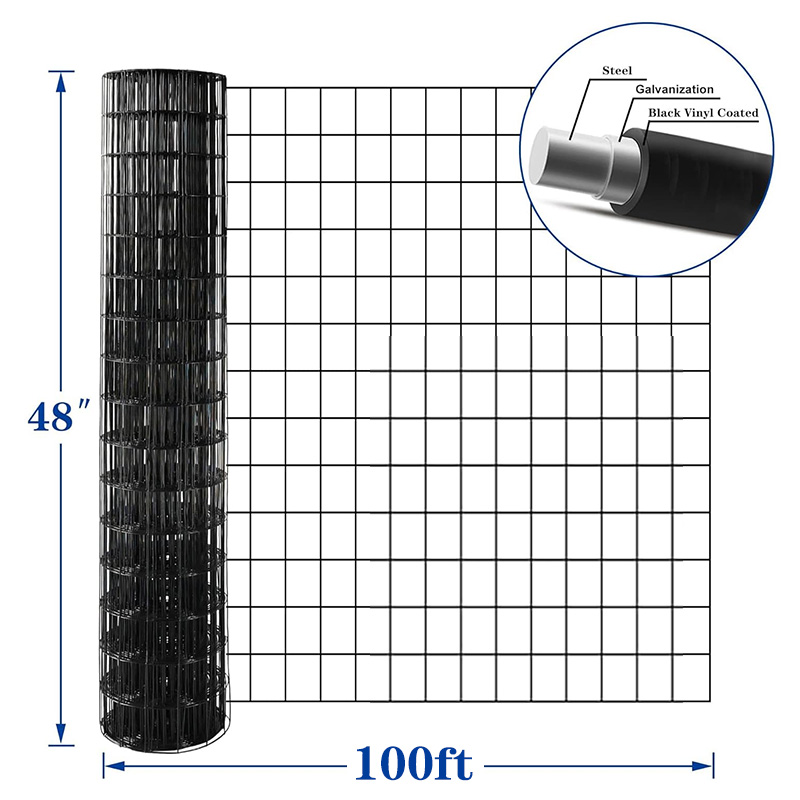

PVC black welded wire mesh is typically transported in rolls, with customers often specifying the length and width of each roll. The common sizes for black PVC-coated welded wire mesh are:3 ft(0.91m) x 50 ft(15.24m) black pvc coated welded wire,black welded wire fence 48inch (1.21m) x 100ft (30.48m),black welded wire fence 36inch (0.91m) x 100ft (30.48m).
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Durability: Made from 14-gauge low carbon steel wire, black coated welded wire mesh provides strength and rigidity, capable of withstanding harsh weather conditions and physical stress.
PVC Coating: The black PVC coating enhances the welded wire fence's resistance to corrosion and ensures a long service life. Black vinyl coating also gives the black coated welded wire fence an aesthetically pleasing appearance that can blend well with various surroundings.
Galvanized Before Welding: The iron wire is galvanized before the welding process, which adds an extra layer of protection against rust and wear.
Safety: The smooth, black coating reduces the risk of injury from sharp edges or burrs, making the black PVC coated welded wire mesh safer for use around children and animals.The black vinyl coated welded wire mesh fencing size offers a balance between height and length, making it versatile for various applications.
Residential Security: Black PVC coated welded wire mesh is used to secure residential properties, providing a strong barrier against unauthorized access while maintaining a clean and modern look with its black coating.
Agricultural Fencing: Ideal for farmland, vegetable gardens, and orchards, black PVC coated welded wire mesh helps to keep animals contained and protect crops from damage by wildlife.
Playgrounds and Recreational Areas: The black welded wire fence is used in playgrounds and sports facilities for safety and security, often providing a barrier that is both strong and visually unobtrusive.
Park and Playground Fencing: Often used in public areas for its safety, durability, and low maintenance, providing a secure yet unobtrusive barrier.
