Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification
The GI welded wire mesh is commonly used in agricultural settings for livestock containment, in gardening to protect plants, and in construction for reinforcing concrete structures. Its galvanized finish makes the GI welded wire mesh a popular choice for durability and low maintenance, providing a reliable solution for both functional and aesthetic fencing needs.
Corrosion Resistance: The galvanization process ensures that the GI welded wire mesh is protected against rust and other forms of corrosion, making it suitable for all-weather use.
Uniformity: The consistent mesh size ensures even strength and appearance, which is important for both functionality and aesthetics.
Versatility: The GI welded wire mesh can be used in a variety of applications, from construction sites to home gardens, providing a secure and reliable barrier.
Ease of Installation: Despite its strength, the GI welded mesh is designed to be relatively easy to handle and install, making the GI welded wire mesh a popular choice for DIY projects and professional installations alike.
The galvanization process ensures that the GI welded wire mesh is durable and maintains its integrity in various weather conditions, including rain, snow, and sunlight. This makes the GI welded wire mesh a popular choice for applications such as:
Secure fencing for gardens, yards, and livestock enclosures.
Safety barriers in construction zones.
Reinforcement in concrete and masonry projects.
Providing support for plants in vertical gardening.
 |  |

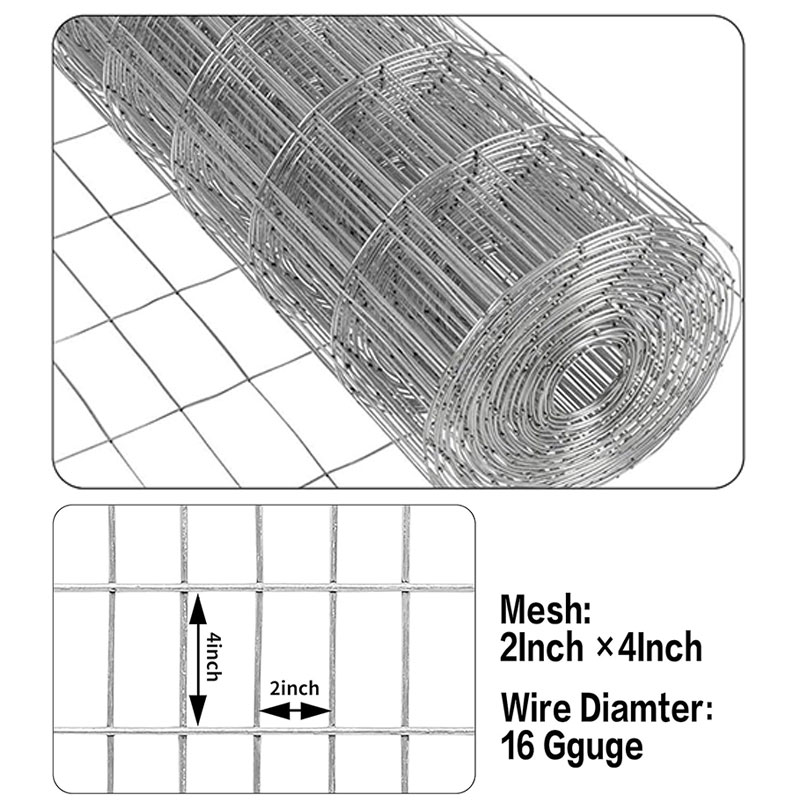

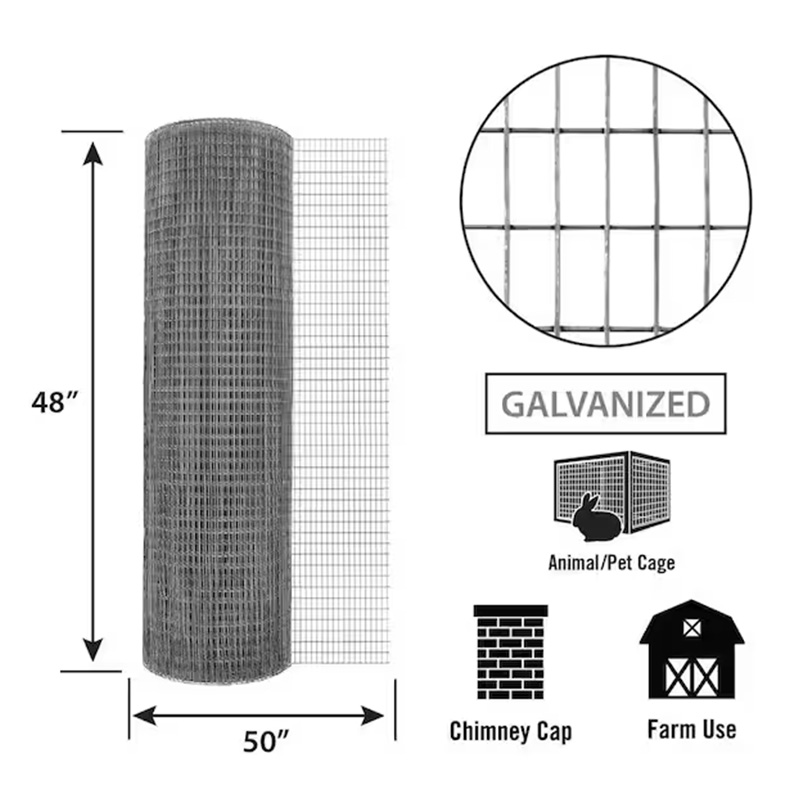

The 2-inch by 4-inch openings are ideal for applications that require medium-sized barriers, such as gardening, animal enclosures, and security fencing. The height of 48 inches offers a substantial barrier that can deter unwelcome entries and provide privacy.
Here is the mesh size of the GI welded wire mesh:
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
