1 x 2 inch mesh size 48 inch high galvanized welded wire mesh rolls

Galvanized welded wire mesh introduction

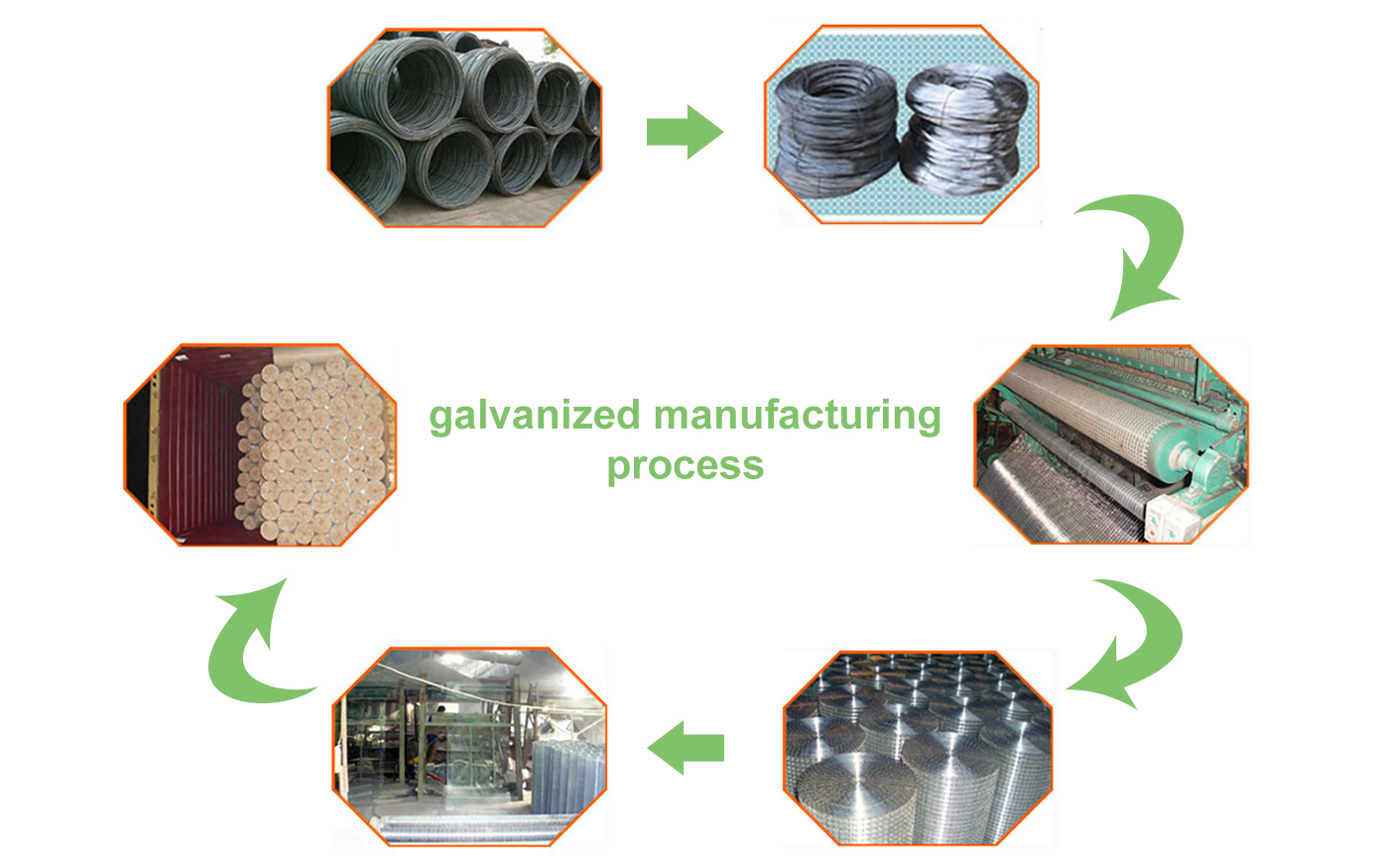

Galvanized welded wire mesh is produced through a combination of the welding and galvanization processes.The "welding before galvanization" manufacturing process includes:

First, the welded wire mesh is created by intersecting low carbon steel wires and welding the iron wires together at the points of contact using electric resistance welding or spot welding techniques. This step ensures that the iron wires are securely fastened together, forming a stable and sturdy grid pattern. The resulting welded mesh is then prepared for the galvanization process by cleaning the welded wire mesh to remove any surface impurities like grease, dirt, or oxides.

After preparation, the welded wire mesh is dipped into a bath of molten zinc. The zinc coats the low steel wires and reacts with them to form a protective layer of zinc iron alloy. This layer protects the underlying low carbon steel from corrosion and oxidation, significantly enhancing its durability and weather-resistance, especially in outdoor environments. Once the galvanized welded wire mesh is coated, it is dried and cooled, after which it can be cut, formed, and packaged according to specific requirements.

The end product, galvanized welded wire mesh, is highly resistant to corrosion and is ideal for applications such as reinforcement in construction, animal enclosures, fencing, machinery guards, and filtration systems where long-term durability and resistance to environmental factors are desired.

Galvanized welded wire mesh fence features

Corrosion Resistance: The zinc coating protects the low carbon steel wires from rust and extends the service life of the welded wire mesh.

Strength and Rigidity: The welding process ensures that the intersections of the iron wires are strong and stable, providing a rigid structure.

Versatility: Available in various wire gauges, mesh sizes, and panel dimensions, allowing for customization to fit specific project requirements.

Ease of Installation: The welded wire mesh roll allows for quick and easy installation, with options for mounting the welded wire mesh to walls, posts, or other structures.

Cost-Effectiveness: Galvanized welded wire mesh is often more economical than other materials offering similar strength and durability.

Galvanized welded wire mesh sizes

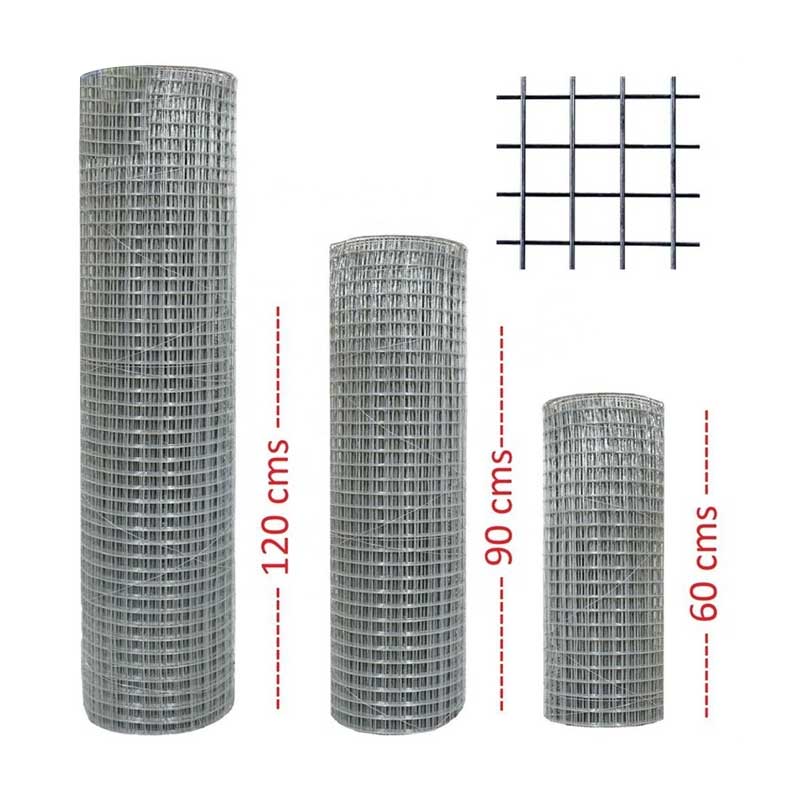

1 inch x 2 inch x 48 inch welded wire,2 inch x 4 inch x 48 inch welded wire fence and 2 inch x 4 inch x 72 inch welded wire fence are popular for construction and poultry projects.

The 1 inch x 2 inch mesh size are used in residential and commercial properties for added security,the smaller openings make it difficult for intruders to climb.

2 inch × 4 inch mesh size are suitable for larger animal enclosures, such as those for goats, sheep, and dogs.The larger mesh size allows for visibility and ventilation while containing larger animals.

The 48 inch or 72 inch width welded wire mesh rolls are easy to transport.

Here is the size chart of galvanized welded mesh fencing:

Special Size available at request.

Package

The galvanized welded wire mesh is packed in waterproofed paper in roll, custom packing available request.
