PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification

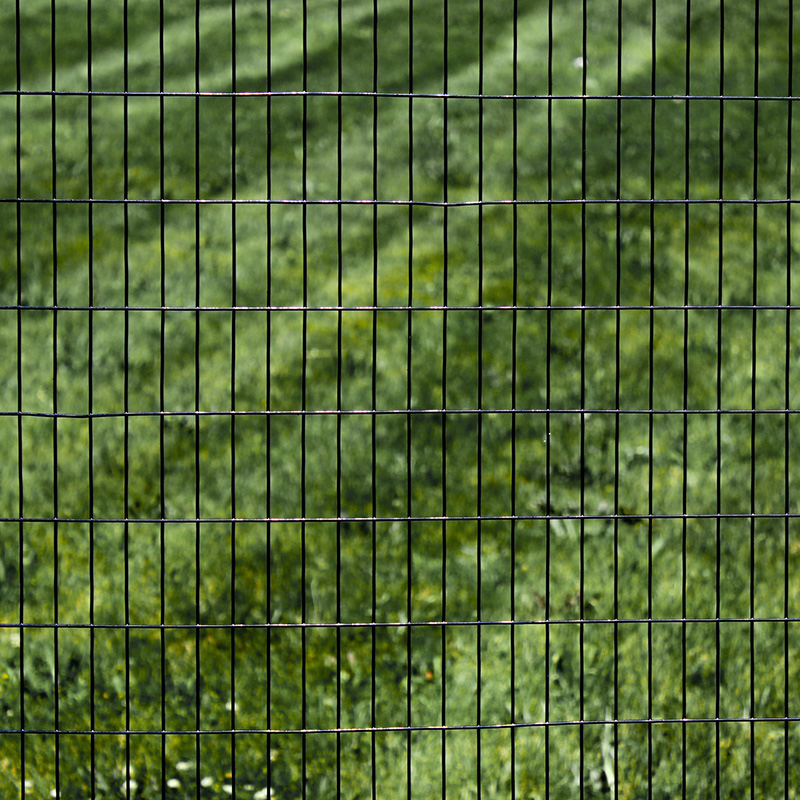

The 2 × 4 inch black vinyl coated welded wire fencing is a versatile and durable fencing option designed for various applications. The black PVC coated welded wire mesh is welded at each intersection, providing a strong and stable structure. The black vinyl coating adds an extra layer of protection against rust and corrosion, while also giving the fence a sleek and aesthetically pleasing appearance.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |

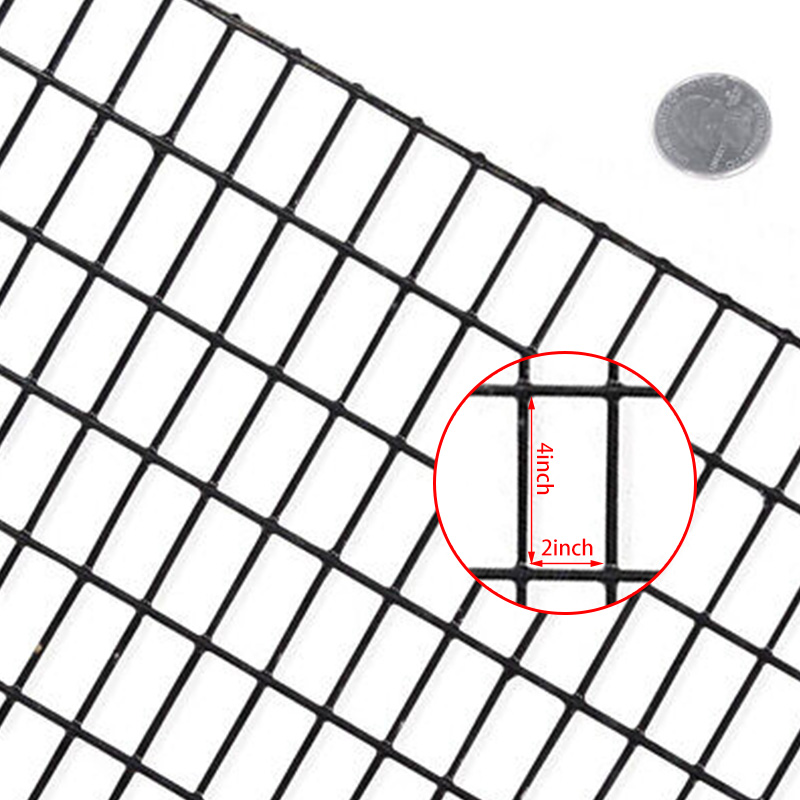

The The 2 × 4 inch means the black welded wire fencing provides rectangular holes with mesh size(mesh openings）which is 50.8mm ×101.6mm.
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Mesh Size:
Dimensions: 2 inches by 4 inches (approximately 50 mm by 100 mm)
Function: The mesh size is small enough to prevent small animals from passing through while allowing visibility and airflow.
Material:
Wire: Typically made from high-quality low carbon steel wire.
Coating: Black vinyl (PVC) coating that provides weather resistance and enhances durability.
Strength and Durability:
Welded Joints: Each intersection is welded, ensuring the black vinyl coated welded wire fence remains sturdy and maintains its shape over time.
Vinyl Coating: Protects the iron wire from rust, corrosion, and other environmental factors, extending the lifespan of the black PVC coated welded wire fence.
Aesthetics:
Appearance: The black vinyl coating gives the PVC coated welded wire fence a modern and professional look, making it suitable for both residential and commercial properties.
Garden and Landscape Fencing:
Purpose: Protects gardens and landscaped areas from animals and pests.
Benefits: The 2 × 4 inch mesh size is effective in keeping out small animals like rabbits and rodents while allowing plants to grow through the fence if needed.
Animal Enclosures:
Purpose: Used for creating secure enclosures for pets and small livestock.
Benefits: The vinyl coating ensures the safety of animals by providing a smooth surface that reduces the risk of injury.
Temporary Barriers:
Purpose: Suitable for use in construction sites, events, and other temporary applications.
Benefits: Easy to install and remove, providing flexibility for temporary needs.
Preparation:
Measure the area to be fenced and determine the required length of fencing.
Clear the area of any obstacles and mark the locations for fence posts.
Setting Posts:
Install fence posts at regular intervals (typically 6 to 8 feet apart) to provide support for the fencing.
Ensure posts are set firmly in the ground, using concrete for added stability if necessary.
Attaching the Fence:
Unroll the PVC coated welded wire fencing and attach it to the posts using appropriate fasteners such as fence staples, clips, or ties.
Ensure the black vinyl coated welded wire mesh fence is taut and properly aligned, making adjustments as needed.
Securing the Bottom:
Secure the bottom of the black PVC coated welded wire fence to the ground using stakes or by burying a portion of the fence to prevent animals from digging underneath.
