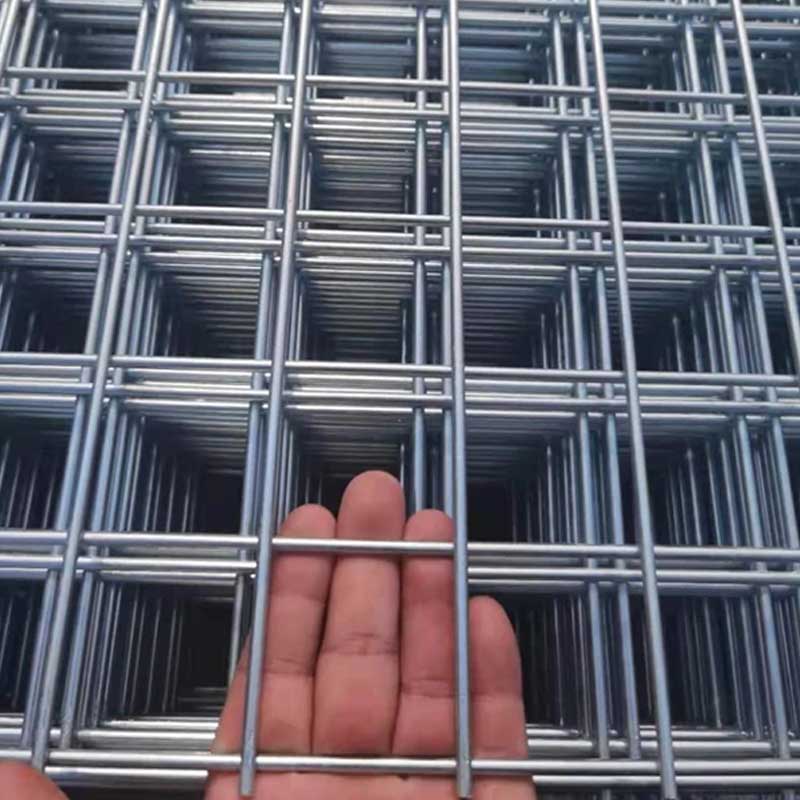

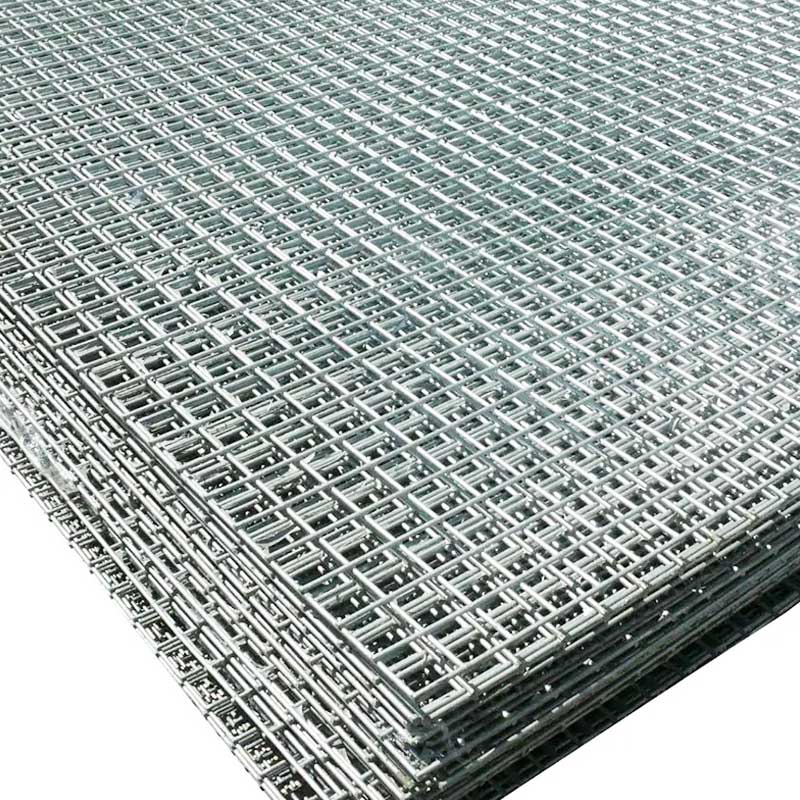

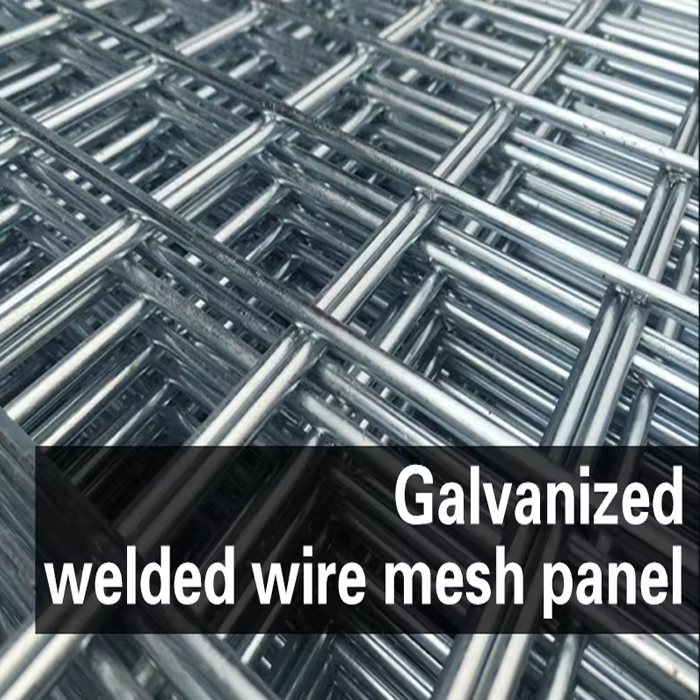

Welded wire mesh panels are a type of metal fence made by welding the intersections of low carbon steel wires to form a grid-like structure. The welded wire mesh panels offer excellent strength, durability, and versatility, making the welded wire panels suitable for a wide range of applications. The welded wire mesh panels are commonly used in industrial, commercial, and residential settings for functions such as filtering, reinforcement, and enclosures.
Specification
Welded wire mesh panels with 25mm and 50mm openings have different sized openings between the galvanized iron wires. The welded metal fence panels are made by welding the galvanized iron wires together to form a strong metal fence. The opening size affects the panel's strength, flexibility and suitability for use.
25mm Welded Panels:
The 25mm weld meah panels have 25mm openings. The smaller openings make the panels stronger and more rigid,the 25mm weld mesh fences are used in animal enclosures and bird cages. The smaller openings make the welded wire mesh fence panels less suitable for screening or filtering, as they restrict airflow and the passage of smaller particles.
50mm Openings Welded Panels:
With larger openings of 50mm, the 50mm weld mesh fence panels are better for applications where airflow and larger particles are needed. The 50mm weld mesh fences are often used in construction sites for temporary fencing, in machinery guards to allow for ventilation and the discharge of materials, and in agricultural settings for crop protection and irrigation systems. The larger openings provide a good balance between strength and permeability, making the welded wire mesh panels versatile.
 |  |
The 25mm and 50mm means the opening sizes of the welded wire mesh panels.The 25mm weld mesh means the mesh size is 25mmx25mm,the 50mm weld mesh means the opening size is 50mmx50mm.
Galvanized welded fence panels size chart
Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. | ||
Customizable Opening Size: Welded wire mesh panels are available with 25mm or 50mm openings, allowing for customization based on the specific needs of the project.
Durability: Constructed from low carbon steel wires, the welded metal fence panels are highly durable and can withstand heavy loads and harsh environmental conditions.
Resistance to Corrosion: Often galvanized coated to protect against rust and corrosion, ensuring longevity especially in outdoor settings.
Ease of Installation: These welded wire metal fence panels are designed for easy installation, with options for securing them to posts, walls, or other structures.Construction: Used for reinforcing concrete structures, as formwork for poured concrete, or as safety barriers on construction sites.
Agriculture: Ideal for creating animal enclosures, securing fences, and as a base for plant growth in horticultural applications.
Security: Employed in security fencing to protect properties, deter trespassers, and provide a visual barrier without obstructing views.
Industrial: Suitable for use as partitions or barriers in industrial settings, such as machine guards or to cover openings in walkways.
