PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.

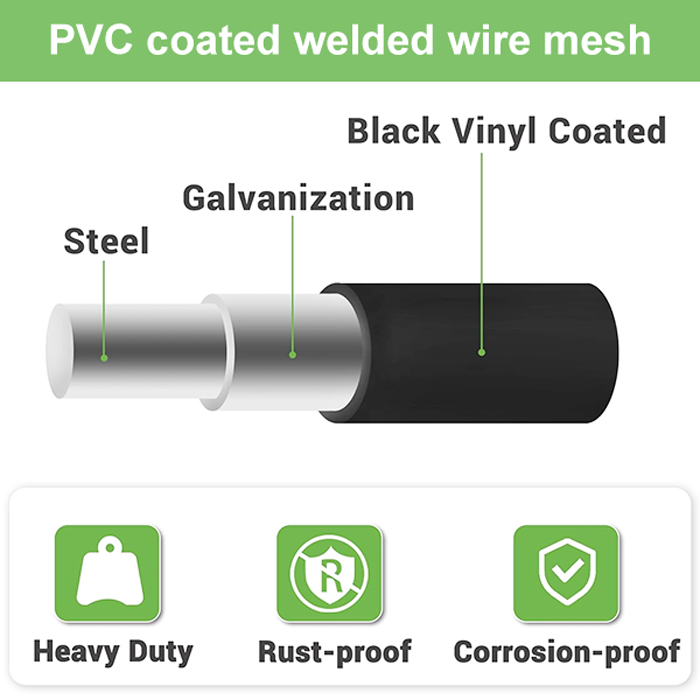

Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
The square hole PVC coated welded wire mesh means that the PVC coated welded wire mesh has square-shaped openings or apertures. The square holes are formed by the intersection of equally spaced horizontal and vertical iron wires.

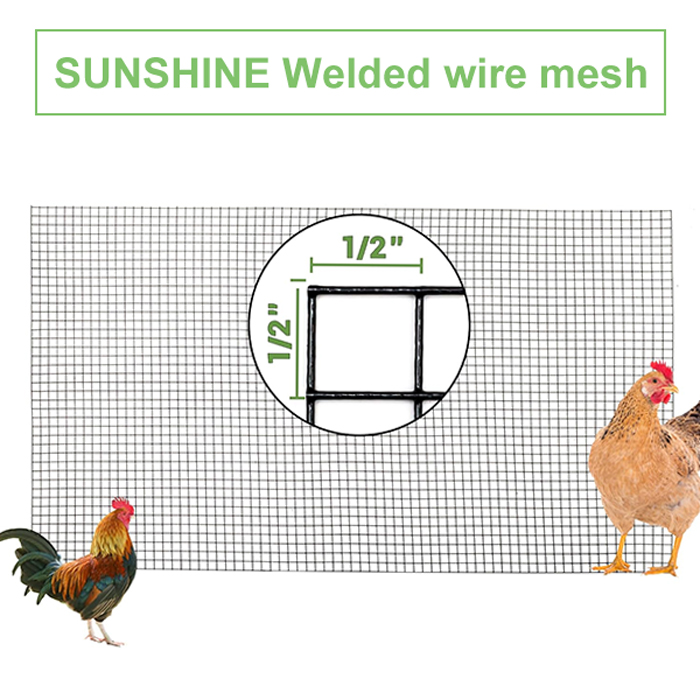

The popular PVC coated welded wire mesh opening sizes are:13mm×13mm（1/2 inch）welded mesh.And the wire popular wire guage sizes are：1 inch×1 inch 12 guage welded wire,14 guage 1 inchx1 inch welded wire,1 inch x1 inch 16 gauge welded wire.
Here is the PVC coated welded wire mesh size chart:
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |

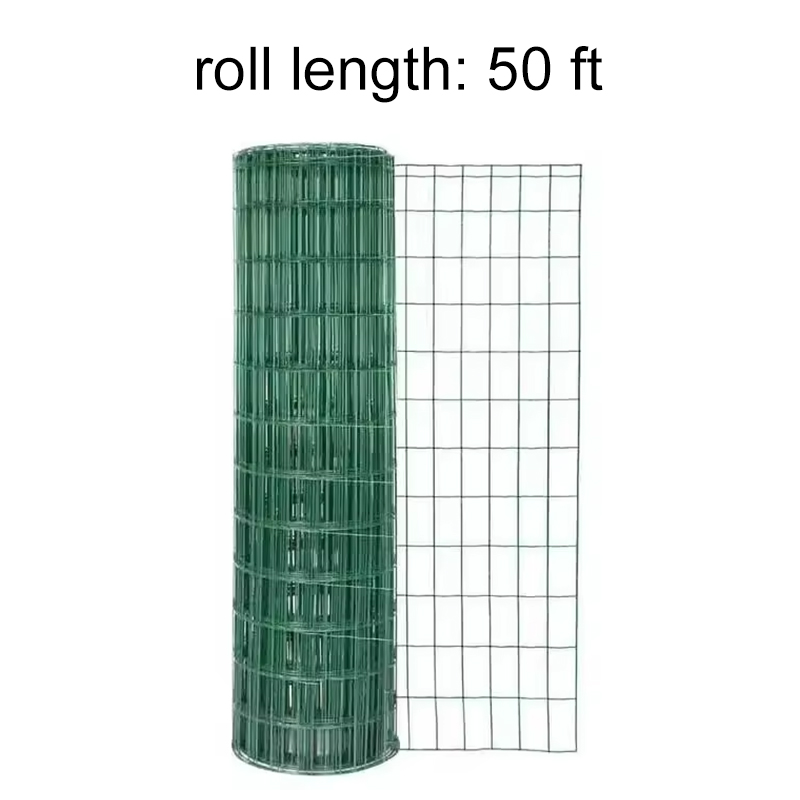

Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
 |  |
Corrosion Resistance: The PVC coating creates a barrier that protects the low carbon steel welded wire mesh from rust and corrosion, extending its lifespan.
Color Options: Available in a range of colors such as green, black, yellow, blue, white, and custom colors, allowing for aesthetic versatility in design.
Durability: The PVC coating is dense and prevents peeling or flaking, ensuring long-term use.
Versatility: Suitable for a wide range of applications, from construction and agriculture to security and landscaping.
Industrial Applications: Used for machine protection covers, ranch fenders, passage fences, and window protection.
Agriculture: Ideal for fowl cages, egg baskets, and foodstuff baskets.
Construction: Commonly used in building insulation walls, protective covers, and as a material for fencing and storage solutions.
Landscaping and Decorative Fencing: The PVC coating not only protects but also enhances the visual appeal, making the PVC coated welded wire mesh suitable for decorative fencing and landscaping features.
