Welded wire mesh, often referred to as welded wire fabric, is a versatile construction material consisting of low carbon steel wires welded together at each crossing point to form a strong and stable mesh structure. The welded wire fence is characterised by high tensile strength, durability and corrosion resistance, making the welded mesh fencing suitable for various applications such as structural reinforcement, fencing, security barriers and shelving. The welded fence mesh is available in a variety of finishes including galvanised,and PVC coated to meet specific requirements and provide additional protection from the elements.
Specification
Galvanized welded wire mesh is a popular metal mesh fence made by welding together a series of low carbon steel wires at each intersection point to form a square or rectangular hole mesh.and then applying a zinc coating to the welded wire mesh surface. The zinc coating, known as galvanization, provides a protective layer against corrosion, making the galvanized welded wire mesh suitable for use in outdoor environments.
Corrosion Resistance: The galvanized coating protects the welded wire mesh from rust and corrosion, making the galvanized welded wire mesh suitable for use in outdoor environments and in contact with moisture.
Durability: The welded construction ensures that the welded wire mesh is strong and can withstand heavy loads and pressures.
Versatility: Available in different wire gauges, mesh sizes, and roll dimensions, allowing the galvanized welded wire mesh to be tailored to specific project requirements.
Aesthetic Appeal: The smooth, uniform appearance of the welded wire mesh makes it suitable for both functional and decorative applications.
Easy to Install: The galvanized welded wire mesh can be easily cut to size and installed using various fastening methods, such as staples, nails, or special wire mesh clamps.
 |  |

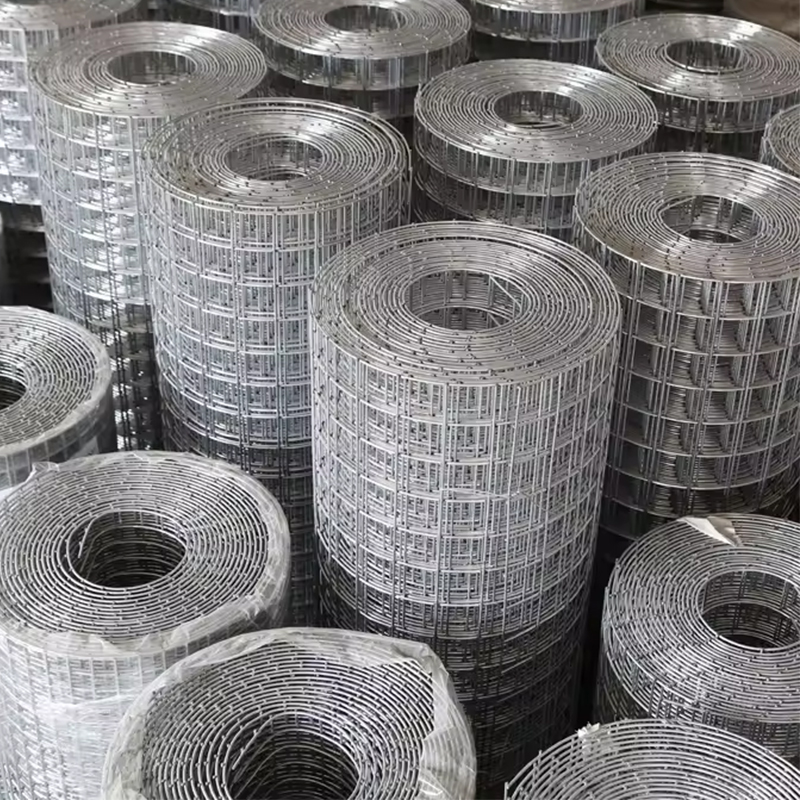

The galvanized welded wire mesh are packed in rolls with plastic straps or metal wires and protect the ends,the popular galvanized welded wire mesh rolls sizes are:5 ft x 100 ft 12.5 gauge welded wire fence,6 ft x 100 ft 12.5 gauge welded wire fence.The 5 feet and 6 feet mean the width(or height) of the galvanized welded wire mesh rolls,and the 100 ft means the length of the galvanized welded wire mesh rolls.
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
