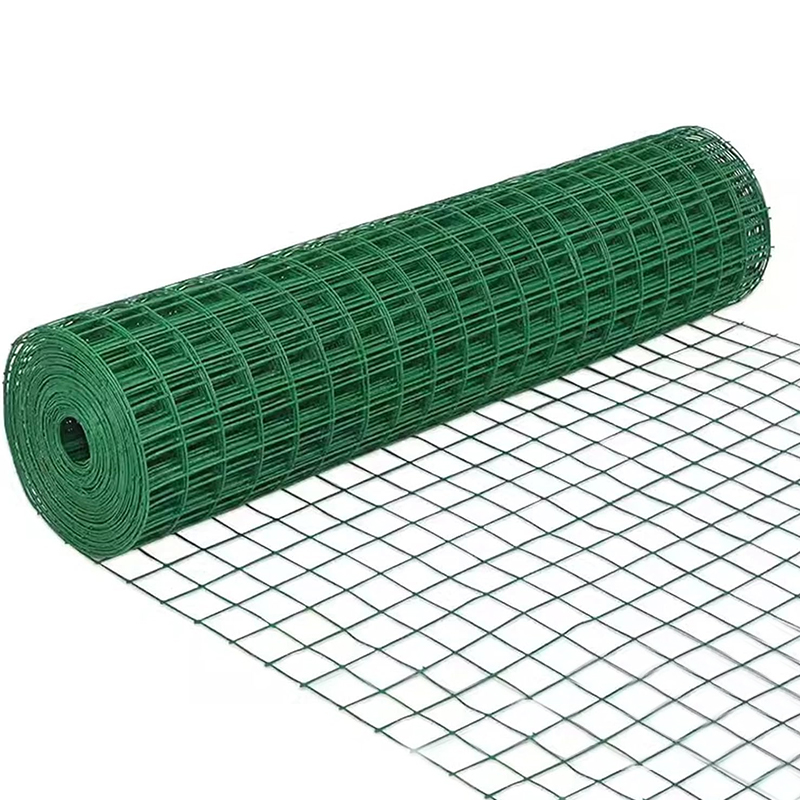

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
Vinyl coated welded wire fencing in 10 gauge, 12 gauge, and 14 gauge options offers a versatile and durable solution for a wide range of applications. The vinyl coating enhances the welded wire fencing's longevity and aesthetic appeal, making it suitable for both functional and decorative purposes. Whether you need high-strength welded wire fencing for large animals and high-security areas, medium-strength welded fencing for gardens and pets, or light-duty welded fencing for small animals and DIY projects, there is a vinyl coated welded wire fencing option to meet your specific needs.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
Size chart of PVC coated welded wire mesh
10 gauge vinyl coated welded wire fencing: Wire Diameter is 3.4 mm before coating. Suitable for high-security areas, large animal enclosures, and heavy-duty applications.
12 gauge vinyl coated welded wire fencing: Wire Diameter is 2.7 mm before coating. Ideal for medium-security areas, garden fencing, and general-purpose enclosures.
14 gauge vinyl coated welded wire fencing: Wire Diameter is 2.0 mm before coating. Suitable for light-duty fencing, small animal enclosures, and decorative purposes.
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
Enhanced Protection: The vinyl coating provides an additional layer of protection against rust, corrosion, and weathering.
Smooth Finish: The coating offers a smooth and attractive finish, available in various colors like green, black, and white.
Long-Lasting: The combination of welded wire and vinyl coating ensures extended lifespan and durability.
Weather Resistance: The vinyl coating makes the PVC coated welded wire mesh fencing resistant to harsh weather conditions, including rain, snow, and UV rays.

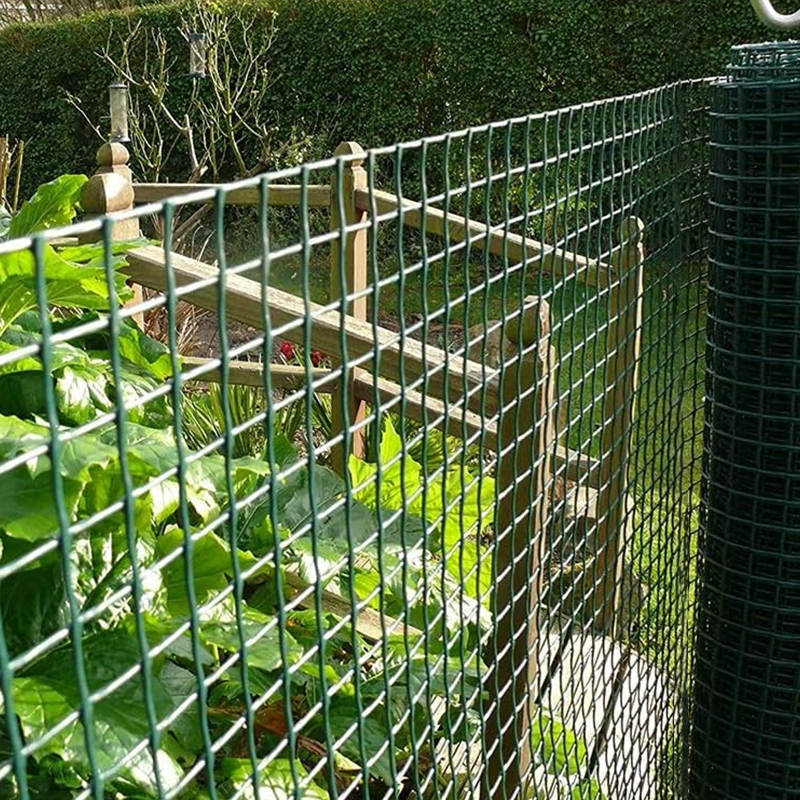

Easy to Clean: The vinyl coating makes the PVC welded wire fencing easy to clean and maintain, reducing the accumulation of dirt and debris.Residential Fencing: Vinyl-coated welded wire fencing is ideal for securing residential properties. PVC coated welded wire mesh is strong enough to deter intruders while being aesthetically pleasing, available in various colors to complement home exteriors.
Agricultural Use: On farms, the PVC welded wire fencing is used to contain livestock securely while resisting the harsh weather conditions typical of rural areas. The durability and rust resistance make the PVC welded wire fencing a long-lasting option for farmers.
Industrial and Commercial Sites: For businesses and industrial sites, vinyl-coated welded wire fencing provides a secure perimeter around facilities. PVC coated welded wire fencing prevents unauthorized access and protects against vandalism or theft while withstanding environmental factors like chemicals and debris.
Sunshine Fencing is a leading wire mesh manufacturer based in Shijiazhuang City, China, specializing in a broad range of wire mesh solutions. With over 20 years of experience, we are renowned for our innovative approach and high-quality fence products that cater to industries such as agriculture, construction, mining, and packaging. Our state-of-the-art factory, spanning 50,000 square meters, is equipped with modern technology and advanced equipment. We proudly export to over 100 countries, with annual sales exceeding $60 million. Sunshine Fencing provides over 200 wire mesh solutions and is dedicated to delivering dependable and competitive products in the metal fence and steel wire manufacturing sector. Sunshine Fencing has supplied many clients over the world. You can consult our wire experts for more detailed solutions.
