Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification

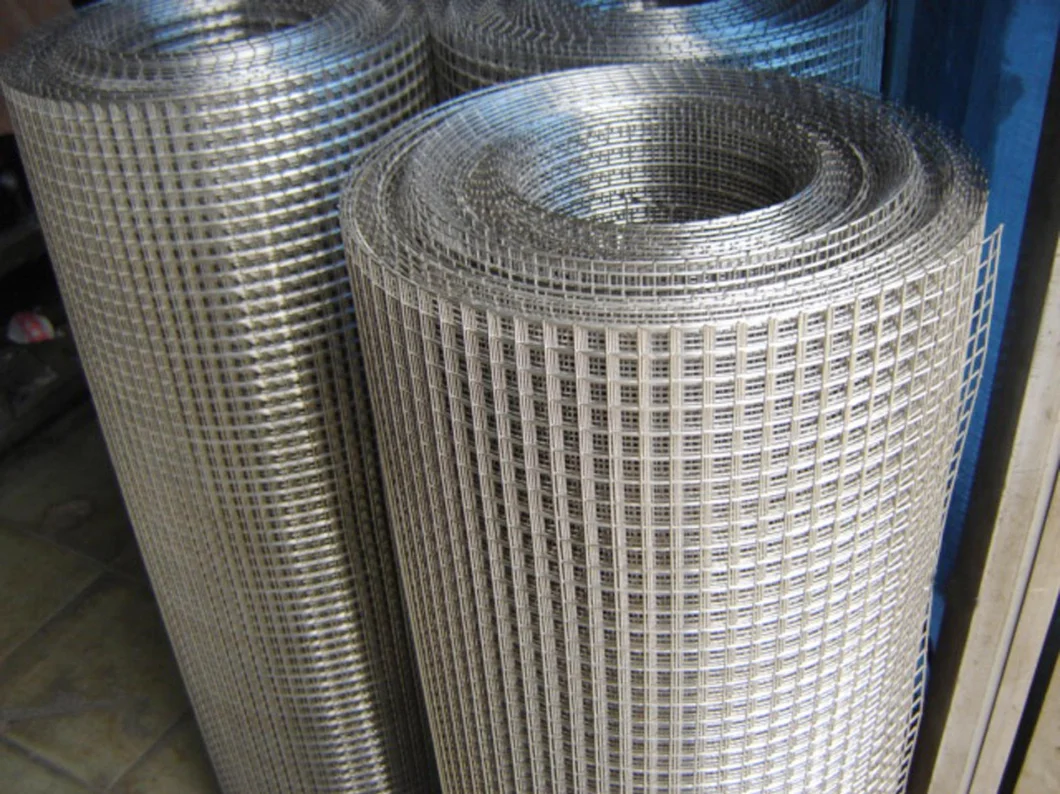

The 5 ft x 100 ft means the size of the galvanized welded wire mesh rolls.After the production of galvanized welded wire mesh is completed, it is usually cut to a certain size by workers and rolled into mesh rolls for easy transportation. The number 5ft represents the width of the mesh roll and the 100 feet means the length of the welded wire mesh roll.
What is the 14 guage galvanized welded wire mesh?
The welded wire mesh is a type of metal fence that is created by welding crossing iron wires together at the intersections. The welding process can be either resistance welding (where the heat generated by resistance to the flow of electric current melts the wire at the points of contact) or arc welding (where a separate electrode generates an electric arc to melt the wire at the joints). The purpose of galvanization is to protect the welded wire mesh from rust and corrosion,galvanized welded wire mesh is known for its strength, rigidity, and resistance to sagging or tearing.
And the "gauge" refers to the thickness(wire diameter) of the iron wire used to create the welded wire mesh. The lower the gauge number, the thicker the iron wire. For example, a 14-gauge wire is thicker than a 16-gauge wire.
The popular sizes of the welded wire mesh are:11 gauge welded wire mesh,12 gauge welded wire fencing,14 gauge welded wire fencing ,18 gauge welded wire mesh,19 gauge welded wire mesh.
Galvanized welded wire mesh size chart
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
Corrosion Resistance: The zinc coating protects the low carbon steel welded wire mesh from oxidation and corrosion, even in harsh environments.
Durability: The welding of the wires at each intersection provides greater stability compared to woven mesh, reducing the likelihood of unraveling or breaking.
Strength and Stiffness: The structure offers high tensile strength and is less prone to deformation.
Visibility and Ventilation: The open weave design allows for good visibility and airflow, which is essential in many applications like animal enclosures and machinery guards.
 |  |

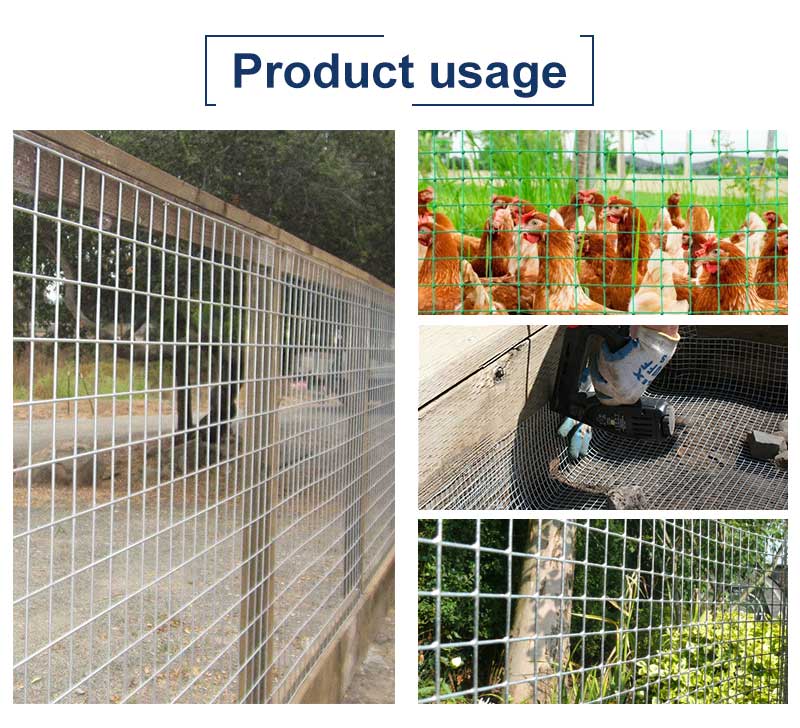

Construction Reinforcement: Used in concrete slabs, pavements, and foundations to improve strength and load distribution.
Animal Husbandry: In animal cages, pens, and shelters to provide confinement while allowing ventilation and clear visibility.
Industrial Applications: As filters or screens in machinery, conveyors, and other equipment to remove debris or separate materials.
