14 gauge 1 inch x 2 inch rectangular hole welded wire mesh rolls

Galvanized Welded Wire Mesh is a type of wire product made from high-quality iron wire, welded together at intersections, and then coated with zinc for added durability and resistance. This protective coating, or 'galvanization', helps guard the welded wire mesh against corrosion and rust, ensuring its longevity.

The carbon steel wires in this type of welded wire mesh are arranged horizontally and vertically, creating a grid-like structure, and all the intersections are firmly welded together. The precision and stability offered by welded joints make the welding structure robust and ensure uniformity.


Specification

The 100mm x 50mm welded mesh is a highly durable and versatile metal fence, characterized by its rectangular openings. This specific configuration is achieved by welding low carbon steel wires at each intersection, creating a sturdy and rigid grid. The galvanized welded wire mesh can offer unique benefits in terms of strength and corrosion resistance.

The 100mm x 50mm is the mesh size of the welded wire mesh.And 1inch x 2inch x 48inch welded wire is also popular for construction projects.

14 gauge 1 inch x 2 inch rectangular hole welded wire mesh rolls14 gauge 1 inch x 2 inch rectangular hole welded wire mesh rolls

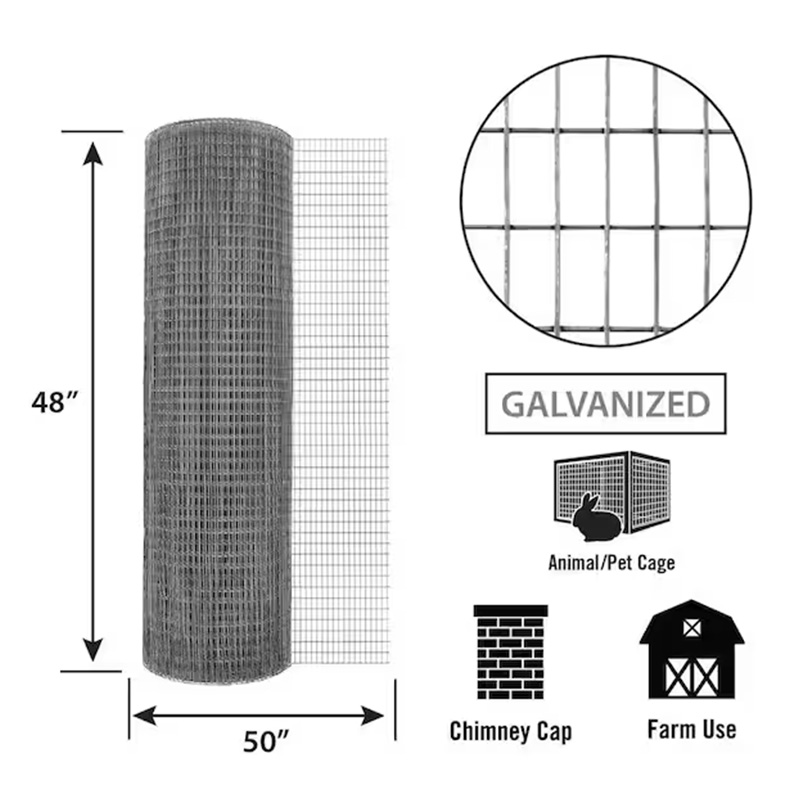

What is 1 x 2 x 48 welded wire?

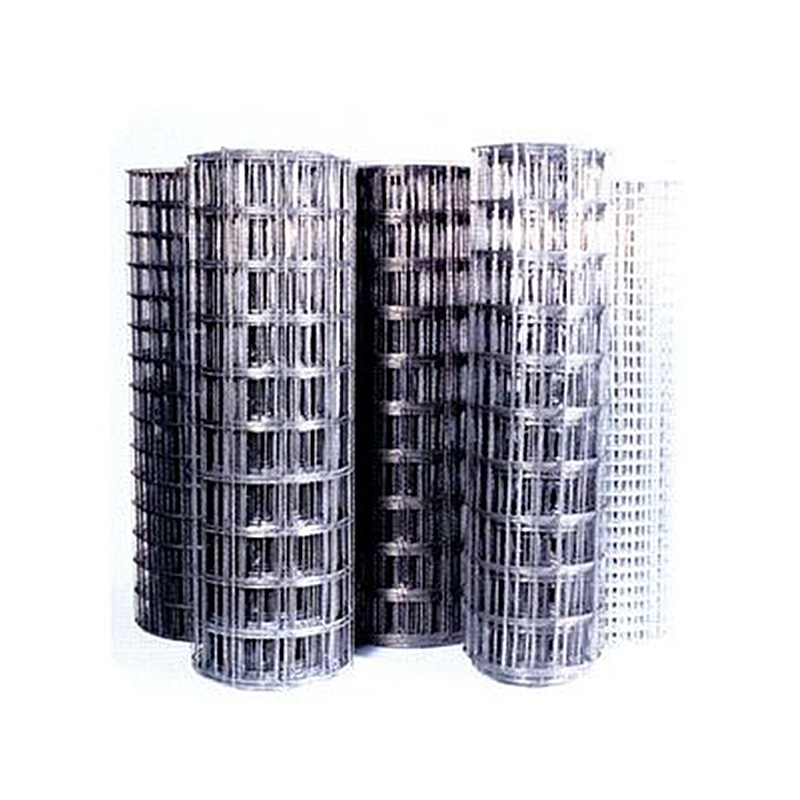

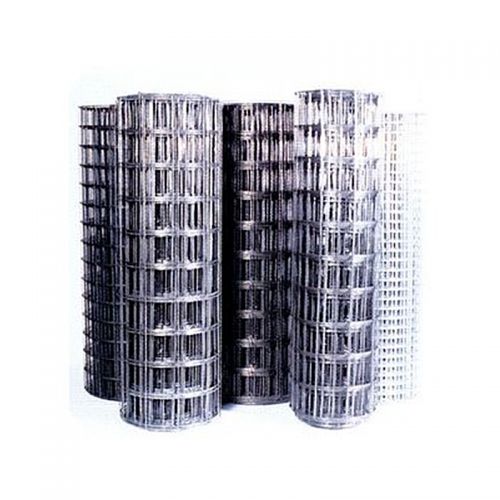

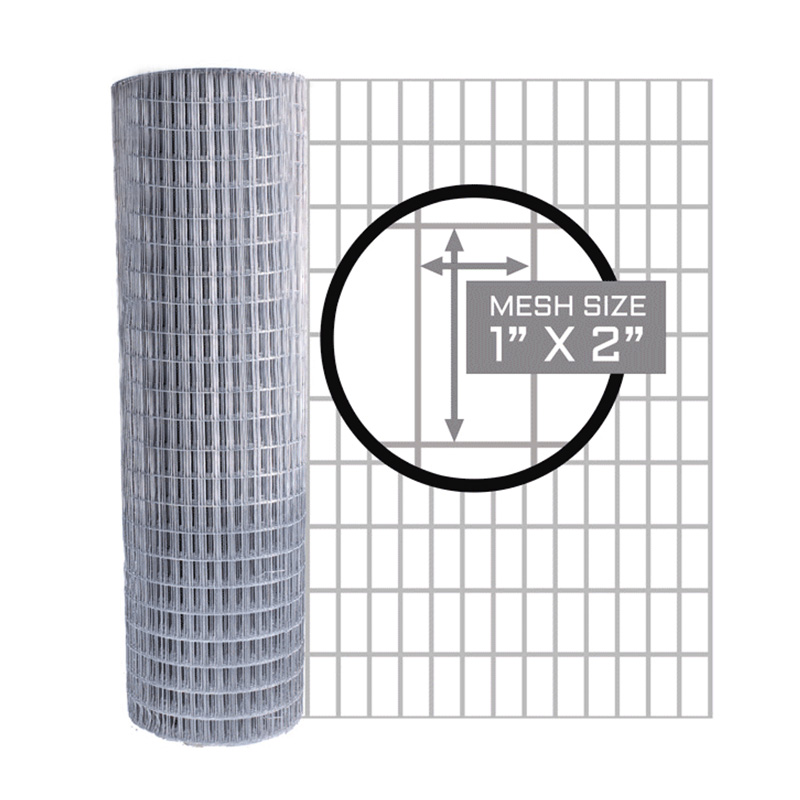

The welded wire mesh is usually rolled into rolls for packaging and transportation.The 1 inch(25.4mm)×2 inch(50.8mm) means the mesh openings of the welded wire mesh.And the 48 inch means the width(tall) of the welded wire mesh roll.

MeshMesh Cardinal NumberWire Range
MMInchMM-MM
6.35X6.351/4"X1/4"40.45--0.70
8.47X8.471/3"X1/3"30.50--0.80
9.53X9.533/8"X3/8"2.60.50--0.90
12.7X12.71/2"X1/2"20.50--1.20
15.9X15.95/8"X5/8"1.60.60--1.20
19.1X19.13/4"X3/4"1.330.60--1.60
25.4X25.41"X1"10.65--1.90
38.1X38.11-1/2"X1-1/2"0.671.00--2.00
50.8X50.82"X2"0.51.20--2.10
76.2X76.23"X3"0.3331.70--2.50
101.6X101.64"X4"0.251.70--2.50
25.4x12.71"x1/2"1.50.65--1.60
50.8x25.42"x1"0.751.20--1.90
63.5x50.82-1/2"x2"0.451.70--2.50
76.2x50.83"x2"0.421.70--2.50
101.6x50.84"x2"0.3751.70--2.50
101.6x63.54"x2-1/2"0.3251.70--2.50
101.6x76.24"x3"0.291.70--2.50



Features of rectangular welded wire mesh rolls

Rectangular Openings: The 100 x 50mm or 1 × 2 inch openings provides a balanced combination of strength and visibility, making the welded wire mesh fence suitable for a wide range of applications.

High Tensile Strength: The welded intersections ensure the welded wire mesh maintains its integrity under stress, providing robust support and security.


Applications of welded wire mesh rolls

Construction: Ideal for reinforcing concrete structures such as slabs, walls, and columns. The rectangular openings allow for better integration with rebar and other structural components.

Fencing and Enclosures: Perfect for creating secure fencing for gardens, livestock, and property boundaries. The 100 x 50mm openings provide a good balance between security and visibility.

Industrial Applications: Used in machine guards, safety barriers, and storage solutions. The welded wire mesh offers robust protection while allowing for ventilation and visibility.

Agriculture: Suitable for animal cages, pens, and crop protection. The rectangular openings facilitate easy access and management while ensuring security.


The rectangular hole welded mesh(welded mesh 100mm x 50mm,1inch x 2inch welded wire) is a reliable and adaptable solution for a wide range of applications. Its strength, durability, and specific rectangular opening design make the welded wire mesh suitable for construction, fencing, industrial, agricultural, and DIY uses. Whether you need enhanced structural support or a secure enclosure, the galvanized welded wire mesh offers the versatility and performance required to meet your needs.
