Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification

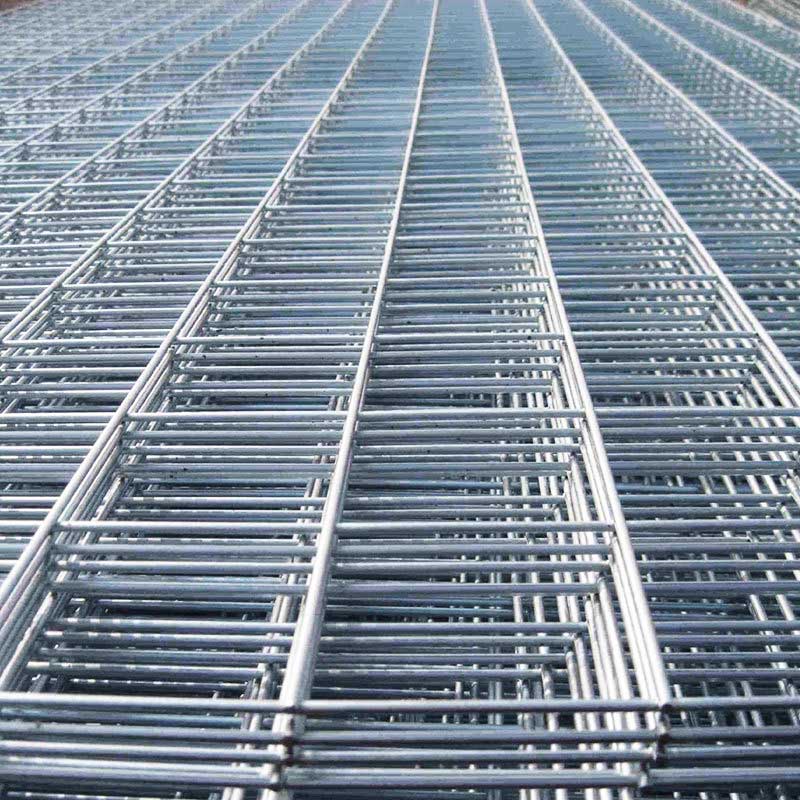

The welded wire fence panel is made of horizontal and vertical iron wires welded together to form a grid pattern. The wire mesh panels are made from low carbon steel and come in sqaure shaped holes.
The welding process makes the iron wires stick together, so the iron wires don't come undone or move around compared to traditional woven wire fences. This structure is strong and secure, making welded wire fence panels ideal for both residential and commercial fencing.
The welded wire mesh panels can be installed quickly and easily, and can be coated with zinc to improve resistance to rust and corrosion.
Durability: Made from low carbon steel wires that are zinc-coated (galvanized) to protect against corrosion, providing a long-lasting fencing solution.
Strength: The welding process ensures that the intersections of the iron wires are strong and secure, making the weld mesh fence panels resistant to bending and breaking.
Versatility: Available in different mesh sizes and patterns, allowing for customization based on the requirements of the project.
Visibility: The grid pattern allows for good visibility through the welded wire mesh fence panels, which can be an advantage in certain applications.
Galvanized welded fence panels size chart
Opening | Wire diameter | ||
Inch | mm | BWG | mm |
1" × 1" | 25mmx25mm | 14# - 11# | 2.0mm - 3mm |
2" × 1" | 50mmx25mm | 14# - 8# | 2.0mm - 4mm |
2" × 2" | 50mmx50mm | 14# - 8# | 2.0mm - 4mm |
3" × 2" | 75mmx50mm | 14# - 6# | 2.0mm - 5mm |
3" × 3" | 75mmx75mm | 14# - 6# | 2.0mm - 5mm |
4" × 2" | 100mmx50mm | 14# - 4# | 2.0mm - 6mm |
4" × 4" | 100mmx100mm | 14# - 4# | 2.0mm - 6mm |
5" × 5" | 125mmx125mm | 14# - 4# | 2.0mm - 6mm |
6" × 6" | 150mmx150mm | 14# - 4# | 2.0mm - 6mm |
Material | Low carbon steel wire | ||
Note | Special size and specifications can be made according to customers requires. | ||
 |  |
Agricultural Fencing: Used for livestock containment, poultry enclosures, and crop protection.
Industrial and Commercial Security: Provides a secure barrier around industrial sites, warehouses, and commercial properties.
Residential Fencing: Ideal for home gardens, pools, and boundary lines, offering security and aesthetic appeal.

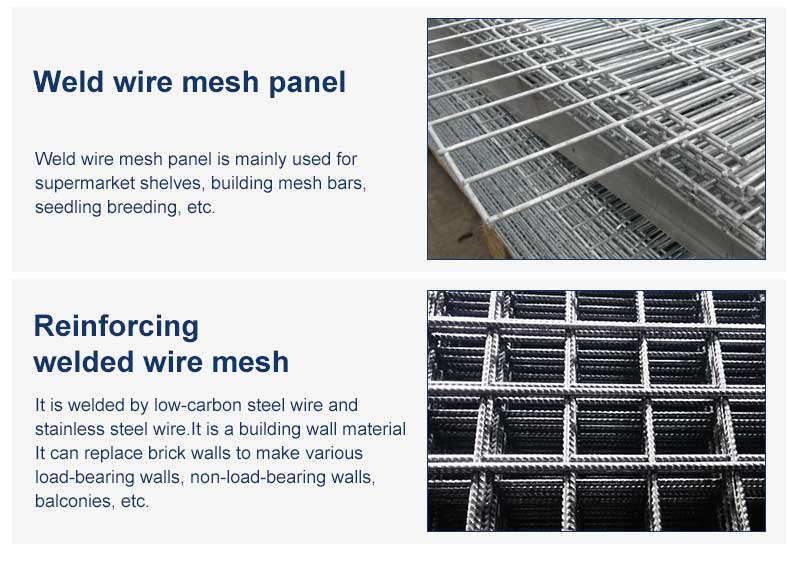

Construction: Used as a reinforcement in concrete structures, providing strength and stability to the construction.
Safety Guards: Serves as a protective barrier around machinery and dangerous equipment in industrial settings.
