Galvanized welded wire mesh is a type of wire screen constructed from high quality low carbon steel wire or stainless steel wire. The galvanization manufacturing process provides zinc coating which helps reduce corrosion and adds to the overall durability of the galvanized welded wire mesh.
The word "welded" refers to the process used to fuse the crossing joints of the wire. Each intersection of the wire is welded, providing a secure, rigid, and sturdy arrangement. This construction method also assures a flat and uniform structure.
Specification

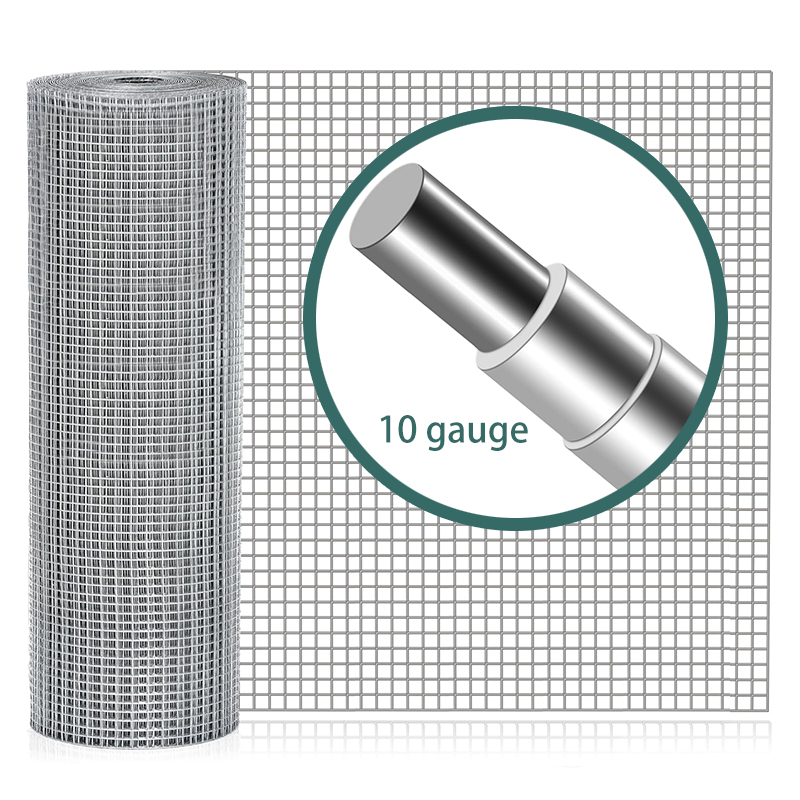

10 gauge galvanized welded wire mesh is one of the metal mesh fences that is widely used in various construction and agricultural applications. Made from low carbon steel wire, the galvanized welded wire mesh is characterized by its corrosion resistance due to the galvanization process, which coats the low carbon steel wire in zinc to protect the welded wire mesh from rust and other environmental factors.
The galvanized welded wire mesh is available in different sizes, with the wire diameter and aperture sizes varying to meet specific project requirements.
 |  |
Thickness and Strength: The 10 gauge (approximately 2.54 mm) provides substantial thickness and high tensile strength, making the galvanized welded wire mesh extremely durable and capable of withstanding heavy loads.
Corrosion Resistance: The galvanization process coats the low carbon steel with a layer of zinc, which protects against rust and corrosion, extending the lifespan of the galvanized welded wire mesh in various environmental conditions.
Uniform Grid Pattern: Precision-welded intersections create a consistent grid pattern, ensuring reliability and stability for various applications.
Versatility: Available in different mesh sizes and dimensions to suit specific project requirements.
Ease of Installation: Can be easily cut, shaped, and installed using basic tools.
Aesthetic Appeal: Offers a clean, professional look suitable for both functional and decorative purposes.
Construction Reinforcement: Used as reinforcement in concrete structures such as walls, floors, bridges, and tunnels due to its ability to withstand significant stress.
Fencing and Security: Ideal for creating strong, secure perimeters around properties, industrial sites, and public spaces.
Animal Enclosures: Suitable for building sturdy cages, aviaries, and kennels that require durability and safety.
Road Safety Barriers: Employed in highway barriers, guardrails, and crash barriers to enhance road safety.
The different galvanized welded wire mesh sizes are suitable for various applications.
Heavy-Duty Uses: 10 gauge galvanized welded wire mesh is ideal for high-security and industrial applications requiring maximum strength.
Medium-Duty Uses: 14 gauge welded wire mesh suits residential security and medium to large animal enclosures.
Light-Duty Uses: 16 gauge galvanized welded wire is great for general residential and small animal enclosures.
Decorative and Low-Duty Uses: 18 gauge welded wire mesh fencing is perfect for ornamental fencing and light-duty applications.
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
