10 gauge 12 gauge black coated welded wire mesh fence

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.

Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.


Specification

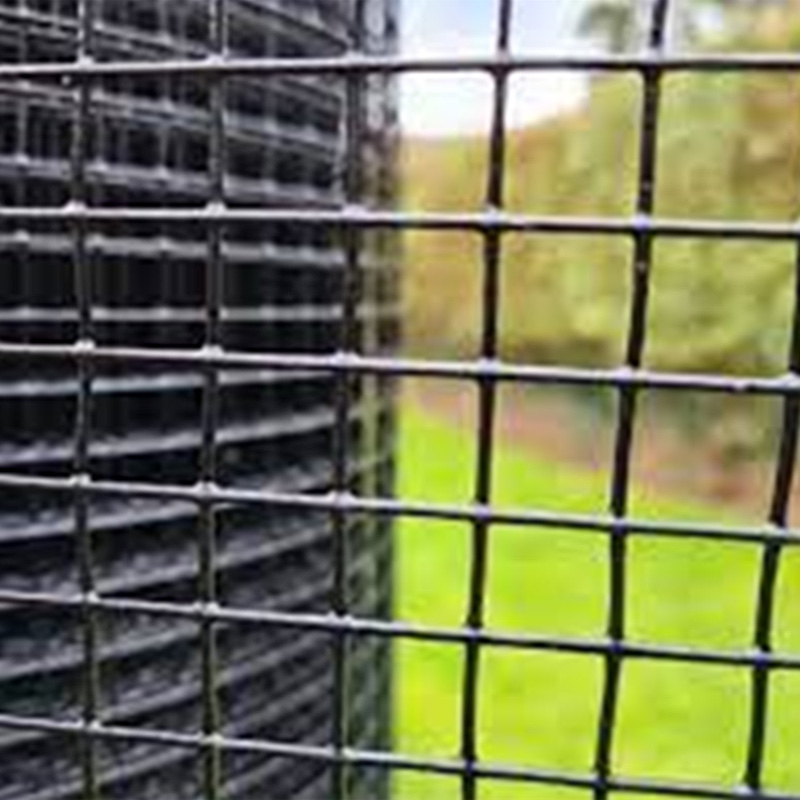

10 gauge 12 gauge black coated welded wire mesh fence

10 gauge and 12 gauge black coated welded wire mesh fences are robust fencing solutions made by welding low carbon steel wires at each intersection to form a sturdy grid. The 10 gauge 12 gauge welded fences are coated with black PVC (vinyl), which provides an additional layer of protection against rust and corrosion while giving the fence a sleek, modern appearance. The gauges (10 and 12) refer to the thickness of the iron wire, with 10 gauge being thicker and stronger than 12 gauge. The black coated welded wire fences are suitable for a variety of applications, including garden fencing, animal enclosures, and perimeter security.

Material:Q195/Q235 galvanized iron wire
Color:Green, Blue, Black, White,etc
Wire Gauge:0.5-3mm
Surface Treatment:PVC Coated
Hole Shape:Square or rectangular
Welding Type:PVC Coated Before/After Welding
10 gauge 12 gauge black coated welded wire mesh fence10 gauge 12 gauge black coated welded wire mesh fence

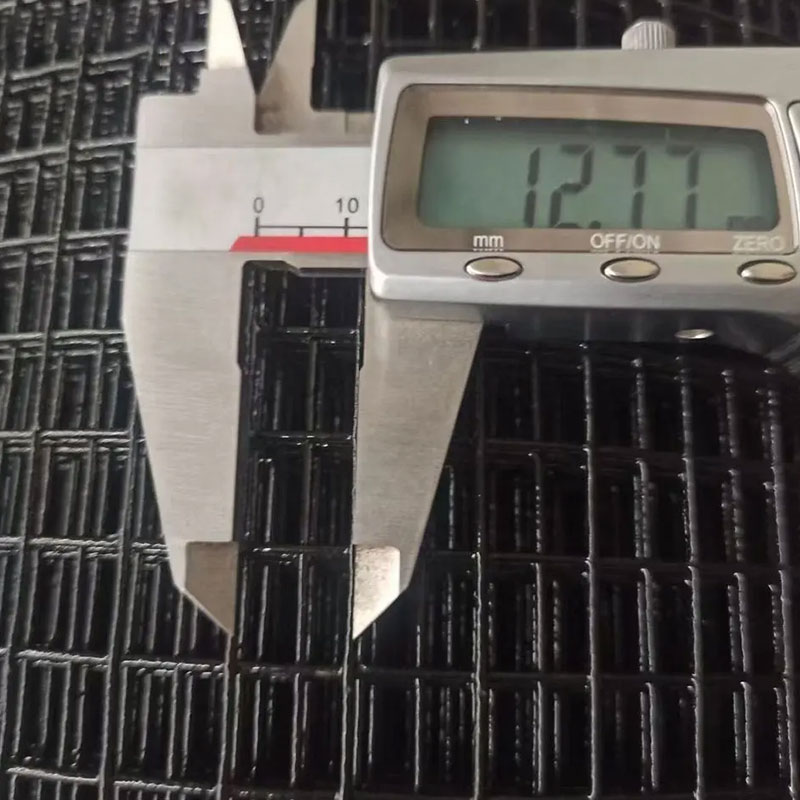

Size chart of black PVC coated welded wire mesh

The 10 gauge black welded wire fecne: Approximately 3.4 mm in diameter, thicker and stronger, ideal for heavy-duty applications.

The 12 gauge black coated welded wire mesh: Approximately 2.7 mm in diameter, slightly thinner but still very durable, suitable for medium-duty applications.

Mesh size
Wire Dia before & after PVC coat
MM
Inch
Before coat
After coat
6.4
1/4 inch
0.56 - 0.71
0.90 - 1.05
9.5
3/8 inch
0.64 - 1.07
1.00 - 1.52
12.7
1/2 inch
0.71 - 1.65
1.10 - 2.20
15.9
5/8 inch
0.81 - 1.65
1.22 - 2.30
19.1
3/4 inch
0.81 - 1.65
1.24 - 2.40
25.4 × 12.7
1 × 1/2 inch
0.81 - 1.65
1.24 - 2.42
25.4
1 inch
0.81 - 2.11
1.28 - 2.90
38.1
1½ inch
1.07 - 2.11
1.57 - 2.92
25.4 × 50.8
1 × 2 inch
1.47 - 2.11
2.00 - 2.95
50.8
2 inch
1.65 - 2.77
2.20 - 3.61
76.2
3 inch
1.90 - 3.50
2.50 - 4.36
101.6
4 inch
2.20 - 4.00
2.85 - 4.88
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc.

Features

Strength and Durability:

10 gauge black welded wire fence offers maximum strength for high-security applications.

12 gauge black welded wire mesh provides a balance of strength and flexibility for general use.

Corrosion Resistance:

The black vinyl coating protects the welded wire from rust and corrosion, making the black coated welded wire fence suitable for outdoor use and extending its lifespan.

Aesthetic Appeal:

The black coating gives the welded fence a sleek, modern look that enhances the visual appeal of any property.

Versatility:

Suitable for a wide range of applications, from garden and animal fencing to perimeter security and recreational areas.


Application

Residential Fencing: Often used for perimeter security around homes and gardens to keep in pets and children while deterring intruders.

Agricultural Use: Used on farms to contain livestock and protect crops from wildlife.

Construction Sites: Function as temporary fencing to secure construction sites, preventing unauthorized entry and ensuring safety.

Sports Facilities: Commonly seen around tennis courts, baseball fields, and other sports venues to protect against errant balls and ensure spectator safety.

Roadside Barriers: Utilized along highways and roadsides to control traffic flow and protect workers during roadwork.

Garden Supports: Used as supports for climbing plants and vines in residential gardens.
