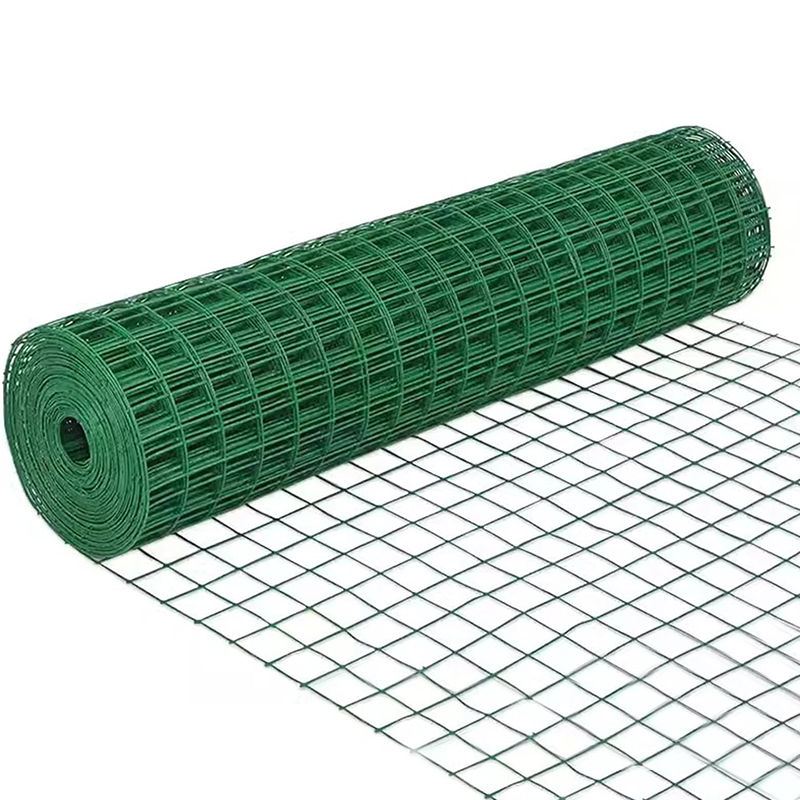

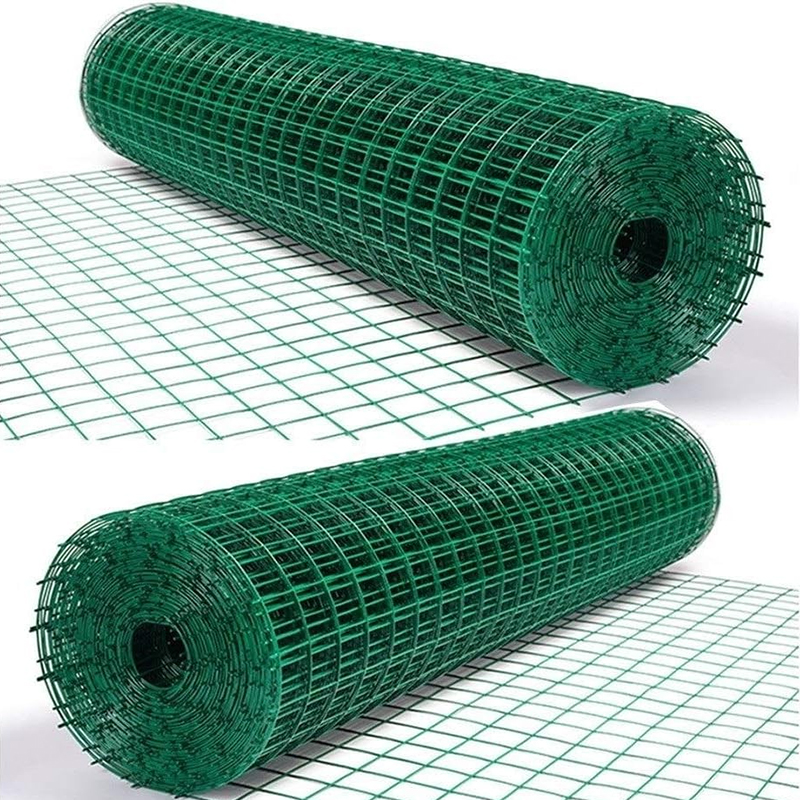

PVC coated welded wire mesh is a type of wire mesh that has been coated with polyvinyl chloride (PVC), which is a synthetic plastic polymer. The coating provides additional protection against corrosion, weathering, and wear.
Sunshine Fencing The welded wire mesh is created by welding together individual wires to form a strong and durable grid-like structure. The PVC coating is applied to the wire mesh after(or before) it has been welded, typically through a process called extrusion coating, where the PVC is melted and forced through a die onto the wire mesh.
Specification
1/2 inch hole PVC-coated welded wire mesh with 1/2-inch openings provide an optimal balance between durability and visibility, making the PVC welded wire fence suitable for various applications such as fencing, construction, and decorative purposes. The PVC coating enhances corrosion resistance, extends the lifespan of the mesh, and offers a smoother surface that is safer to handle and aesthetically pleasing. The PVC coated welded wire mesh is ideal for both indoor and outdoor use, providing a long-lasting and low-maintenance solution in a range of environments.
| Material: | Q195/Q235 galvanized iron wire |
| Color: | Green, Blue, Black, White,etc |
| Wire Gauge： | 0.5-3mm |
| Surface Treatment: | PVC Coated |
| Hole Shape: | Square or rectangular |
| Welding Type: | PVC Coated Before/After Welding |
 |  |
Size chart of PVC coated welded wire mesh
Mesh size | Wire Dia before & after PVC coat | |||
MM | Inch | Before coat | After coat | |
6.4 | 1/4 inch | 0.56 - 0.71 | 0.90 - 1.05 | |
9.5 | 3/8 inch | 0.64 - 1.07 | 1.00 - 1.52 | |
12.7 | 1/2 inch | 0.71 - 1.65 | 1.10 - 2.20 | |
15.9 | 5/8 inch | 0.81 - 1.65 | 1.22 - 2.30 | |
19.1 | 3/4 inch | 0.81 - 1.65 | 1.24 - 2.40 | |
25.4 × 12.7 | 1 × 1/2 inch | 0.81 - 1.65 | 1.24 - 2.42 | |
25.4 | 1 inch | 0.81 - 2.11 | 1.28 - 2.90 | |
38.1 | 1½ inch | 1.07 - 2.11 | 1.57 - 2.92 | |
25.4 × 50.8 | 1 × 2 inch | 1.47 - 2.11 | 2.00 - 2.95 | |
50.8 | 2 inch | 1.65 - 2.77 | 2.20 - 3.61 | |
76.2 | 3 inch | 1.90 - 3.50 | 2.50 - 4.36 | |
101.6 | 4 inch | 2.20 - 4.00 | 2.85 - 4.88 | |
Roll Width: 0.5m to 2.5m; Roll Length: 18m,25m,30m,etc. | ||||
1/2 Inch (12.7 mm) Openings: Provides a balanced solution for security and visibility.
Coating:
PVC Coating Over Galvanized Wire: Adds an extra layer of protection against rust, corrosion, and weathering.
Smooth Finish: The PVC coating provides a smooth, attractive finish that is available in various colors such as green, black, and white.
Durability:
Enhanced Longevity: The combination of galvanization and PVC coating significantly extends the lifespan of the PVC coated welded wire mesh.
Weather Resistance: The PVC coating makes the welded wire mesh resistant to harsh weather conditions, including rain, snow, and UV rays.
Safety:
Smooth Edges: The PVC coating covers sharp edges, reducing the risk of injury to animals and humans.
Aesthetic Appeal:
Color Options: Available in multiple colors to blend seamlessly with different environments, enhancing the visual appeal of the installation area.

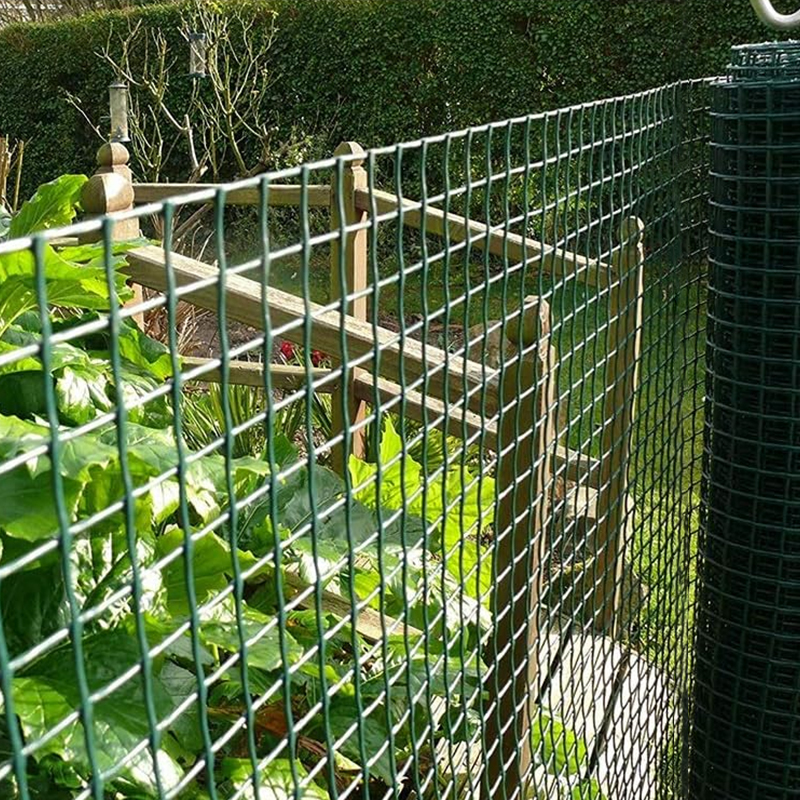

Fencing: For gardens, yards, and boundary lines.
Animal Enclosures: Such as chicken coops, rabbit hutches, and dog kennels.
Agriculture: For protecting crops or creating livestock pens.
Security: Used in window wells and other areas where a deterrent to intrusion is needed.
Construction: As reinforcement for concrete and other building materials.
Sunshine Fencing is a leading wire mesh manufacturer based in Shijiazhuang City, China, specializing in a broad range of wire mesh solutions. With over 20 years of experience, we are renowned for our innovative approach and high-quality fence products that cater to industries such as agriculture, construction, mining, and packaging. Our state-of-the-art factory, spanning 50,000 square meters, is equipped with modern technology and advanced equipment. We proudly export to over 100 countries, with annual sales exceeding $60 million. Sunshine Fencing provides over 200 wire mesh solutions and is dedicated to delivering dependable and competitive products in the metal fence and steel wire manufacturing sector. Sunshine Fencing has supplied many clients over the world. You can consult our wire experts for more detailed solutions.
