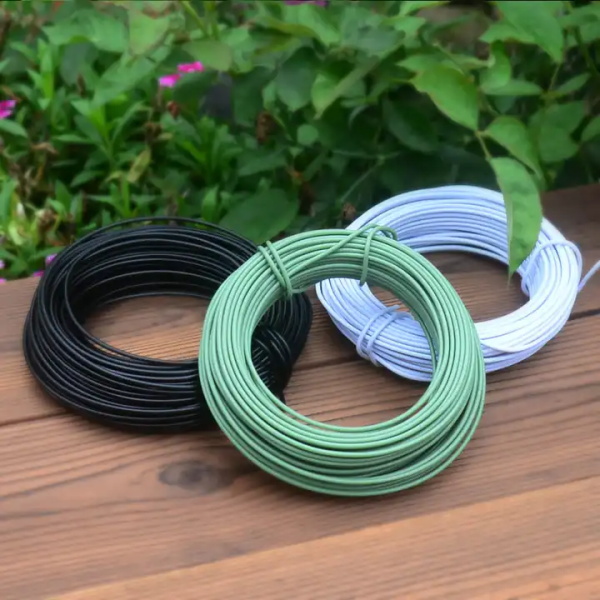

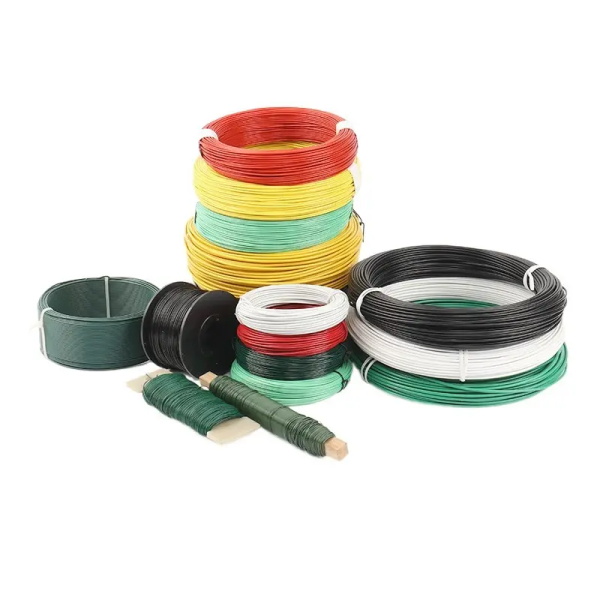

PVC coated iron wire is made of black iron wire, galvanized wire, copper wire, stainless steel wire, through deep processing so that the PVC and metal wire firmly bonded together. PVC coated iron wire is a versatile and durable option that provides enhanced protection and longevity compared to uncoated wire. Its resistance to corrosion and moisture makes the PVC coated iron wire suitable for a wide range of industries and applications.
Specification
Raw material before PVC coating:black annealed wire,iron wire,galvanized iron wire
Surface treatment:PVC coating
Color:green,white,blue,black,yellow,etc
Preparation: The iron wire is first cleaned to remove any impurities, ensuring a smooth surface for the PVC coating to adhere to effectively.
Heating: The iron wire is then heated to a temperature that allows the PVC coating to melt and flow smoothly over the wire surface.
Coating: PVC in powder form is then applied to the hot iron wire. The PVC melts and envelops the wire in a uniform layer.
Curing: The Q195/Q235 iron wire, now coated with a layer of molten PVC, is fed into a curing oven. Here, the PVC coating cures and hardens, forming a strong bond with the underlying iron wire.
Cooling: After curing, the iron wire is cooled, allowing the PVC coating to set and providing the final product with its characteristic appearance and texture.
Corrosion Resistance: One of the most notable features of PVC coated iron wire is its resistance to rust and corrosion. The PVC coating acts as a protective shield, preventing the iron wire from direct exposure to moisture and air. This makes PVC coated iron wire ideal for use in outdoor settings or in environments that are prone to humidity and moisture
Flexibility: Despite its strength, PVC coated iron wire is highly flexible. This allows for easy manipulation and shaping, which is particularly beneficial in applications like fencing, crafting, or creating animal enclosures.
Aesthetic Appeal: The PVC coating can be produced in a variety of colors, adding an aesthetic element to the wire. This is particularly beneficial for applications where the PVC coated iron wire is visible and contributes to the overall design.
Wire Gauge | SWG(mm) | BWG(mm) | Metric(mm) |
8 | 4.05 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | 4.00 |
10 | 3.25 | 3.40 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | 2.50 |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.84 | 0.90 |
21 | 0.81 | 0.81 | 0.80 |
22 | 0.71 | 0.71 | 0.70 |
Plastic inner and outer knitting, inner plastic outer hemp, carton, pallet
