Why Choose Galvanized Chain Link Fence for Green Slope Protection

1. Introduction

● Definition of green slope protection net

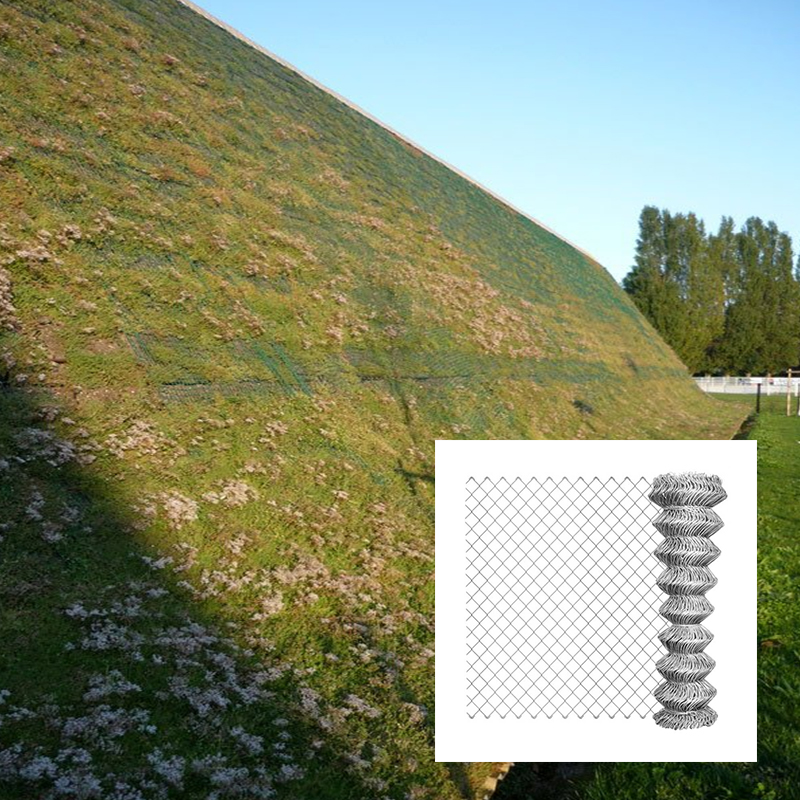

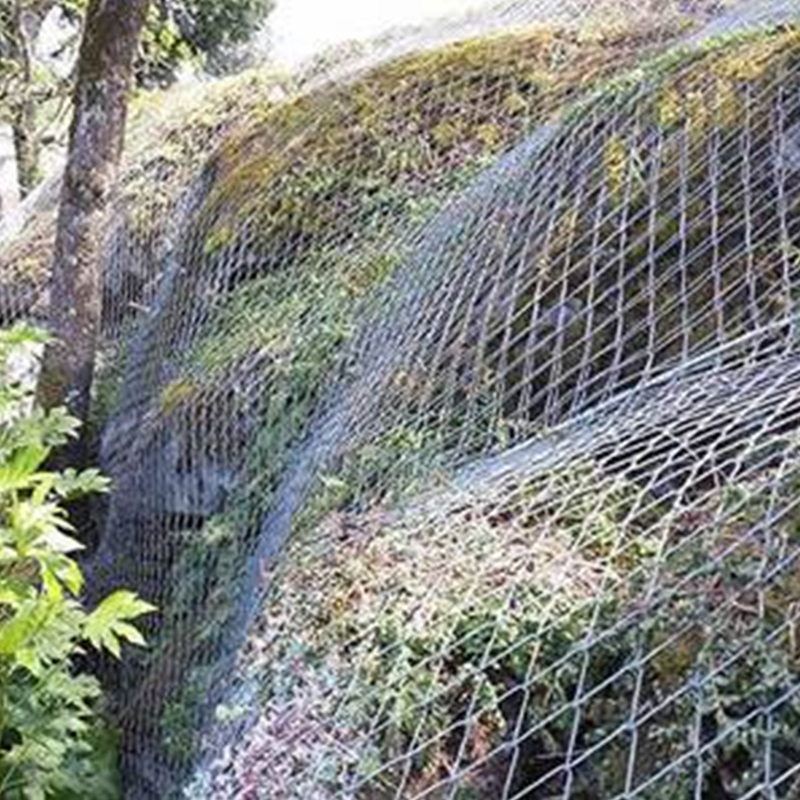

Green slope protection mesh is a type of flexible woven net primarily used for green slope protection, also known as chain-link fence.

Categorized by surface treatment, chain-link fence mainly falls into two types: galvanized chain-link fence and PVC-coated chain-link fence. Galvanized chain-link fence is commonly used as roadside barriers or for protecting and supporting sea walls, hillsides, bridges, reservoirs, and other civil engineering projects. Galvanized chain link fence is an excellent material for flood prevention and resistance.

● Galvanized chain link fence specs

Galvanized chain link fence, also known as galvanized chain mesh, is a type of woven wire mesh made from low carbon steel wires coated with zinc to prevent rust. Galvanized chain link fence is known for its durability, low maintenance, and cost-effectiveness,with specifications typically including:

Mesh sizes ranging from 30x30mm to 75x75mm.

Wire thicknesses from 1.80mm to 4.00mm.

Heights can be customized between 90cm to 600cm.

Roll lengths are commonly available in 10m, 15m, or 20m.

Do you know that why choose galvanized chain link fence as greening and slope protection net?

2. Key Features of Galvanized Chain Link Fence

A. Durability and Longevity

The galvanization process of galvanized chain link fence is a critical step that enhances the durability and corrosion resistance of the chain link fence. There are two main methods for galvanizing chain link fences: electro-galvanized chain link fence and hot-dipped galvanized chain link fence.

The electro galvanized chain link fence provides a smooth and uniform finish, which is appreciated for its aesthetic appeal. The coating thickness is typically thinner, ranging from 18-35g/m², providing moderate corrosion resistance suitable for mild environments.

In hot-dip galvanization, the low carbon steel is submerged in molten zinc at around 450°C, creating a thick and robust coating.Hot-dipped galvanized fences offer superior corrosion resistance and are ideal for harsh outdoor environments due to the zinc layer(35-280g/m²),therefor,for long-lasting protection in outdoor or severe conditions（green slope protection tasks）, hot-dipped galvanized chain link fence is recommended.

The galvanization process not only protects the chain link fence from the elements but also enhances its longevity. The galvanized chain link fence can last for 20 years or more, making it a cost-effective and long-lasting solution for various fencing needs.The zinc coating acts as a sacrificial anode, meaning the zinc layer will corrode before the underlying steel does, thus extending the life of the galvanized chain link fence.

B. Strength and Stability

◆The woven style of the galvanized chain link fence involves interlocking low carbon steel wires in a diamond pattern, creating a mesh that is both strong and flexible. Each iron wire is galvanized, meaning it has been coated with a layer of zinc to prevent rust and corrosion, ensuring durability and longevity. The weaving process allows the galvanized chain link fence to be easily stretched and installed on posts, providing a secure and resilient barrier.

◆The raw material of the galvanized chain link fence is galvanized iron wire, which inherently possesses a certain degree of flexibility and elasticity, making it resistant to breaking. Moreover, the tensile strength of galvanized iron wire is substantial, and its impact resistance is excellent. Therefore, the galvanized chain link fence is not easily damaged by external forces.

C. Environmental and Aesthetic Benefits

Galvanized chain link fences offer environmental benefits by being recyclable and reducing the need for frequent replacements due to their durability. Aesthetically, the blend seamlessly with surroundings, providing a clean, unobtrusive look while allowing visibility. The minimal maintenance requirements further enhance the eco-friendly and visually appealing attributes of galvanized chain link fence.

D. Installation and Maintenance

Installing the galvanized chain link fence involves digging post holes, setting up the fence posts, attaching the fabric, and securing it with tension bands. Maintenance is minimal; occasional inspections for damage and cleaning are recommended. Rust treatment may be necessary if the coating is compromised.

E. Size Customization

The iron wires used in the galvanized chain link fences can vary in wire thickness, typically from 1.2mm to 4.5mm, with the mesh openings ranging from 25mm to 100mm, although the 50x50mm size is quite popular.

For green slope protection, galvanized chain link fences can be customized in size to fit specific project requirements. The mesh size, wire diameter, and height can be tailored to ensure optimal coverage and stability for the slope. Smaller mesh sizes and thicker wire gauges provide enhanced strength and erosion control, while the diamond chain link fence height can be adjusted to match the slope's dimensions. Customization ensures a snug fit, preventing soil displacement and promoting vegetation growth. The galvanized coating protects against rust, ensuring longevity and minimal maintenance, making it a practical and efficient solution for environmentally-conscious slope stabilization.

Here is the size chart:

Summary

Galvanized chain link fence offers superior corrosion resistance due to its zinc coating, which protects against rust and extends the chain link fence's lifespan。The galvanized chain link fence is known for its high strength and rigidity, making it ideal for securing residential, commercial, and industrial properties.
