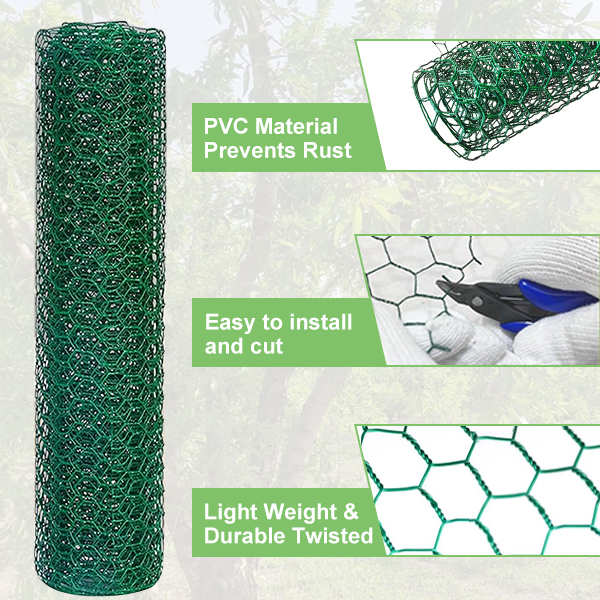

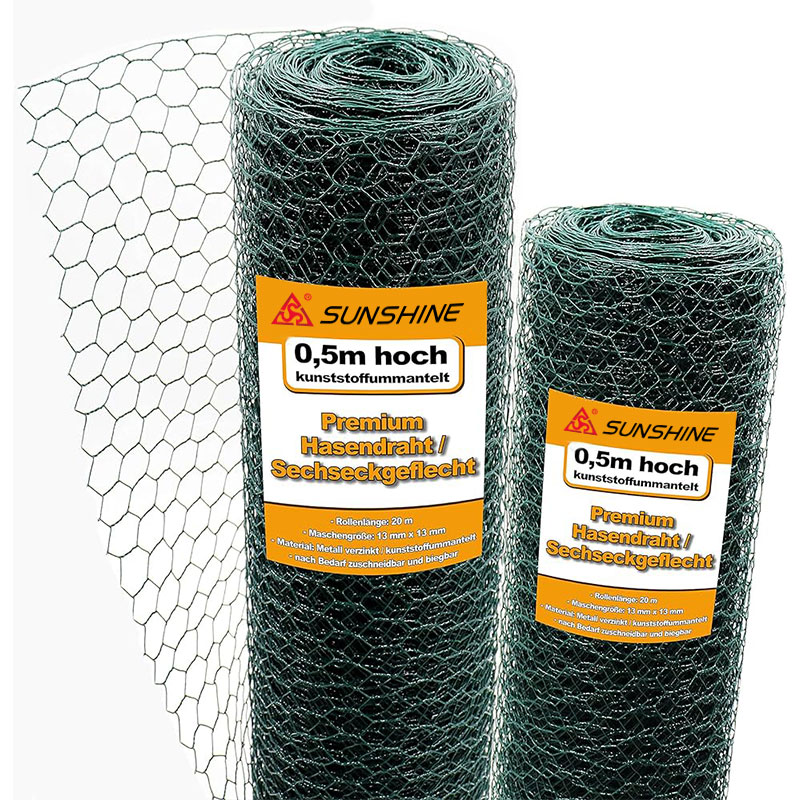

The PVC coated hexgonal wire mesh are made of high quality galvanized iron wire(Q195/Q235),and the vinyl layer of the hexagonal wire mesh enhances the rust and corrosion resistance of the hexagonal wire mesh, so that the PVC coated hexagonal wire mesh can be used outdoors for a long time.
Specification
Material: Black wire or electro-galvanized wire with PVC coating, stainless steel-wire
Weaving Type: Straight twist, reverse twist, double-direction twist.
Surface Treatment: Hot-dipped galvanized hexagonal wire mesh, Electro galvanized hexagonal wire mesh, PVC coated hexagonal wire mesh
Types Available: hot dipped galvanized before or after weaving;electro-galvanized before or after weaving；PVC coated hexagonal wire netting；stainless steel hexagonal wire mesh.
Characteristics: Firm structure, flat surface, corrosion-resisting and oxidation-resisting.
Application: Hexagonal wire netting is used for feeding chicken, ducks gooses, rabbits and the fence of zoo. Also used in machinery protection, fences for road railway, etc. It can be made into box to hold stones and sand to protect the bank, hillside, bridge and other related civil engineering against the flood.
Size Chart:
| Mesh (mm) | Mesh (inch) | Before/after coating-Before/after coating (mm/mm-mm/mm) |
| 13mm | 1/2" | 0.50/0.80-0.65/1.00 |
| 16mm | 5/8" | 0.50/0.80-0.65/1.00 |
| 19mm | 3/4" | 0.50/0.80-0.65/1.00 |
| 25mm | 1" | 0.55/0.85-1.00/1.40 |
| 30mm | 1-1/4" | 0.55/0.85-1.00/1.40 |
| 40mm | 1-1/2" | 0.55/0.85-1.00/1.40 |
| 50mm | 2" | 0.65/1.00-1.00/1.40 |
| 70mm | 3" | 1.00/1.40-1.60/2.00 |
Remarked: Besides those above mentioned specification, the others can be made according to customer's requirement.
 |  |
