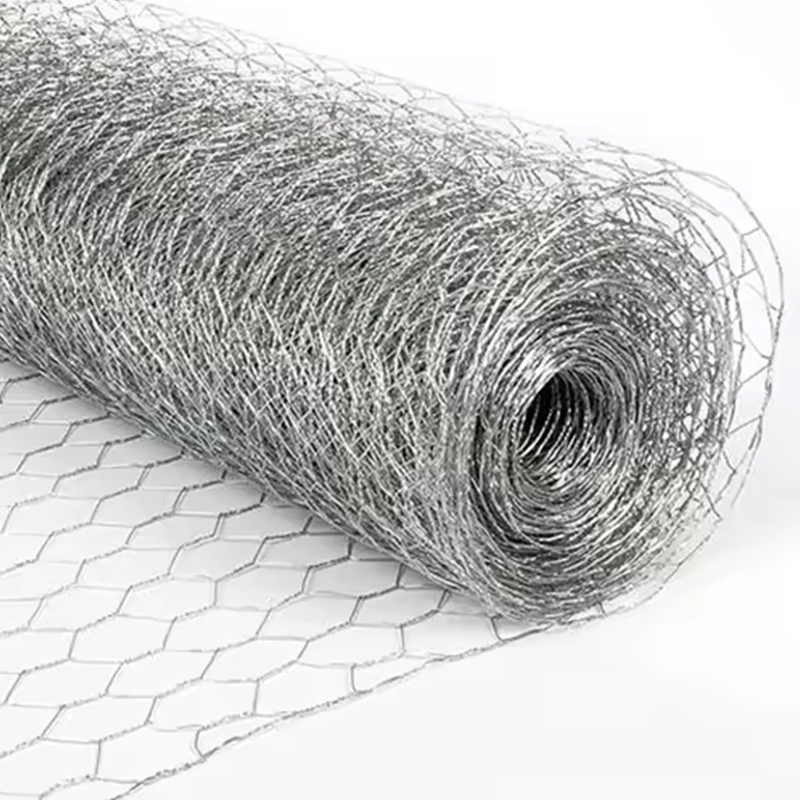

Hexagonal chicken wire mesh, also known as hex netting, is a strong low carbon steel hexagonal shape fencing used in poultry farming and other agricultural applications. Constructed from galvanized or PVC-coated low carbon steel wire, this hexagonal wire mesh features a hexagonal pattern that provides even and strong structural support.The advantages of the hexagonal wire mesh include high tensile strength, resistance to corrosion, and an optimal balance between cost and performance.
Additionally, the hexagonal wire mesh is available in various sizes and gauges, making it useful for different types of poultry and farming requirements.
Specification
Galvanized hexagonal wire mesh, recognized for its hexagonal-shaped openings, is crafted from low carbon steel wire that is then galvanized, a process that involves coating the iron wire（or iron mesh ） with zinc to enhance its corrosion resistance. This galvanized hexagonal wire mesh is available in a range of wire diameters, opening sizes, and can be customized to meet specific requirements.
The hexagonal manufacturing process including galvanized before weaving or galvanized after weaving.
The galvanization process including electro-galvanization and hot dipped galvanization.
Hot Dipped Galvanized Hexagonal Wire Mesh is made by immersing the iron wire in a bath of molten zinc, which coats the surface of the iron wire and creates a barrier against rust and corrosion.The hot dipped galvanized layer can reach up to 300g/m2) , providing excellent protection against environmental factors such as moisture, salt spray, and other corrosive substances.
Electro Galvanized Hexagonal Wire Mesh is made by electroplating a thin layer of zinc onto the surface of the iron wire using an electric current. The electroplating process creates a more uniform and controllable coating than hot dipping, allowing for precise control over the thickness and distribution of the zinc layer(usually 15-35g/m2).
Hole size | Wire diameter | Panel sizes | |
In inch | In mm | In mm | |
3/8'' | 9.52mm | 0.42mm-0.50mm | Width:0.5m-2.0m Length:25m,30m Other sizes can be made as request . |
1/2'' | 12.7mm | 0.38mm-0.80mm | |
5/8'' | 16mm | 0.38mm-1.0mm | |
3/4'' | 19mm | 0.38mm-1.2mm | |
1'' | 25.4mm | 0.38mm-1.2mm | |
5/4'' | 31mm | 0.55mm-1.2mm | |
3/2'' | 38.1mm | 0.55mm-1.4mm | |
2'' | 50.8mm | 0.55mm-1.5mm | |
3'' | 76.2mm | 0.65mm-1.5mm | |
4'' | 101.6mm | 1.2mm-2.0mm | |

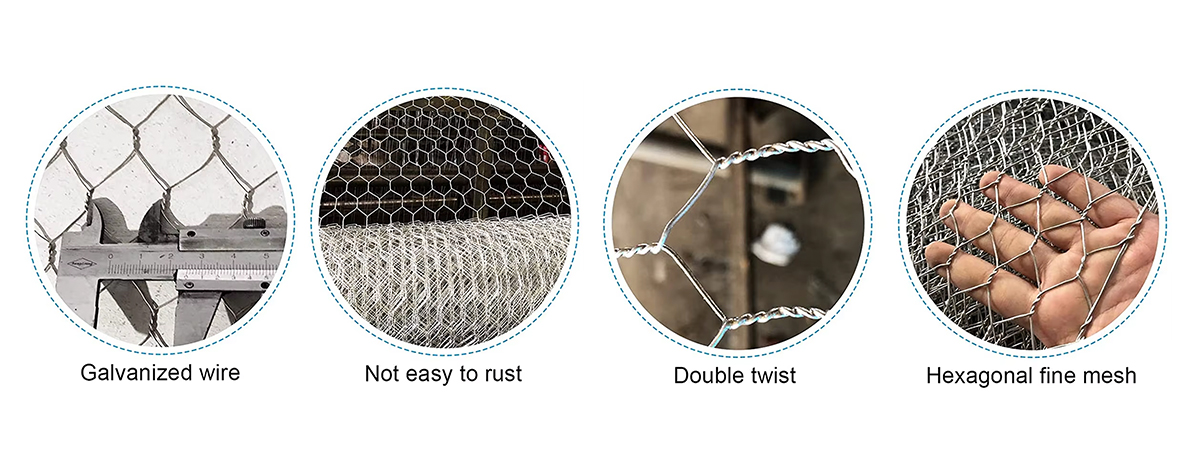

Durability: Galvanized hexagonal netting is extremely durable and long-lasting, making the gi hex netting an ideal choice for applications where strength and durability are critical.
Corrosion Resistance: The zinc coating on galvanized hexagonal netting provides excellent resistance to corrosion, even in harsh environments such as those with high humidity or salt spray.
Versatility: Galvanized hexagonal netting is available in a wide range of sizes and gauges, making the galvanized hexagonal wire mesh suitable for everything from animal enclosures and fencing to landscaping and construction projects.
Easy Installation: Galvanized hexagonal netting is easy to install and can be cut to size using regular hand tools, making it a convenient choice for daily DIY projects.
Normally each roll packed in water proof paper,and then packed into pallets.
