Hexagonal chicken wire mesh, also known as hex netting, is a strong low carbon steel hexagonal shape fencing used in poultry farming and other agricultural applications. Constructed from galvanized or PVC-coated low carbon steel wire, this hexagonal wire mesh features a hexagonal pattern that provides even and strong structural support.The advantages of the hexagonal wire mesh include high tensile strength, resistance to corrosion, and an optimal balance between cost and performance.
Additionally, the hexagonal wire mesh is available in various sizes and gauges, making it useful for different types of poultry and farming requirements.
Specification
| Product Name | hexagoanl wire mesh,hexagonal wire netting,hex wire netting,hexagonal chicken wire mesh,hex wire fencing |
| Raw Material | high quality Q195/Q235 low carbon steel wire |
| Woven Style | normal twist and reverse twist |
| Hole Shape | hexagonal |
| Surface Treatment | hot-dipped galvanized,electro-galvanized,PVC coated |

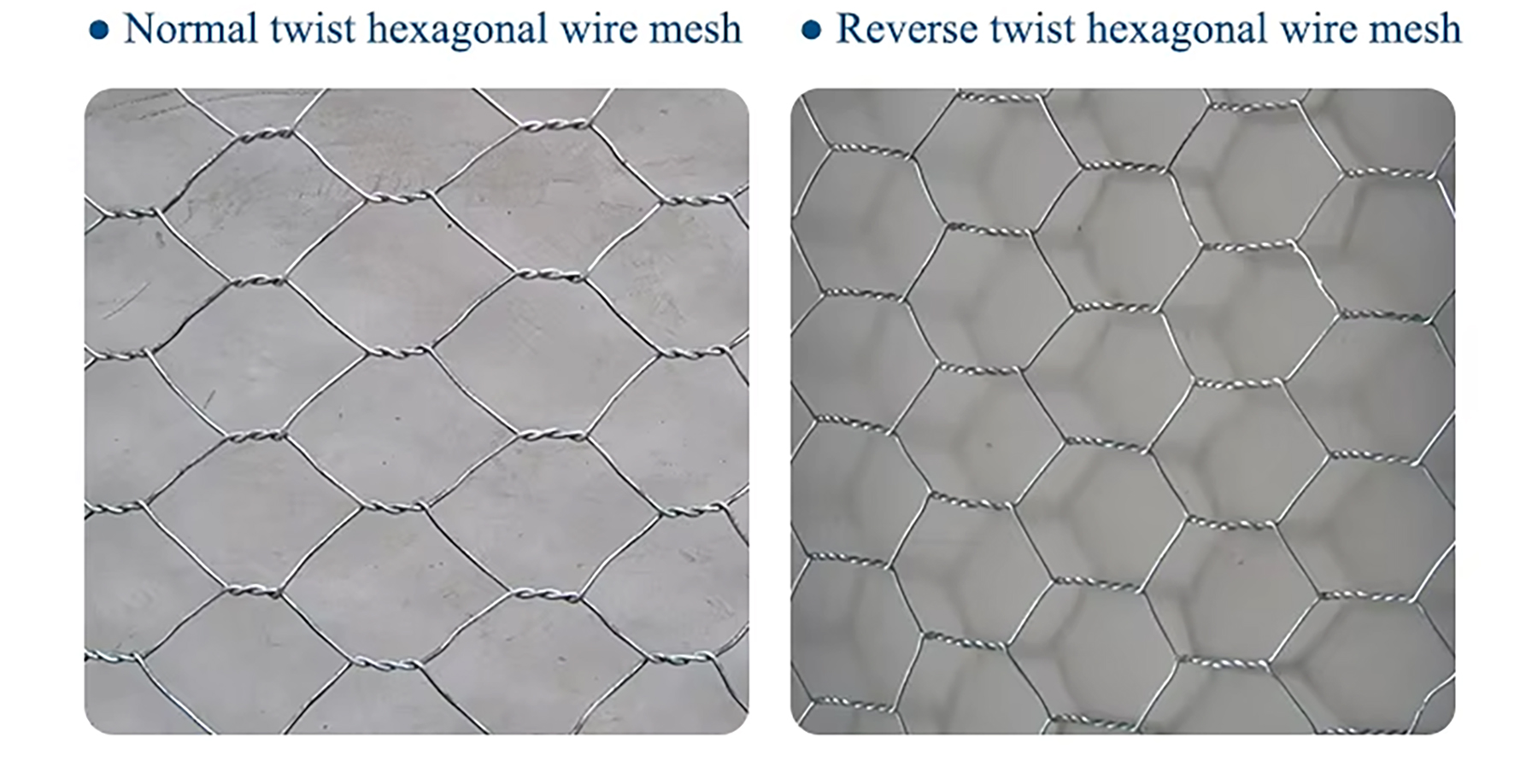

Hexagonal chicken wire mesh is a type of hexagonal low carbon steel wire netting that is machine-woven into a hexagonal pattern without the need for electric welding throughout the process. There are generally two methods of weaving the hex wire netting: one is called "normal twist" and the other is "reverse twist."
Normal Twist (Right-Hand Twist):
This term refers to the weaving technique where the low carbon steel wires are twisted in a clockwise direction as they are woven, creating a right-handed helix.
The normal twist is the most common method used in the production of hexagonal wire mesh and provides a secure and tight weave.
This nrmal twist woven style is typically stronger and offers better resistance to unraveling, making the normal twist hex wire netting suitable for applications where the mesh needs to withstand tension or pressure.
Reverse Twist (Left-Hand Twist):
The reverse twist indicates a counterclockwise weaving direction, resulting in a left-handed helix.
This method is less common but can be used to create a specific type of hexagonal mesh with different properties or appearance.
The reverse twist may offer a more open weave, which can be beneficial for applications requiring better air circulation or visibility through the hexagonal chicken wire mesh.
Hole size | Wire diameter | Panel sizes | |
In inch | In mm | In mm | |
3/8'' | 9.52mm | 0.42mm-0.50mm | Width:0.5m-2.0m Length:25m,30m Other sizes can be made as request . |
1/2'' | 12.7mm | 0.38mm-0.80mm | |
5/8'' | 16mm | 0.38mm-1.0mm | |
3/4'' | 19mm | 0.38mm-1.2mm | |
1'' | 25.4mm | 0.38mm-1.2mm | |
5/4'' | 31mm | 0.55mm-1.2mm | |
3/2'' | 38.1mm | 0.55mm-1.4mm | |
2'' | 50.8mm | 0.55mm-1.5mm | |
3'' | 76.2mm | 0.65mm-1.5mm | |
4'' | 101.6mm | 1.2mm-2.0mm | |
The 1/2 inch hexagonal chicken wire are popular in small family chicken farming.
Hexagonal Pattern: The hexagonal shaped hole which provides even distribution of stress and contributes to the overall strength and stability of the fence.
Durability: Made from galvanized or PVC-coated low carbon steel wire, the hexagonal wire mesh is resistant to rust and corrosion, making the hex netting suitable for outdoor use and in harsh weather conditions.
Flexibility: The woven design allows for some flexibility, which can be beneficial in uneven terrain or when used as a temporary barrier.
Visibility: The open weave provides good visibility through the hexagonal chicken fence, which is useful for both security and monitoring purposes.
Ventilation: The hexagonal chicken wire mesh allows for airflow, making the hex netting ideal for poultry enclosures where the animals need fresh air but protection from predators.
Easy Installation: The lightweight and flexible nature of the hexagonal chicken wire mesh makes it relatively easy to install, even around irregular shapes or structures.
Cost-Effectiveness: Compared to solid fencing materials, hexagonal chicken wire mesh can be a more economical option while still providing adequate protection.
Used as animal enclosures: As mentioned earlier, hexagonal wire mesh is widely used in the construction of animal enclosures such as chicken coops, rabbit cages, and bird aviaries. The small openings in the hexagonal chicken wire mesh prevent animals from escaping or being attacked by predators, while the open weave design allows for easy cleaning and maintenance.
Used as fencing: Hexagonal wire mesh can be used to create sturdy and durable fences for residential, agricultural, and industrial applications. The hexagonal wire netting is particularly well-suited for use as a perimeter fence around properties or as a partition between different areas of a larger property.
Used for construction: Hexagonal wire mesh can be used as a reinforcement material in concrete slabs, pavements, and foundations. Hex wire netting provides excellent strength and support while still allowing for good drainage and ventilation.
Used as gabions: Hexagonal wire mesh is used in gabions to control and direct water or flooding, as well as for retaining walls and channel liners
Normally each roll packed in water proof paper,and then packed into pallets.
