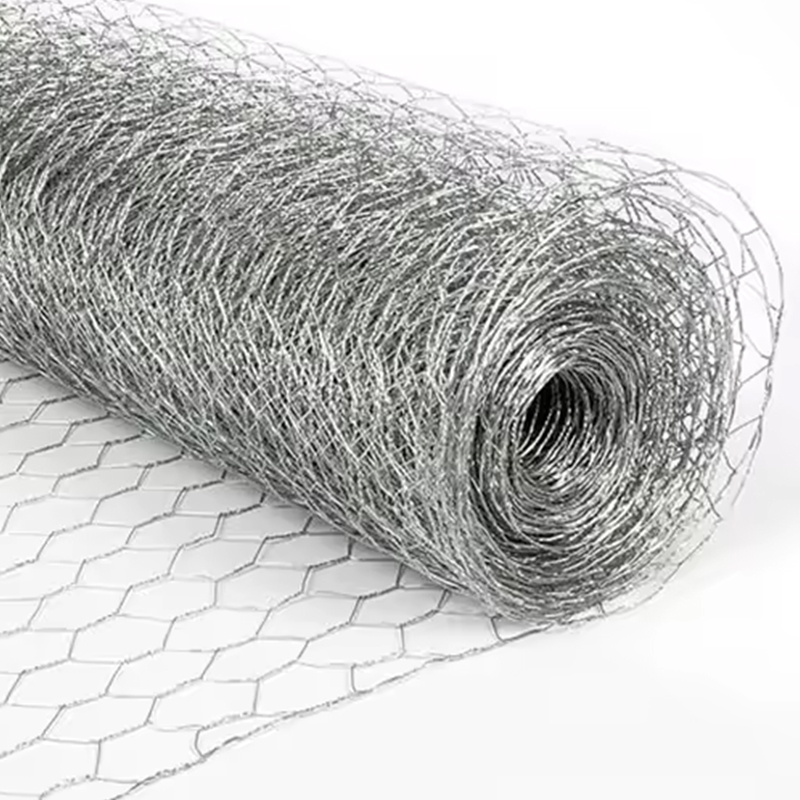

Chicken wire mesh, also known as hex netting, is a strong low carbon steel hexagonal shape fencing used in poultry farming and other agricultural applications. Constructed from galvanized or PVC-coated low carbon steel wire, this hexagonal wire mesh features a hexagonal pattern that provides even and strong structural support.The advantages of the hexagonal wire mesh include high tensile strength, resistance to corrosion, and an optimal balance between cost and performance.
Additionally, the hexagonal wire mesh is available in various sizes and gauges, making it useful for different types of poultry and farming requirements.
Specification
Hexagonal chicken wire mesh rolls, also known as poultry netting or chicken fencing, are specifically designed for enclosing and protecting poultry, such as chickens.The hexagonal chicken wire mesh are widely packed in small or large rolls.
Durability: Galvanized low carbon steel construction ensures long-lasting durability and resistance to weather elements.
Easy Installation: The chicken wire fence rolls are easy to unroll and install.
Visibility: The chicken wire mesh roll provides good visibility, allowing you to easily monitor the chickens within.
Flexibility: The ability to come in different widths and lengths makes it adaptable to various poultry enclosure needs.
Cost-Effective: A roll of chicken wire mesh is generally affordable, making the chicken fence roll a cost-effective solution for poultry fencing.

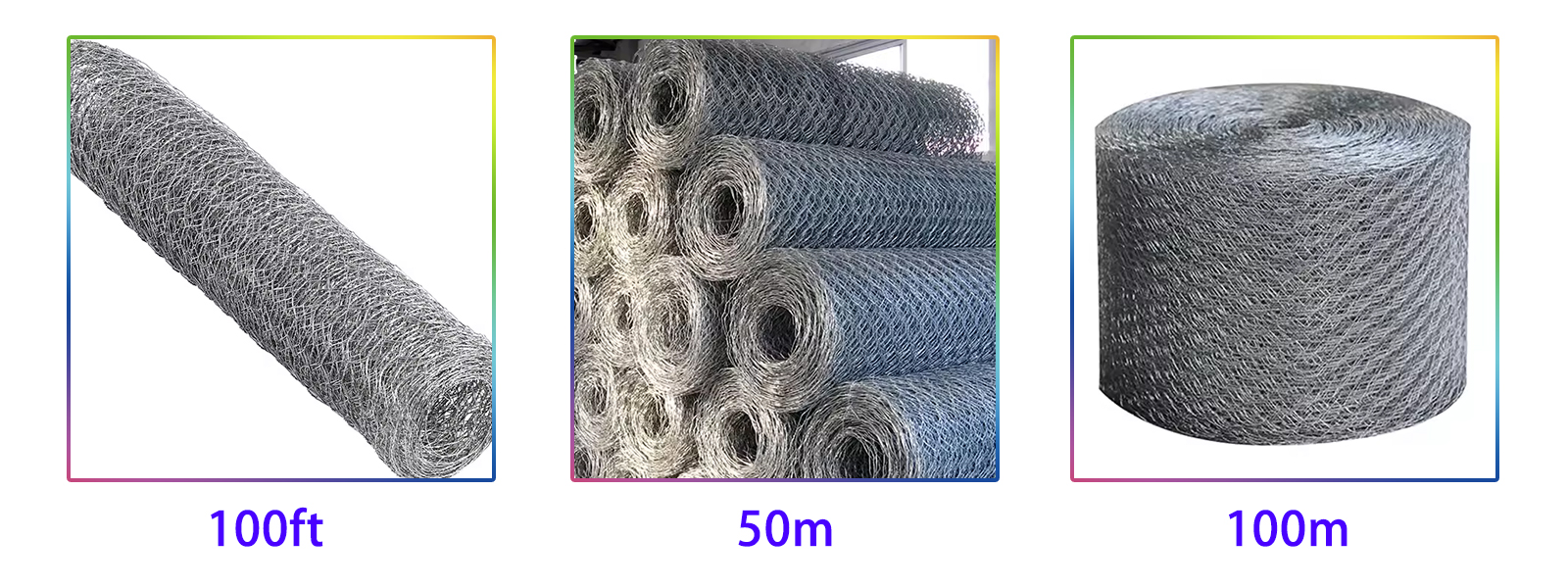

The popular rolls length are chicken wire 100m roll,chicken wire 50m roll,100 foot(30.48m) roll of chicken wire and 50 foot(15.24m) roll of chicken wire.
And the wire diameter size is range BWG19-BWG25.The hole size is from 3/8 inch to 4 inch.
The most popular hexagonal galvanized chicken wire sizes on the market are chicken wire 900mm wide x 50m long and chicken wire 1500mm wide x 100m long with 19 gauge or 22 guage.
The size chart is:
Galvanized hex. wire netting in reverse twist (In 30M roll,width of 0.5M---2.0M) | ||||
Mesh | Wire Gauge | Reinforcement | ||
Inch | mm | BWG | Widths (ft) | Strand |
1" | 25mm | 22,21,20,18 | 2' | 1 |
1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
1-1/2" | 40mm | 20,19,18 | 4' | 3 |
2" | 50mm | 20,19,18 | 5' | 4 |
3" | 75mm | 20,19,18 | 6' | 5 |
Galvanized hex. wire netting in normal twist (In 30M roll,width of 0.5M---2.0M) | ||
Mesh | Wire Gauge (BWG) | |
Inch | mm | |
3/8 | 10mm | 27,26,25,24,23,22,21 1/2 |
1/2" | 13mm | 25,24,23,22,21,20 |
5/8" | 16mm | 27,26,25,24,23,22 3/4 |
3/4" | 20mm | 25,24,23,22,21,20,19 |
1" | 25mm | 25,24,23,22,21,20,19,18 1-1/4 |
1-1/4" | 32mm | 22,21,20,19,18 |
1-1/2" | 40mm | 22,21,20,19,18,17 2 |
2" | 50mm | 22,21,20,19,18,17,16,15,14 |
3" | 75mm | 21,20,19,18,17,16,15,14 4 |
4" | 100mm | 17,16,15,14 |
