48in. x 50 ft,72in. x 150 ft galvanized hexagonal chicken wire mesh

Chicken wire mesh, also known as hex netting, is a strong low carbon steel hexagonal shape fencing used in poultry farming and other agricultural applications. Constructed from galvanized or PVC-coated low carbon steel wire, this hexagonal wire mesh features a hexagonal pattern that provides even and strong structural support.The advantages of the hexagonal wire mesh include high tensile strength, resistance to corrosion, and an optimal balance between cost and performance.

Additionally, the hexagonal wire mesh is available in various sizes and gauges, making it useful for different types of poultry and farming requirements.


Types of Hexagonal Wire Mesh


Specification

Galvanized chicken wire, also known as poultry netting, galvanized hexagonal chicken netting,is a strong and flexible mesh used for various applications, particularly in poultry farming. Made from low carbon steel wire and coated with zinc through either electro-galvanization or hot-dipped galvanization, the galvanized chicken wire mesh is resistant to rust and corrosion, ensuring a long service life.

Specifications of galvanized chicken wire:

Material: Typically low carbon steel wire (q195/q235)

Woven Types: Available in normal twist and reverse twist for added stability.

Manufacturing process: Galvanized before weaving or galvanized after weaving.

Galvanized process: The electro galvanization provide a uniform surface and the zinc coating weight for electro-galvanized chicken mesh is 15-35 grams per square meter.The zinc coating weight for hot-dip galvanized chicken wire is 35-200 grams per square meter, with a thicker zinc layer that offers better rust and corrosion resistance.

Mesh Sizes: Range from 13 mm to 100 mm, allowing customization based on the required application.

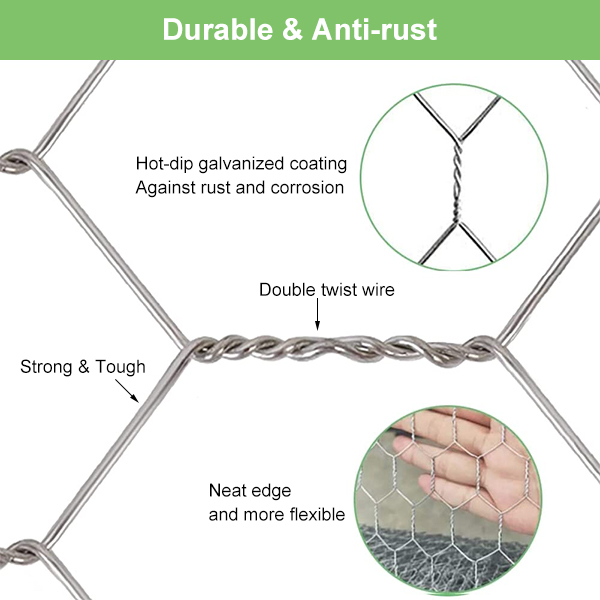

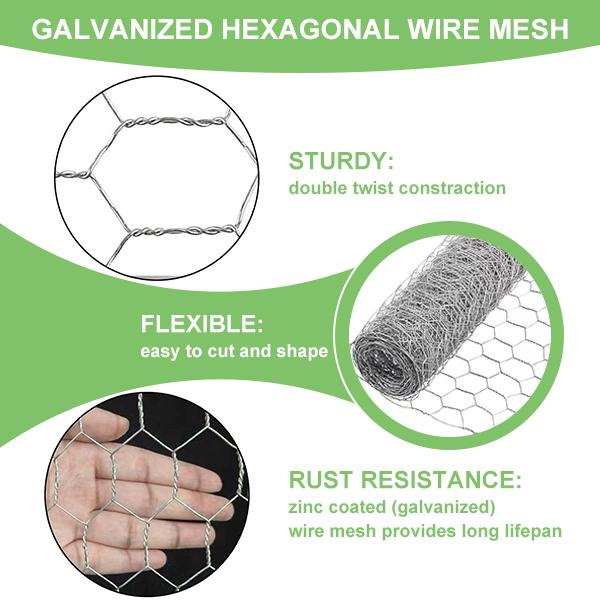

Key Features of Galvanized Chicken Wire:

Corrosion Resistance: The zinc coating protects the chicken wire mesh from environmental factors, making the galvanized chicken wire mesh suitable for outdoor use.

Durability: High tensile strength of the low carbon steel galvanized chicken wire mesh coupled with galvanization ensures the chicken wire's long life.

Flexibility: The thin and flexible nature of the galvanized chiken wire mesh allows easy handling and shaping to fit various configurations.

Safety: The small hexagonal openings are designed to keep poultry safe and prevent the entry of small predators.

Versatility: Besides poultry enclosures, the galvanized chicken wire mesh can be used for garden protection, compost bins, and even as fencing for zoos.

48in. x50 ft,72in. x150 ft galvanized hexagonal chicken wire mesh48in. x50 ft,72in. x150 ft galvanized hexagonal chicken wire mesh

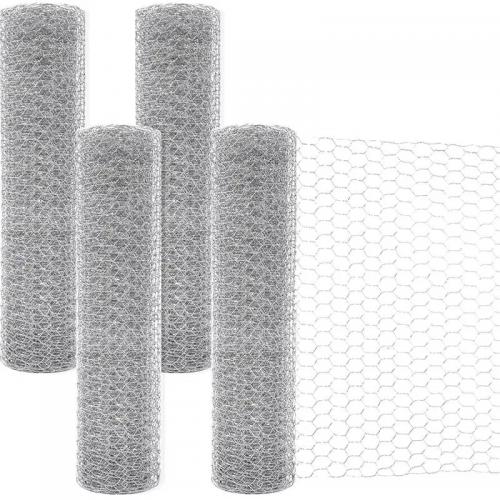

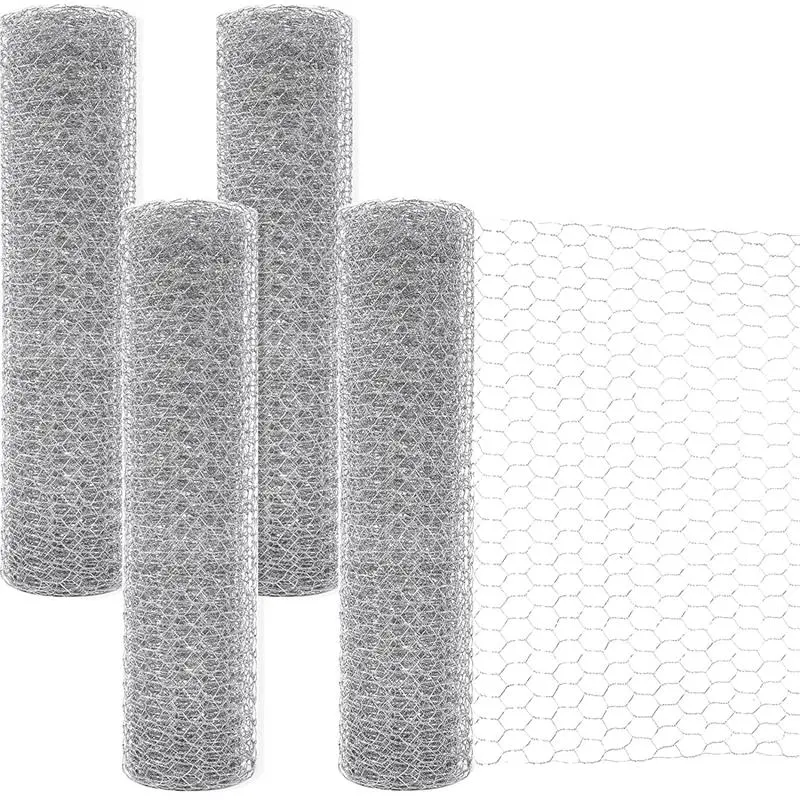

Size of galvanized chicken wire roll:

The size of galvanized chicken wire rolls including wire diameter,wire mesh size,width and length of the galvanized chicken wire mesh rolls.

The widely used galvanized chicken wire rolls width and length are:

72inch x 150 chicken wire,chicken wire 48in. x 150ft,3ft x 150 chicken wire,4 ft x 150 ft chicken wire,chicken wire 6ft x 150ft,chicken wire 24inch x 150,36inch x 150 chicken wire.

chicken wire 48inch x 50ft,chicken wire 6 ft by 50 ft,5 ft x 50 ft chicken wire,4 ft by 50 ft chicken wire,chicken wire 3 ft by 50 ft,chicken wire 2ft x 50 ft,chicken wire 24in. x 50ft,chicken wire 72inch x 50ft.

Hole size
Wire diameter
Panel sizes
In inch
In mm
In mm

3/8''
9.52mm
0.42mm-0.50mm




Width:0.5m-2.0m
Length:25m,30m

Other sizes can be made as request .
1/2''
12.7mm
0.38mm-0.80mm
5/8''
16mm
0.38mm-1.0mm
3/4''
19mm
0.38mm-1.2mm
1''
25.4mm
0.38mm-1.2mm
5/4''
31mm
0.55mm-1.2mm
3/2''
38.1mm
0.55mm-1.4mm
2''
50.8mm
0.55mm-1.5mm
3''
76.2mm
0.65mm-1.5mm
4''
101.6mm
1.2mm-2.0mm
