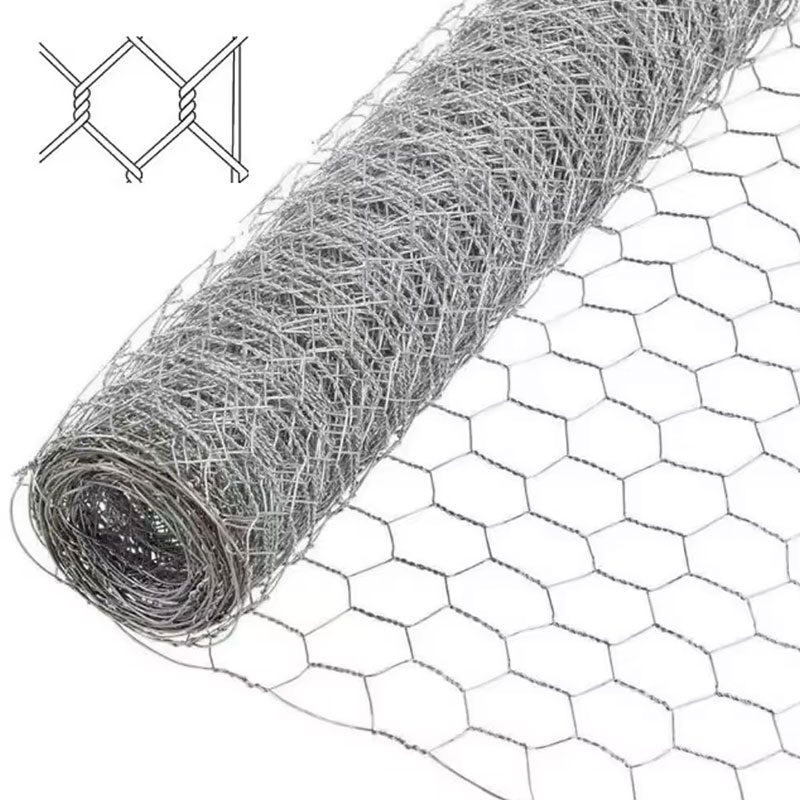

Chicken wire mesh, also known as hex netting, is a strong low carbon steel hexagonal shape fencing used in poultry farming and other agricultural applications. Constructed from galvanized or PVC-coated low carbon steel wire, this hexagonal wire mesh features a hexagonal pattern that provides even and strong structural support.The advantages of the hexagonal wire mesh include high tensile strength, resistance to corrosion, and an optimal balance between cost and performance.
Additionally, the hexagonal wire mesh is available in various sizes and gauges, making it useful for different types of poultry and farming requirements.
Specification
Galvanised chicken wire mesh is a type of hexagonal wire mesh fencing commonly used in agricultural, gardening applications. The term "galvanized" refers to the process of coating the iron wire(Q195/Q235） mesh with a layer of zinc through hot-dip galvanization or electro-galvanization.
The smaller mesh size is ideal for keeping out smaller predators and pests, such as snakes and rats. For example,the 10mm chicken wire mesh is often used in applications where maximum protection is needed, such as in baby chick enclosures or garden fencing to protect plants from small animals.And the large mesh size chicken wire mesh is typically used for larger poultry and general farm applications.

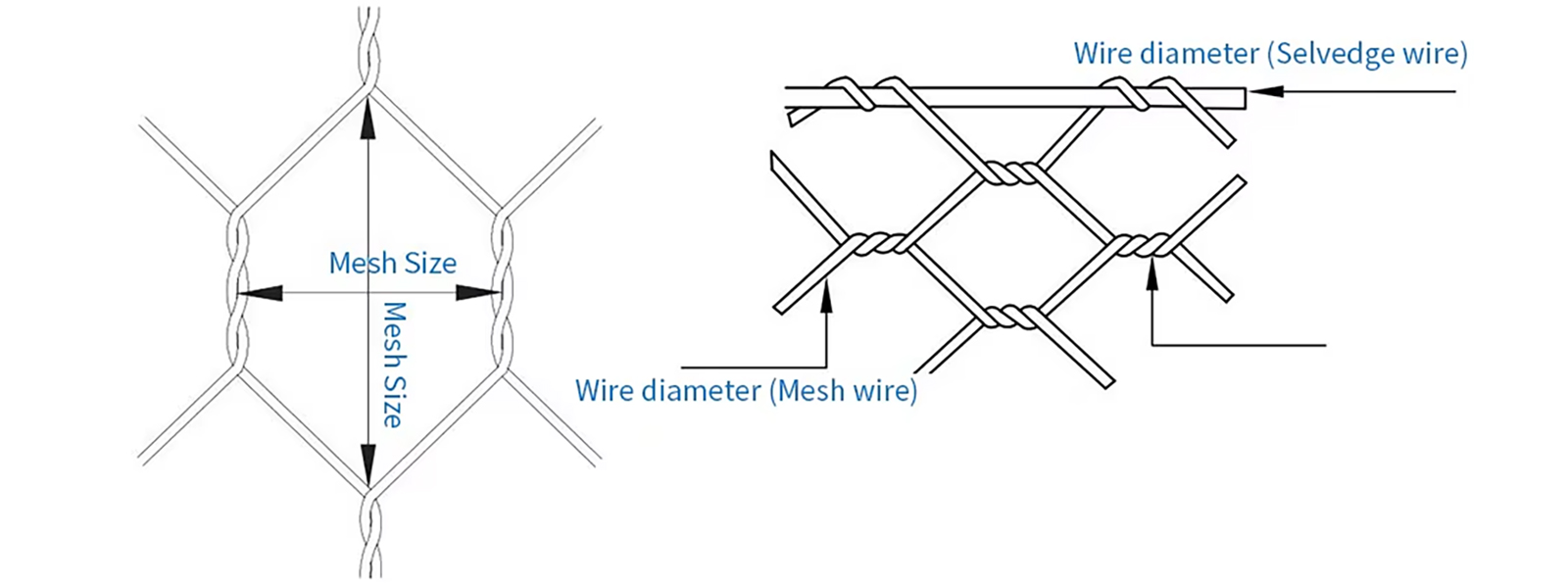

Here is the size chart of the galvanized chicken wire netting:
Opening Size | Wire Gauge | Width Per Roll | |||
Inch | mm | BWG | mm | Feet | Meter |
3/8" | 10 | BWG 27-23 | 0.41-0.64 | 1'-6' | 0.1-2m |
1/2" | 13 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
5/8" | 16 | BWG 27-22 | 0.41-0.71 | 1'-6' | 0.1-2m |
3/4" | 19 | BWG 25-19 | 0.51-1.06 | 1'-6' | 0.1-2m |
1" | 25 | BWG 25-18 | 0.51-1.24 | 1'-6' | 0.1-2m |
1 1/4'' | 31 | BWG 24-18 | 0.56-1.24 | 1'-6' | 0.2-2m |
1 1/2" | 40 | BWG 23-16 | 0.64-1.65 | 1'-6' | 0.2-2m |
2" | 51 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
2 1/2’’ | 65 | BWG 22-14 | 0.71-2.11 | 1'-6' | 0.2-2m |
3" | 76 | BWG 21-14 | 0.81-2.11 | 1'-6' | 0.3-2m |
4" | 100 | BWG 20-12 | 0.89-2.80 | 1'-6' | 0.5-2m |
Corrosion Resistance: The zinc layer protects the low carbon steel wires from rust and other forms of corrosion, extending the iron chicken wire mesh's lifespan, especially in outdoor environments where it is exposed to moisture and elements.
Enhanced Durability: Zinc coating adds durability to the iron chicken wire mesh, enabling the GI chicken wire mesh to withstand harsh weather conditions and resist damage from general wear and tear, making it suitable for long-term use.
Strength Maintenance: The galvanization process does not compromise the structural strength of the iron wire, ensuring that the galvanized chicken wire mesh retains its resilience and effectiveness as a barrier or enclosure.
Animal Safety: The smooth finish provided by the zinc coating reduces the risk of injury to animals that may come into contact with the fencing, making the galvanized chicken wire mesh safer for use in animal enclosures.
