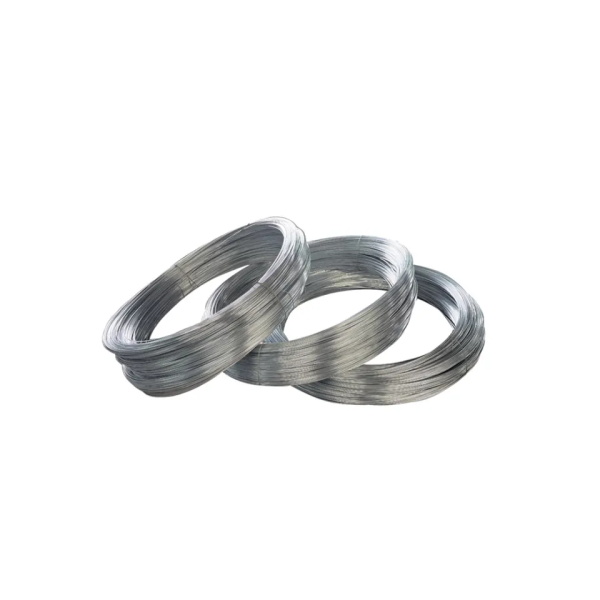

High tensile galvanized steel wire manufacturers

Galvanized steel wire is a type of steel wire that has been coated with zinc to prevent rust and corrosion. The zinc forms a protective layer on the steel, extending its lifespan and making the galvanized steel wire suitable for outdoor use and in corrosive environments. Galvanized steel wire is commonly used in construction, fencing, and various industrial applications due to its durability and cost-effectiveness.

Inquire Now Next Product

Specification

Product name	Galvanized steel wire,galvanized high carbon steel wire

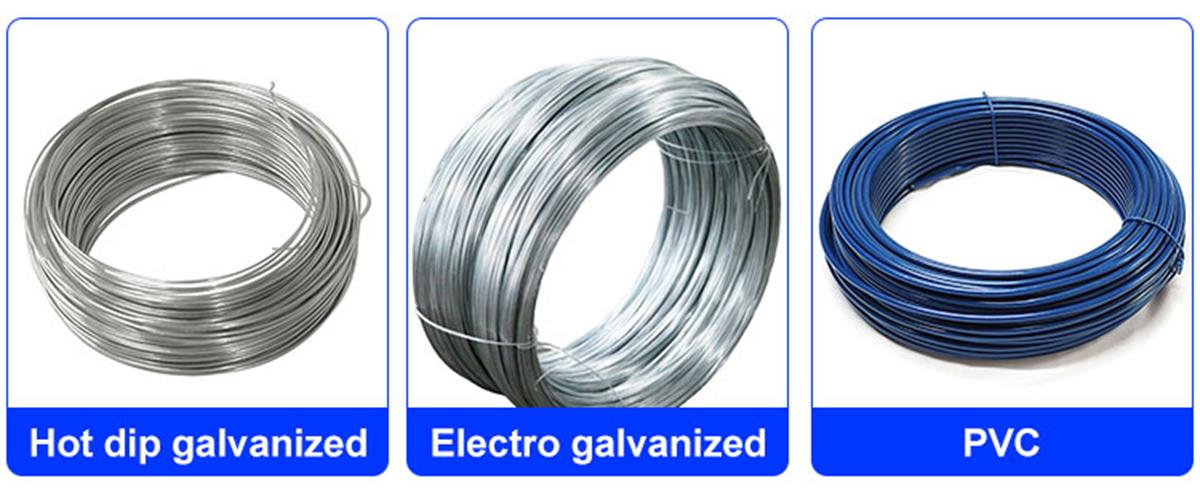

Surface treatment	Hot dipped galvanized/electro-galvanized
Material	high quality steel wire(#45)
Color	Silver
Packing	Plastic inner and outer knitting, inner plastic outer hemp, carton, pallet

High tensile galvanized steel wire manufacturers

Features:

Corrosion resistance: The zinc coating acts as a sacrificial anode, protecting the steel from corrosion and extending its lifespan, especially in outdoor environments or areas with high moisture.
Cost-effectiveness: Compared to stainless steel, galvanized steel wire is generally less expensive while still offering good corrosion resistance, making it a more economical choice for many applications.
Strength and durability: The steel core retains the tensile strength of steel, ensuring that the wire is strong and durable, suitable for load-bearing and structural applications.

Size chart:

No.	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20
