Galvanized manufacturing process iron wires

Galvanized iron wire is a type of binding wire that has been coated with zinc to resist corrosion and rust. The process of galvanization(electro-galvanized,hot dipped galvanized) involves creating a protective layer on the surface. This makes the galvanized iron wire suitable for outdoor use and in environments where moisture and other corrosive elements are present. The galvanized iron wire is commonly used in fencing, binding, and construction reinforcement due to its durability and cost-effectiveness compared to stainless steel alternatives.

Inquire Now Next Product

Specification

Galvanized iron wire is a type of low carbon steel wire that is made from iron9Q195/Q235） and coated with a protective layer of zinc to prevent rusting and corrosion. The process of applying this zinc layer is known as galvanization.

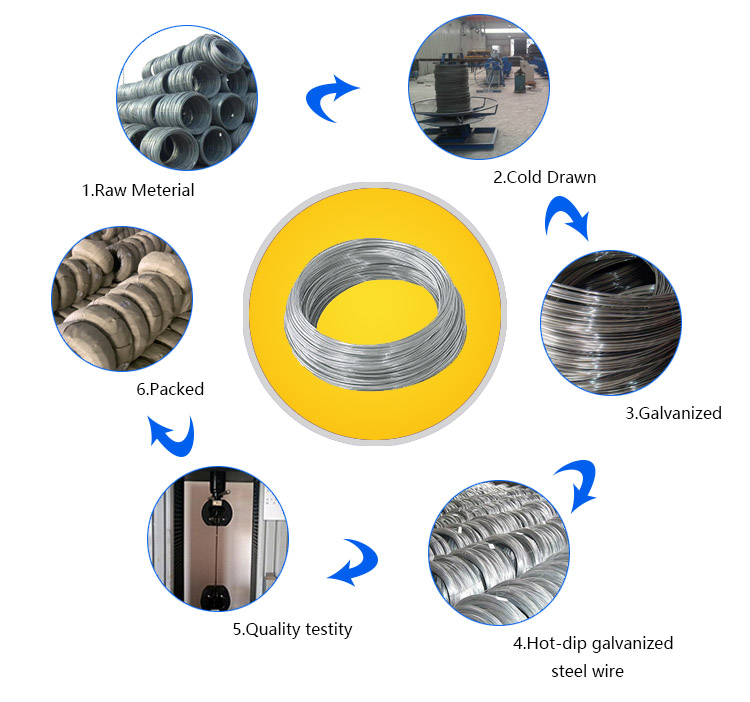

The galvanization process involves dipping the iron wire into a molten bath of zinc. This results in a chemical reaction that bonds the zinc to the iron, creating a durable and resistant outer layer.

The surface of electro-galvanized iron wire is smoother, but the zinc coating is 15-20g/㎡. In contrast, hot-dip galvanized iron wire has a zinc coating of 50-60g/㎡. With a thicker layer of zinc on the surface, hot-dip galvanized iron wire is less susceptible to rust.

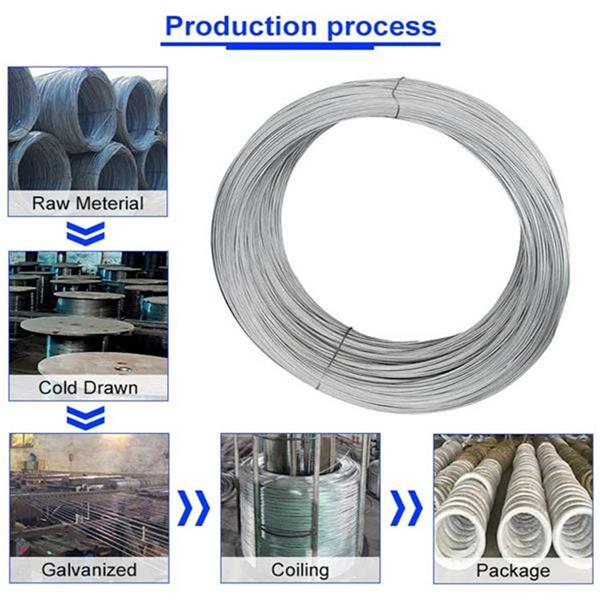

Galvanized manufacturing process iron wires

Features:

Corrosion Resistance: The primary advantage of galvanized iron wire is its resistance to rust and corrosion. The zinc coating protects the underlying iron from the elements, which extends the galvanized iron wire's lifespan and makes the galvanized iron wire suitable for outdoor use.
Cost-Effective: Galvanizing iron wire is a cost-effective method of preventing corrosion. The galvanized iron wire is less expensive than other methods such as stainless steel and offers a long-lasting solution.
Versatility: Galvanized iron wire is versatile and can be used in a wide range of applications, including construction, agriculture, fencing, cable reinforcement, and more.

Size chart:

No.	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20
